Plastic Feedthrough Data Connectors in XLR shell
- Jump down to
- BNC
- DisplayPort
- HDMI
- Optical
- RCA
- RJ9 / RJ10 / RJ22
- RJ11 / RJ14
- RJ12
- RJ45
- Two-wire
- USB 2
- USB 3
- USB-C
- Dual USB
- Blanks
- Dust Covers
- Please also see our
- feedthrough connectors
- XLR audio and XLR format connectors
- USB connectors
BNC
BNC 50 Ω. Black plastic frame.
Universal dust cap CP30285 is suitable for BNC models.
- CP303090 3.5 mm ⌀ countersunk holes.
- CP303090X 2.5 mm ⌀ plain holes.
- CP303090 3.5 mm ⌀ countersunk holes.
BNC 75 Ω. Black plastic frame.
Universal dust cap CP30285 is suitable for BNC models.
- CP303095 3.5 mm ⌀ countersunk holes.
- CP303095X 2.5 mm ⌀ plain holes.
- CP303095 3.5 mm ⌀ countersunk holes.
BNC 75 Ω, 12 GHz, gold-plated. Black plastic frame.
Universal dust cap CP30285 is suitable for BNC models.
- CP303112G 3.5 mm ⌀ countersunk holes.
- CP303112GX 2.5 mm ⌀ plain holes.
- CP303112G 3.5 mm ⌀ countersunk holes.
BNC 75 Ω, 12 GHz, gold-plated insert.
- CP303112GSA1.
- Also known as MP-CP303112GSA1. Where to Buy
- CP303112GSA1.
DisplayPort
DisplayPort v.2.0, horizontal, female to female, nickel-plated iron shell with gold-plated, copper contacts. Black plastic frame.
DisplayPort to DisplayPort cables are available in 1m and 2m lengths.
- CP30233 3.5 mm ⌀ countersunk holes.
- CP30233X 2.5 mm ⌀ plain holes.
- CP30233 3.5 mm ⌀ countersunk holes.
Mini DisplayPort, horizontal, female to female, nickel-plated iron shell with gold-plated, copper contacts. Black plastic frame.
DisplayPort to mini DisplayPort cables are available in 1m and 2m lengths.
- CP30202 3.5 mm ⌀ countersunk holes.
- CP30202X 2.5 mm ⌀ plain holes.
- CP30202 3.5 mm ⌀ countersunk holes.
HDMI
HDMI 4K female to HDMI 4K female, Type-A, vertical, gold-plated shell and contacts. Black plastic frame.
There is also a right-angled version.
- CP30200G 3.5 mm ⌀ countersunk holes.
- CP30200GX 2.5 mm ⌀ plain holes.
- CP30200G 3.5 mm ⌀ countersunk holes.
HDMI 4K female to HDMI 4K female, Type-A, vertical, gold-plated shell and contacts. White plastic frame.
- CP30200GW 3.5 mm ⌀ countersunk holes.
- CP30200GXW 2.5 mm ⌀ plain holes.
- CP30200GW 3.5 mm ⌀ countersunk holes.
HDMI 8K female to HDMI 8K female, Type-A, diagonal, gold-plated shell and contacts. Black plastic frame.
Shielded HDMI 2.1 supporting 7680 × 4320 at 60 Hz with HDR video support.
- CP30288 3.5 mm ⌀ countersunk holes.
- CP30288X 2.5 mm ⌀ plain holes.
- CP30288 3.5 mm ⌀ countersunk holes.
Optical Fibre Fiber
FC optical fibre, fiber, integral dust cover, nickel-plated contacts. Black plastic frame.
With a slot width and stock measure of 2.2 mm this should be suitable for either FC/PC or FC/APC (wide type N or narrow type R) standards for key widths.
Fibre Fiber optic connector cleaner pen tool available.
- CP30219 3.5 mm ⌀ countersunk holes.
- CP30219X 2.5 mm ⌀ plain holes.
- CP30219 3.5 mm ⌀ countersunk holes.
LC Duplex MM optical fibre, fiber, integral dust cover, ceramic sleeve. Black plastic frame.
Fibre Fiber optic connector cleaner pen tool available.
- CP30214 3.5 mm ⌀ countersunk holes.
- CP30214X 2.5 mm ⌀ plain holes.
- CP30214 3.5 mm ⌀ countersunk holes.
LC Duplex SM optical fibre, fiber, integral dust cover, ceramic sleeve. Black plastic frame.
Fibre Fiber optic connector cleaner pen tool available.
- CP30213 3.5 mm ⌀ countersunk holes.
- CP30213X 2.5 mm ⌀ plain holes.
- CP30213 3.5 mm ⌀ countersunk holes.
SC Simplex MM optical fibre, fiber, integral dust cover, ceramic sleeve. Black plastic frame.
Fibre Fiber optic connector cleaner pen tool available.
- CP30216 3.5 mm ⌀ countersunk holes.
- CP30216X 2.5 mm ⌀ plain holes.
- CP30216 3.5 mm ⌀ countersunk holes.
SC Simplex SM optical fibre, fiber, integral dust cover, ceramic sleeve. Black plastic frame.
Fibre Fiber optic connector cleaner pen tool available.
- CP30215 3.5 mm ⌀ countersunk holes.
- CP30215X 2.5 mm ⌀ plain holes.
- CP30215 3.5 mm ⌀ countersunk holes.
ST / BFOC optical fibre, fiber, integral dust cover, nickel-plated contacts. Black plastic frame.
Fibre Fiber optic connector cleaner pen tool available.
- CP30218 3.5 mm ⌀ countersunk holes.
- CP30218X 2.5 mm ⌀ plain holes.
- CP30218 3.5 mm ⌀ countersunk holes.

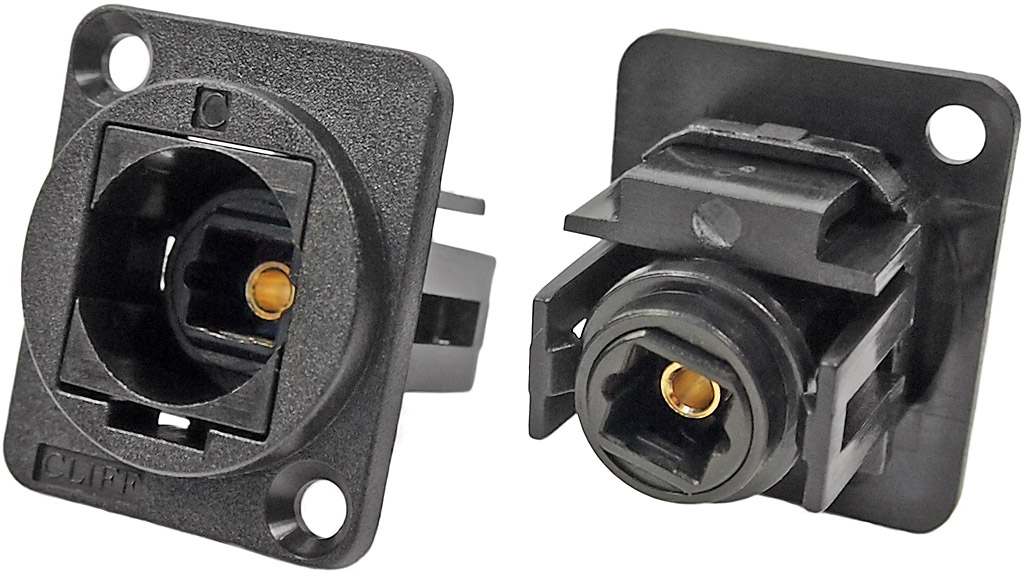

TOSLINK JEITA optical fibre, fiber, integral dust cover. Black plastic frame.
Fibre Fiber optic connector cleaner pen tool available.
- CP30217 3.5 mm ⌀ countersunk holes.
- CP30217X 2.5 mm ⌀ plain holes.
- CP30297 TOSLINK dust plug in black.
- CP30217 3.5 mm ⌀ countersunk holes.
Push click action and a robust, sturdy construction, the pens have a dry cleaning strand that gently sweeps and removes harmful contaminants from the connector without damaging the end face.
- FCR300125 1.25 mm for MU and LC connectors.
- FCR300250 2.5 mm for FC, SC and ST connectors.
RCA Phono Phono / Cinch
RCA Phono Phono / Cinch with red insert. Gold over nickel-plated contacts. Black plastic frame.
- CP30230 3.5 mm ⌀ countersunk holes.
- CP30230X 2.5 mm ⌀ plain holes.
- CP30230 3.5 mm ⌀ countersunk holes.
RCA Phono Phono / Cinch with white insert. Gold over nickel-plated contacts. Black plastic frame.
- CP30231 3.5 mm ⌀ countersunk holes.
- CP30231X 2.5 mm ⌀ plain holes.
- CP30231 3.5 mm ⌀ countersunk holes.
RCA Phono Phono / Cinch with yellow insert. Gold over nickel-plated contacts. Black plastic frame.
- CP30232 3.5 mm ⌀ countersunk holes.
- CP30232X 2.5 mm ⌀ plain holes.
- CP30232 3.5 mm ⌀ countersunk holes.
RJ9 / RJ10 / RJ22
RJ9 / RJ10 / RJ22 (4P4C) 7.8 mm. Gold over nickel-plated contacts. Black plastic frame.
- CP30228 3.5 mm ⌀ countersunk holes.
- CP30228X 2.5 mm ⌀ plain holes.
- CP30228 3.5 mm ⌀ countersunk holes.
RJ9 / RJ10 / RJ22 (4P4C) 7.8 mm. Gold over nickel-plated contacts. White plastic frame.
- CP30228W 3.5 mm ⌀ countersunk holes.
- CP30228XW 2.5 mm ⌀ plain holes.
- CP30228W 3.5 mm ⌀ countersunk holes.
RJ11 / RJ14
RJ11 / RJ14 (6P4C) Cat.3. Gold over nickel-plated contacts. Black plastic frame.
- CP30223 3.5 mm ⌀ countersunk holes.
- CP30223X 2.5 mm ⌀ plain holes.
- CP30223 3.5 mm ⌀ countersunk holes.
RJ12
RJ12 (6P6C) Cat.3. Gold over nickel-plated contacts. Black plastic frame.
- CP30224 3.5 mm ⌀ countersunk holes.
- CP30224X 2.5 mm ⌀ plain holes.
- CP30224 3.5 mm ⌀ countersunk holes.
RJ45
RJ45 (8P8C), Cat.5e Unshielded UTP. Black plastic frame.
T568A and T568B wiring termination. ISO / IEC 11801, EN 50173, ANSI / TIA 568B.2.
There is also a right-angled version.
- CP30220 3.5 mm ⌀ countersunk holes.
- CP30220X 2.5 mm ⌀ plain holes.
- CP30220 3.5 mm ⌀ countersunk holes.
RJ45 (8P8C), Cat.5e Unshielded UTP. White plastic frame.
T568A and T568B wiring termination. ISO / IEC 11801, EN 50173, ANSI / TIA 568B.2.
- CP30220W 3.5 mm ⌀ countersunk holes.
- CP30220XW 2.5 mm ⌀ plain holes.
- CP30220W 3.5 mm ⌀ countersunk holes.
RJ45 (8P8C), Cat.5e Shielded FTP. Black plastic frame.
T568A and T568B wiring termination. ISO / IEC 11801, EN 50173, ANSI / TIA 568B.2.
- CP30220S 3.5 mm ⌀ countersunk holes.
- CP30220SX 2.5 mm ⌀ plain holes.
- CP30220S 3.5 mm ⌀ countersunk holes.
RJ45 (8P8C), Cat.5e Shielded FTP. White plastic frame.
T568A and T568B wiring termination. ISO / IEC 11801, EN 50173, ANSI / TIA 568B.2.
- CP30220SW 3.5 mm ⌀ countersunk holes.
- CP30220SXW 2.5 mm ⌀ plain holes.
- CP30220SW 3.5 mm ⌀ countersunk holes.
RJ45 (8P8C), Cat.6 Unshielded UTP. Black plastic frame.
T568A and T568B wiring termination. ISO / IEC 11801, EN 50173, ANSI / TIA 568B.2.
There is also a right-angled version.
- CP30222 3.5 mm ⌀ countersunk holes.
- CP30222X 2.5 mm ⌀ plain holes.
- CP30222 3.5 mm ⌀ countersunk holes.
RJ45 (8P8C), Cat.6 Unshielded UTP. White plastic frame.
T568A and T568B wiring termination. ISO / IEC 11801, EN 50173, ANSI / TIA 568B.2.
- CP30222W 3.5 mm ⌀ countersunk holes.
- CP30222XW 2.5 mm ⌀ plain holes.
- CP30222W 3.5 mm ⌀ countersunk holes.
RJ45 (8P8C), Cat.6 Shielded FTP. Black plastic frame.
T568A and T568B wiring termination. ISO / IEC 11801, EN 50173, ANSI / TIA 568B.2.
- CP30222S 3.5 mm ⌀ countersunk holes.
- CP30222SX 2.5 mm ⌀ plain holes.
- CP30222S 3.5 mm ⌀ countersunk holes.
RJ45 (8P8C), Cat.6 Shielded FTP. White plastic frame.
T568A and T568B wiring termination. ISO / IEC 11801, EN 50173, ANSI / TIA 568B.2.
- CP30222SW 3.5 mm ⌀ countersunk holes.
- CP30222SXW 2.5 mm ⌀ plain holes.
- CP30222SW 3.5 mm ⌀ countersunk holes.
RJ45 (8P8C), Cat.6 IDC. Black plastic frame.
The rear connectors are insulation-displacement connectors rather than a feedthrough.
- CP30227 3.5 mm ⌀ countersunk holes.
- CP30227X 2.5 mm ⌀ plain holes.
- CP30227 3.5 mm ⌀ countersunk holes.
RJ45 (8P8C), Cat.6A Shielded FTP. Black plastic frame.
T568A and T568B wiring termination. ISO / IEC 11801, EN 50173, ANSI / TIA 568B.2.
- CP30225S 3.5 mm ⌀ countersunk holes.
- CP30225SX 2.5 mm ⌀ plain holes.
- CP30225S 3.5 mm ⌀ countersunk holes.
Two wire Terminals
Two wire terminal. Black plastic frame.
Low voltage use only. Maximum rating 10 A at 25 V AC / 60 V DC.
- CP30240 3.5 mm ⌀ countersunk holes.
- CP30240X 2.5 mm ⌀ plain holes.
- CP30240 3.5 mm ⌀ countersunk holes.
USB 2
USB 2.0 A to USB 2.0 A, vertical, nickel-plated steel shell with gold-plated contacts. Black plastic frame.
There is also a right-angled version.
- CP30208N 3.5 mm ⌀ countersunk holes.
- CP30208NX 2.5 mm ⌀ plain holes.
- CP30208N 3.5 mm ⌀ countersunk holes.
USB 2.0 A to USB 2.0 A, vertical, nickel-plated steel shell with gold-plated contacts. White plastic frame.
- CP30208NW 3.5 mm ⌀ countersunk holes.
- CP30208NXW 2.5 mm ⌀ plain holes.
- CP30208NW 3.5 mm ⌀ countersunk holes.
USB 2.0 B to USB 2.0 B, nickel-plated steel shell with gold-plated contacts. Black plastic frame.
- CP30203N 3.5 mm ⌀ countersunk holes.
- CP30203NX 2.5 mm ⌀ plain holes.
- CP30203N 3.5 mm ⌀ countersunk holes.
USB 2.0 A to USB 2.0 B adapter, vertical, nickel-plated steel shell with gold-plated contacts. Black plastic frame.
- CP30209N 3.5 mm ⌀ countersunk holes.
- CP30209NX 2.5 mm ⌀ plain holes.
- CP30209N 3.5 mm ⌀ countersunk holes.
USB 2.0 A to USB 2.0 B adapter, vertical, nickel-plated steel shell with gold-plated contacts. White plastic frame.
- CP30209NW 3.5 mm ⌀ countersunk holes.
- CP30209NXW 2.5 mm ⌀ plain holes.
- CP30209NW 3.5 mm ⌀ countersunk holes.
USB 2.0 B to USB 2.0 A adapter, vertical, nickel-plated steel shell with gold-plated contacts. Black plastic frame.
- CP30207N 3.5 mm ⌀ countersunk holes.
- CP30207NX 2.5 mm ⌀ plain holes.
- CP30207N 3.5 mm ⌀ countersunk holes.
USB 2.0 B to USB 2.0 A adapter, vertical, nickel-plated steel shell with gold-plated contacts. White plastic frame.
- CP30207NW 3.5 mm ⌀ countersunk holes.
- CP30207NXW 2.5 mm ⌀ plain holes.
- CP30207NW 3.5 mm ⌀ countersunk holes.
USB 3
USB 3.0 A to USB 3.0 A, vertical, nickel-plated steel shell with gold-plated contacts. Black plastic frame.
There is also a right-angled version.
- CP30205N 3.5 mm ⌀ countersunk holes.
- CP30205NX 2.5 mm ⌀ plain holes.
- CP30205N 3.5 mm ⌀ countersunk holes.
USB 3.0 A to USB 3.0 A, vertical, nickel-plated steel shell with gold-plated contacts. White plastic frame.
- CP30205NW 3.5 mm ⌀ countersunk holes.
- CP30205NXW 2.5 mm ⌀ plain holes.
- CP30205NW 3.5 mm ⌀ countersunk holes.
USB 3.0 B to USB 3.0 B, nickel-plated steel shell with gold-plated contacts. Black plastic frame.
- CP30204N 3.5 mm ⌀ countersunk holes.
- CP30204NX 2.5 mm ⌀ plain holes.
- CP30204N 3.5 mm ⌀ countersunk holes.
USB 3.0 A to USB 3.0 B adapter, vertical, nickel-plated steel shell with gold-plated contacts. Black plastic frame.
- CP30210N 3.5 mm ⌀ countersunk holes.
- CP30210NX 2.5 mm ⌀ plain holes.
- CP30210N 3.5 mm ⌀ countersunk holes.
USB 3.0 B to USB 3.0 A adapter, vertical, nickel-plated steel shell with gold-plated contacts. Black plastic frame.
- CP30206N 3.5 mm ⌀ countersunk holes.
- CP30206NX 2.5 mm ⌀ plain holes.
- CP30206N 3.5 mm ⌀ countersunk holes.
USB Type-C
USB Type-C female to USB Type-C female, vertical. Black plastic frame.
Not compatible with power delivery (PD) charging.
There is also a right-angled version which is PD compatible.
- CP30201 3.5 mm ⌀ countersunk holes.
- CP30201X 2.5 mm ⌀ plain holes.
- CP30201 3.5 mm ⌀ countersunk holes.
USB Type-C female to USB Type-C female, vertical. White plastic frame.
Not compatible with power delivery (PD) charging.
- CP30201W 3.5 mm ⌀ countersunk holes.
- CP30201XW 2.5 mm ⌀ plain holes.
- CP30201W 3.5 mm ⌀ countersunk holes.
USB Type-C female to USB Type-C male, horizontal, nickel-plated. Black plastic frame.
USB 3.2 Gen 2×2 (20 Gbit/s).
USB-C extension cables available.
- CP30211 3.5 mm ⌀ countersunk holes.
- CP30211X 2.5 mm ⌀ plain holes.
- CP30211 3.5 mm ⌀ countersunk holes.
USB Type-C female to USB Type-C male, horizontal, nickel-plated. White plastic frame.
USB 3.1 Gen 2 (10 Gbit/s).
USB-C extension cables available.
- CP30211W 3.5 mm ⌀ countersunk holes.
- CP30211XW 2.5 mm ⌀ plain holes.
- CP30211W 3.5 mm ⌀ countersunk holes.
Dual USB
Dual USB Type-C female to USB Type-C male, horizontal, nickel-plated. Black plastic frame.
USB-C extension cables available.
- CP30212 3.5 mm ⌀ countersunk holes.
- CP30212X 2.5 mm ⌀ plain holes.
- CP30212 3.5 mm ⌀ countersunk holes.
Dual USB Type-C female to USB Type-C male, horizontal, nickel-plated. White plastic frame.
USB-C extension cables available.
- CP30212W 3.5 mm ⌀ countersunk holes.
- CP30212XW 2.5 mm ⌀ plain holes.
- CP30212W 3.5 mm ⌀ countersunk holes.
USB Type-C 3.2 female to USB Type-C 3.2 male and USB 3.0 A female to USB 3.0 A female, horizontal, gold-plated. Black plastic frame.
USB-C extension cables available.
- CP30235 3.5 mm ⌀ countersunk holes.
- CP30235X 2.5 mm ⌀ plain holes.
- CP30235 3.5 mm ⌀ countersunk holes.

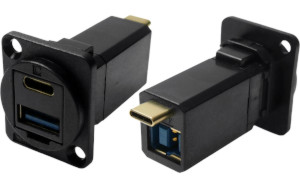

USB Type-C 3.2 female to USB Type-C 3.2 male and USB 3.0 A female to USB 3.0 B female, horizontal, gold-plated. Black plastic frame.
USB-C extension cables available.
- CP30234 3.5 mm ⌀ countersunk holes.
- CP30234X 2.5 mm ⌀ plain holes.
- CP30234 3.5 mm ⌀ countersunk holes.
Blanking and Recess Plates
XLR-format panel blanking plate. Black plastic frame.
- CP30241 3.5 mm ⌀ countersunk holes.
- CP30241X 2.5 mm ⌀ plain holes.
- CP30241 3.5 mm ⌀ countersunk holes.
XRP3 3 mm deep recess plate for custom mounting options. Drill or punch guide. Black plastic.
- CP30300 3.5 mm ⌀ countersunk holes.
- CP30300X 2.5 mm ⌀ plain holes.
- CP30300 3.5 mm ⌀ countersunk holes.
XRP12 12 mm deep recess plate for custom mounting options. Drill or punch guide. Black plastic.
- CP30400 3.5 mm ⌀ countersunk holes.
- CP30400X 2.5 mm ⌀ plain holes.
- CP30400 3.5 mm ⌀ countersunk holes.
Dust Covers and Sealing Gaskets
-
CP299902 Black.
- CP299903 White.
- CP299904 GreyGray.
- CP299905 Green.
- CP299906 Yellow.
- CP299907 Red.
- CP299908 Blue.
-
Gasket with cover. Not for ST or FC fibre-optic fiber-optic feedthroughs.
CP299802 Black.
- CP299805 Green.
- CP299807 Red.
- CP299808 Blue.
-
Universal dust cover. Not for ST or FC fibre-optic fiber-optic feedthroughs.
CP30285 Black.
-
CP30285L Blue.
-
CP30285R Red.
-
- CP30294 HDMI Black.
- CP30294W HDMI White.
- CP30297 Optical TOSLINK Black.
- CP30291 RJ45 Black.
- CP30291W RJ45 White.
- CP30292 USB Type-A Black.
- CP30292W USB Type-A White.
- CP30293 USB 2 Type-B Black.
- CP30293W USB 2 Type-B White.
- CP30296 USB 3 Type-B Black.
- CP30296W USB 3 Type-B White.
- CP30295 USB Type-C Black.
- CP30295W USB Type-C White.
- CP30290 Lanyard.
- CP30290X10 10 Lanyards.
Please contact Cliff™ sales for more information.
We use PDF files for product information. An app like Adobe Acrobat Reader may be required.
