MS3 Series Fused Mains AC Power Input Connectors

The Cliff™ MS3 series power inlet connectors are produced from heat-resistant plastic with solid brass, nickel-plated metal parts. Parts for soldering are tin-plated. The MS3 is a composite design incorporating an input, fuseholder and voltage selector. The fuse carrier is available printed with various voltage combinations. Two terminal options are available - solder tag and quick connect.



All products are produced in accordance to BS EN IEC 60320 and have various safety approvals. Supplied without fuse fitted. The standard colour color is black.



Significant features

• Compact, space saving design.
• MS3 DPS version available where ‘L pin’ is not connected to the fuseholder and permits double pole switching.
• MS3X Snap-in version also available, (without voltage selector option). IECEE CB scheme approval for all EU countries.
• Cost effective, rapid installation.
• MS3 voltage selection by reversible fuse carrier, (Cliff™ patent).



Specification

• Rated Current: 10 A maximum, (MS3X is 6 A maximum). SEMKO is 6 A maximum.
• Rated Voltage: 250 V AC.
• Temperature Rating: −10 to +85 °C.
• Minimum Materials Flammability Rating: UL 94 HB.



See the PDF data sheet for technical specifications: MS3 series fused power input connectors (opens in a new window).

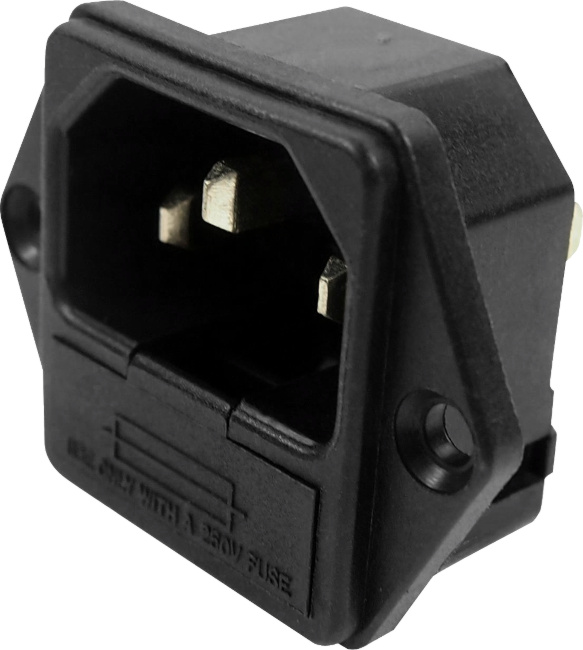

• MS3 IEC C14 inlet socket with captive fuse carrier and 4.8 mm FASTON® tags. No voltage selection.



  CL1927RB MS3 captive fuse holder.

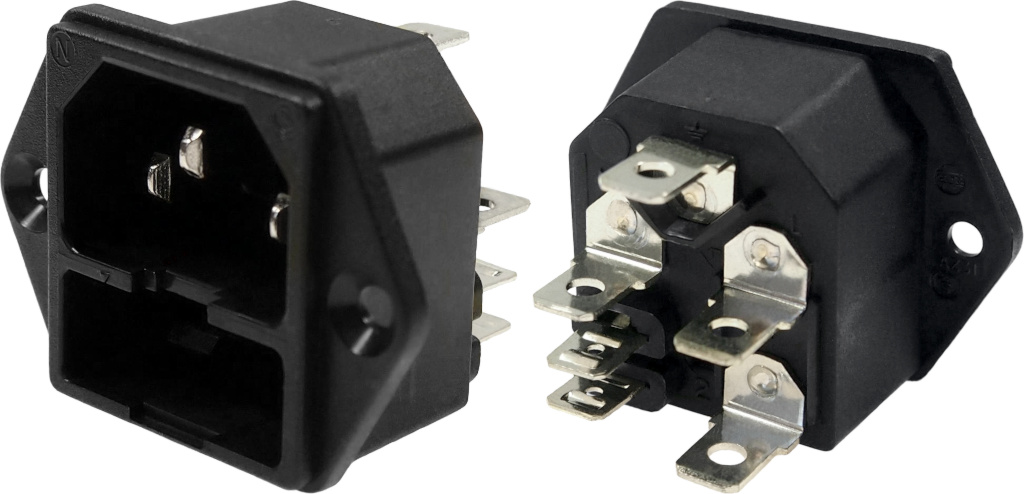

• MS3 IEC C14 inlet socket with voltage selector. Please order fuse carrier separately.



  • CL1927 MS3.
  • CL19268 XMS3 for self tap fixing.
  • CL19271 MS3-DPS double pole switching.
  • CL192711 XMS3-DPS double pole switching for self tap fixing.



•

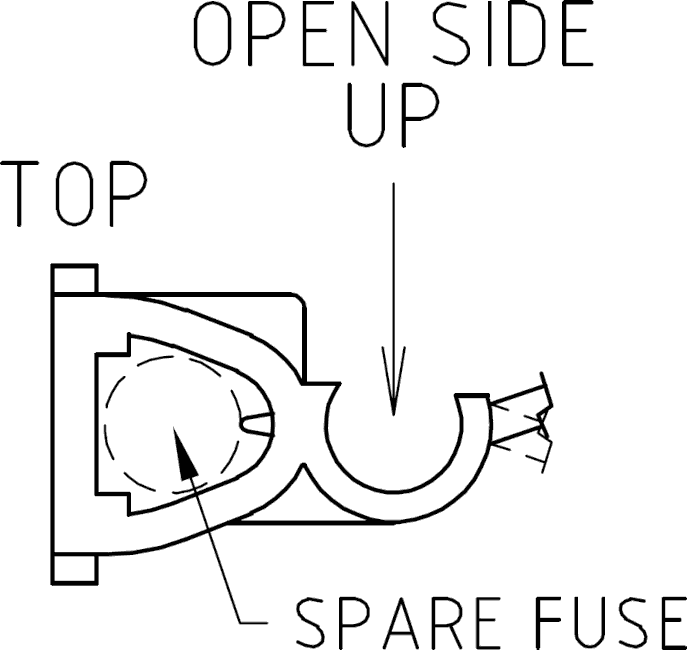

  MS3 polyamide fuse carriers with various printing options. With spare fuse holder.





  Show/hide part numbers and legends.



  • CL19262  FUSE.



  • CL19273  120 V / 100 V.

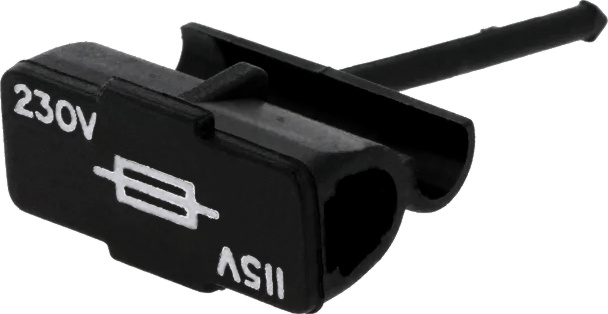

  • CL19274  230 V / 115 V.



  • CL19275  240 V / 110 V.



  • CL192751 240 V / 115 V.



  • CL19276  240 V / 220 V.



  • CL192761 No legend (blank).



  • CL19277 FUSE. Moulded Molded legend (special type X).



  •          CSA version. Obsolete.



  • CL192763 250 V / 220 V.



  • CL192731 220-240 V / 100-120 V.



  • CL192723 117 V.



  • CL192724 100 V.



  • CL192768 220-230 V / 240 V.





• MS3X IEC C14 inlet socket with captive fuse holder. Snap-in. No voltage selection. UL / CSA approved.



  FC681378 MS3X captive fuse holder.

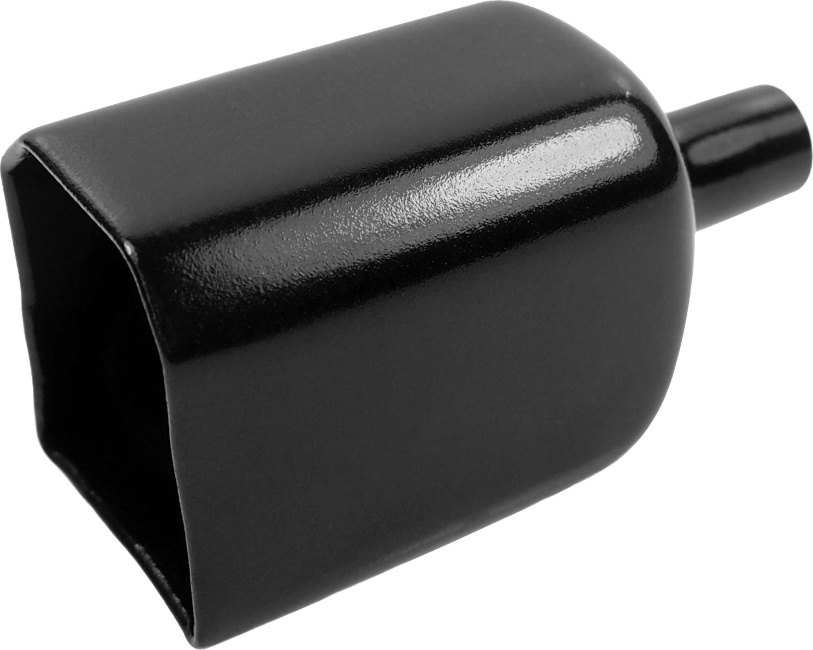

• MS3 PVC insulating cover.



  CL19285 MS3 PVC.
