2 mm and 4 mm Plugs for Cable Connection
We have numerous options and variations. Please discuss complex plug rating issues with our engineering department.
-
P18
Unshrouded 2 mm plug. Supplied unassembled. Mates with S18 socket.
Rated 30 V AC, 60 V DC, 10A maximum.
Available in various colours. colors.
Show/hide part numbers.
P18 test lead plugs
| Part Number |
Description |
| FCR7365B |
P18 2mm plug in black. |
| FCR7365G |
P18 2mm plug in green. |
| FCR7365L |
P18 2mm plug in blue. |
| FCR7365R |
P18 2mm plug in red. |
| FCR7365Y |
P18 2mm plug in yellow. |
-
P18S
Shrouded 2 mm plug. Supplied unassembled. Mates with S18 socket.
Rated 30 V AC, 60 V DC, 10A maximum.
Available in various colours. colors.
Show/hide part numbers.
P18S test lead plugs
| Part Number |
Description |
| FCR7366B |
P18S 2mm plug in black. |
| FCR7366G |
P18S 2mm plug in green. |
| FCR7366L |
P18S 2mm plug in blue. |
| FCR7366R |
P18S 2mm plug in red. |
| FCR7366Y |
P18S 2mm plug in yellow. |
-
P12
Unshrouded 2 mm plug. Supplied unassembled.
Rated 30 V AC, 60 V DC, 10A maximum.
Available in various colours. colors.
Show/hide part numbers.
P12 test lead plugs
| Part Number |
Description |
| CL1466 |
Probe for P12 or P13 2 mm plug. |
| CL1470 |
P12 or P14 cover in black. |
| CL1471 |
P12 or P14 cover in red. |
| CL1472 |
P12 or P14 cover in blue. |
| CL1473 |
P12 or P14 cover in green. |
| CL1474 |
P12 or P14 cover in white. |
| CL1475 |
P12 or P14 cover in grey gray. |
| CL1476 |
P12 or P14 cover in brown. |
| CL1477 |
P12 or P14 cover in yellow. |
-
P13
Unshrouded 2 mm plug. Supplied unassembled.
Rated 30 V AC, 60 V DC, 10A maximum.
Available in various colours. colors.
Show/hide part numbers.
P13 test lead plugs
| Part Number |
Description |
| CL1466 |
Probe for P12 or P13 2 mm plug. |
| CL1480 |
P13 cover in black. |
| CL1481 |
P13 cover in red. |
| CL1482 |
P13 cover in blue. |
| CL1483 |
P13 cover in green. |
| CL1484 |
P13 cover in white. |
| CL1485 |
P13 cover in grey gray. |
| CL1486 |
P13 cover in brown. |
| CL1487 |
P13 cover in yellow. |
-
P14
Unshrouded 4 mm plug. Supplied unassembled.
Rated 30 V AC, 60 V DC, 10A maximum.
Available in various colours. colors.
Show/hide part numbers.
P14 test lead plugs
| Part Number |
Description |
| CL1468 |
Probe for P14 or P15 4 mm plug and pin. |
| CL1470 |
P12 or P14 cover in black. |
| CL1471 |
P12 or P14 cover in red. |
| CL1472 |
P12 or P14 cover in blue. |
| CL1473 |
P12 or P14 cover in green. |
| CL1474 |
P12 or P14 cover in white. |
| CL1475 |
P12 or P14 cover in grey gray. |
| CL1476 |
P12 or P14 cover in brown. |
| CL1477 |
P12 or P14 cover in yellow. |
-
P15
Unshrouded 4 mm plug. Supplied unassembled.
Rated 30 V AC, 60 V DC, 10A maximum.
Available in various colours. colors.
Show/hide part numbers.
P15 test lead plugs
| Part Number |
Description |
| CL1468 |
Probe for P14 or P15 4 mm plug and pin. |
| CL1490 |
P15 cover in black. |
| CL1491 |
P15 cover in red. |
| CL1492 |
P15 cover in blue. |
| CL1493 |
P15 cover in green. |
| CL1494 |
P15 cover in white. |
| CL1495 |
P15 cover in grey. gray. |
| CL1496 |
P15 cover in brown. |
| CL1497 |
P15 cover in yellow. |
-
P14X
Shrouded 4 mm nickel plated plug. Can be with or without rating.
Rated 1000 V, 10A maximum, CAT III.
Available in various colours. colors.
Show/hide part numbers.
P14X test lead plugs
| Part Number |
Description |
| P14X has different model codes depending on the product marking. |
| CL14891 |
P14XA (no marking) in black. |
| CL14892 |
P14XA (no marking) in red. |
| CL14893 |
P14XA (no marking) in yellow. |
| CL14894 |
P14XA (no marking) in brown. |
| CL14895 |
P14XA (no marking) in blue. |
| CL14896 |
P14XA (no marking) in grey. gray. |
| CL14897 |
P14XA (no marking) in green. |
| |
| CL14891M |
P14XX (Cliff™ marking) 1kV CAT II in black. |
| CL14892M |
P14XX (Cliff™ marking) 1kV CAT II in red. |
| CL14893M |
P14XX (Cliff™ marking) 1kV CAT II in yellow. |
| CL14894M |
P14XX (Cliff™ marking) 1kV CAT II in brown. |
| CL14895M |
P14XX (Cliff™ marking) 1kV CAT II in blue. |
| CL14896M |
P14XX (Cliff™ marking) 1kV CAT II in grey. gray. |
| CL14897M |
P14XX (Cliff™ marking) 1kV CAT II in green. |
-
P14XASR
4 mm nickel plated plug with retractable shroud and cable restraint collet.
Rated 1000 V, 10A maximum, CAT II.
Available in various colours. colors.
- FCR6381B P14XASR 4 mm Cliff™ plug in black.
- FCR6381R P14XASR 4 mm Cliff™ plug in red.
-
P14XBR
4 mm nickel plated plug with fixed shroud and cable restraint collet.
Rated 1000 V, 10A maximum, CAT III.
Available in various colours. colors.
Show/hide FCR6361x part numbers.
P14XBR test lead plugs
| Part Number |
Description |
| FCR6361B |
P14XBR 4mm Cliff™ touchproof plug in black. |
| FCR6361G |
P14XBR 4mm Cliff™ touchproof plug in green. |
| FCR6361L |
P14XBR 4mm Cliff™ touchproof plug in blue. |
| FCR6361N |
P14XBR 4mm Cliff™ touchproof plug in brown. |
| FCR6361R |
P14XBR 4mm Cliff™ touchproof plug in red. |
| FCR6361Y |
P14XBR 4mm Cliff™ touchproof plug in yellow. |
-

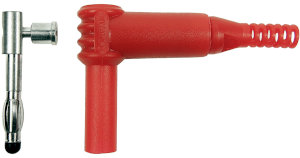

P149XR
4 mm tin / nickel plated, 90° plug with fixed shroud and cable restraint collet
Rated 1000 V, CAT III.
Available in various colours. colors.
- FCR6341B P149XR 90° 4mm plug in black.
-
- FCR6341G P149XR 90° 4mm plug in green.
-
- FCR6341L P149XR 90° 4mm plug in blue.
-
- FCR6341R P149XR 90° 4mm plug in red.
-
- FCR6341Y P149XR 90° 4mm plug in yellow.
-
- FCR6341N P149XR 90° 4mm plug in brown.
-
P20
4 mm plug.
Special connector for HV testing.
Rated 5, 10 or 12kV for HV applications. Not intended for mains use so no CAT rating.
Test Connectors and Leads - general information
Please contact Cliff™ sales for more information.
