XLR Audio Connectors

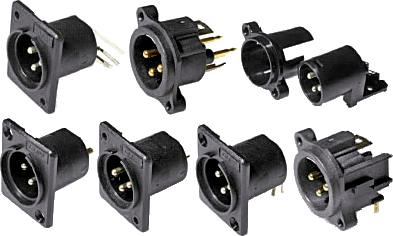

Male 3 Pin XLR Receptacles
Three pin XLR receptacles series 1 and 2.
Chassis mounting versions with premium quality machined contacts.
Optional chassis grounding versions also available.
-

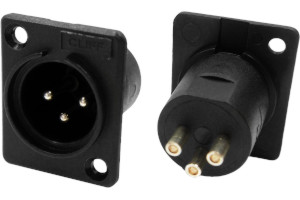

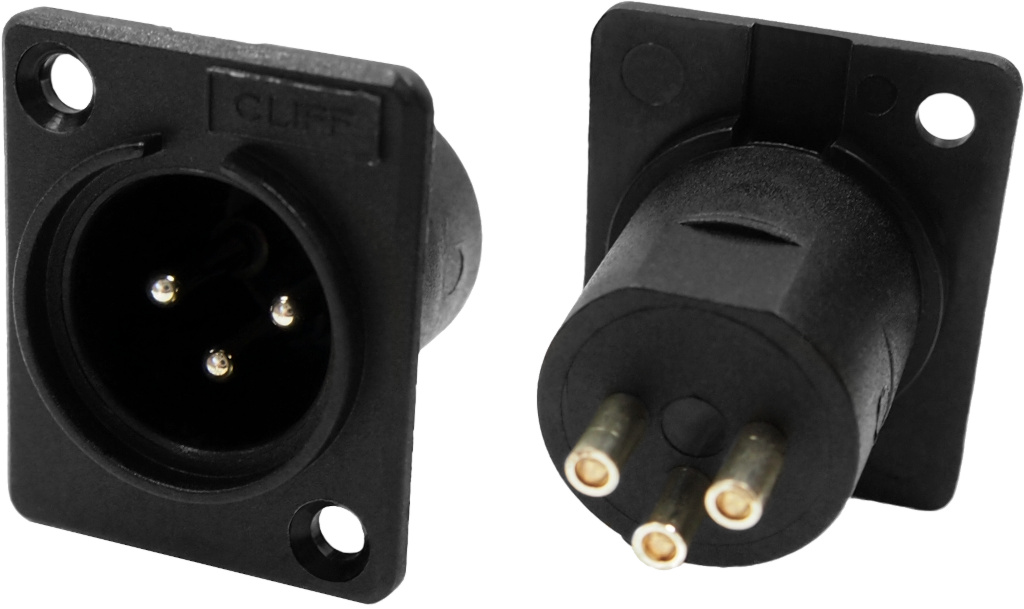

ACM Three pin, chassis mounting, male XLR with counter sunk mounting holes for M3 screw fixing. XACM has non counter sunk mounting holes for self-tap screw fixing. Nickel silver plated brass contacts.
CP3000 ACM.
CP30001 XACM.
-

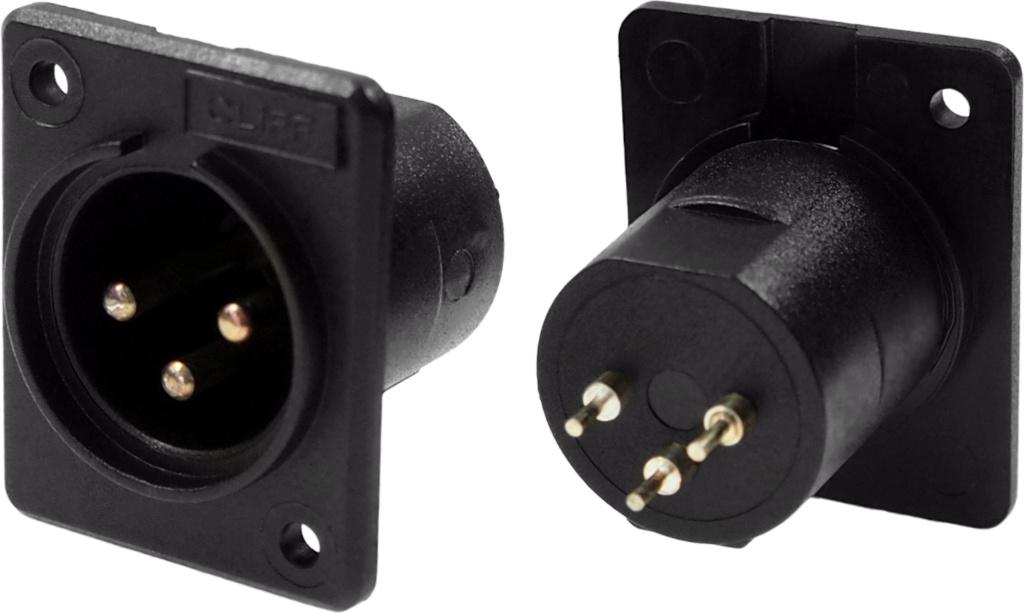

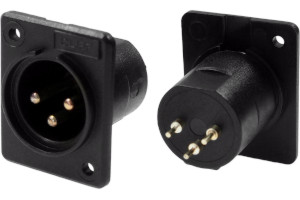

XACM / PCS Three pin, vertical, PCB mounting, male XLR with non counter sunk mounting holes for self-tap screw fixing. ACM PCS has counter sunk mounting holes for M3 screw fixing. Nickel silver plated brass contacts.
CP30004 XACM / PCS.
CP30003 ACM / PCS.
-

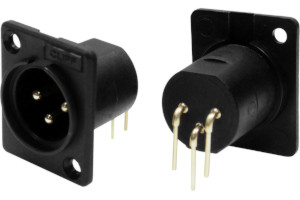

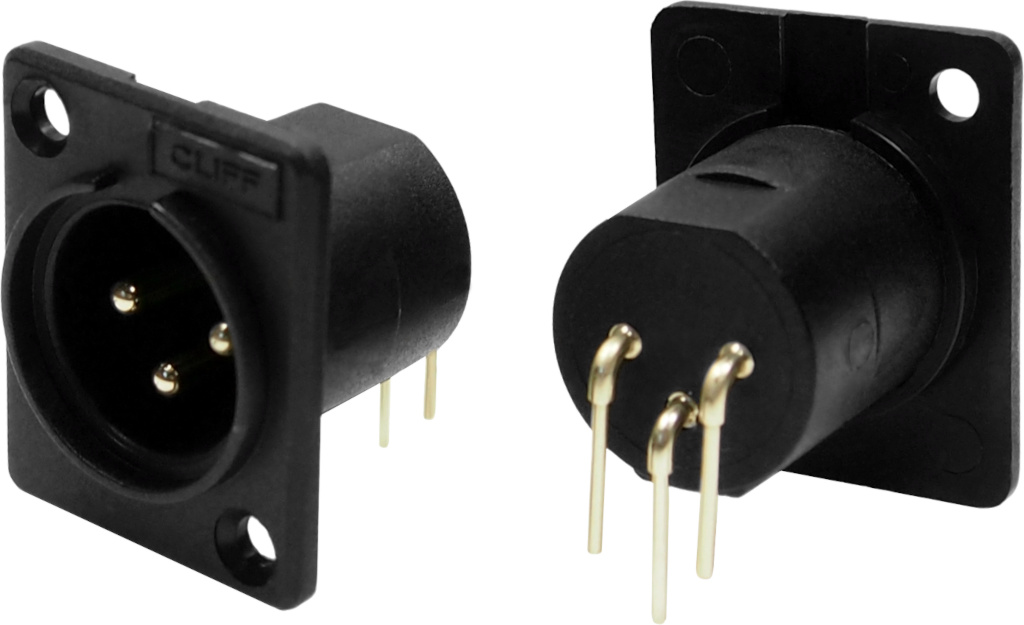

ACM / PC Three pin, horizontal, PCB mounting, male XLR with counter sunk mounting holes for M3 screw fixing. XACM / PC has non counter sunk mounting holes for self-tap screw fixing. Nickel silver plated brass contacts.
CP30005 ACM / PC.
CP300051 XACM / PC.
-

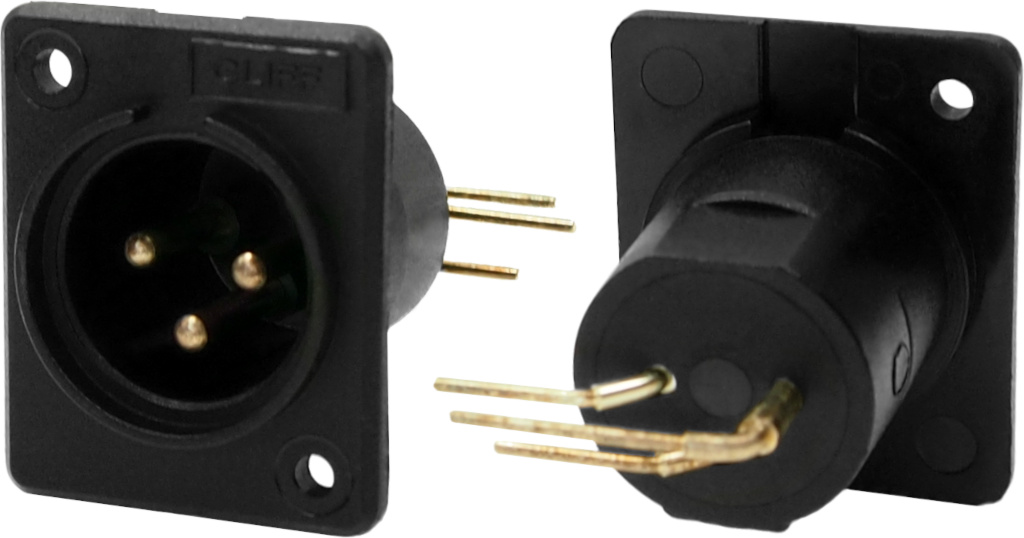

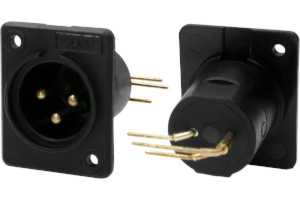

XACMR / PC Three pin, horizontal, lateral right PCB mounting, male XLR with non counter sunk mounting holes for self-tap screw fixing. Nickel silver plated brass contacts.
CP30007 XACMR / PC.
-

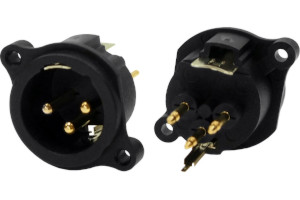

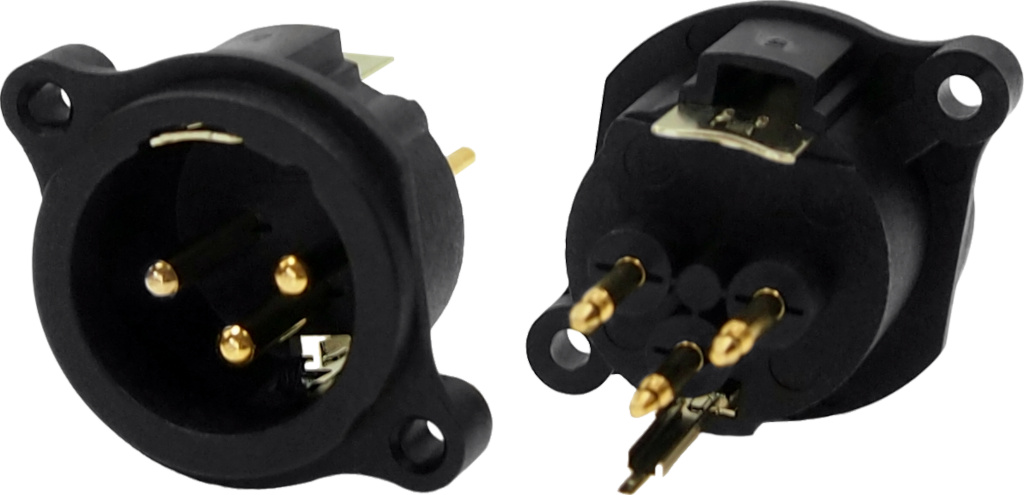

XNACM2V / PCS Three pin, vertical, PCB mounting, male XLR with non counter sunk mounting holes for self-tap screw fixing. Gold plated brass contacts standard.
CP30008 XACM2V / PCS.
-

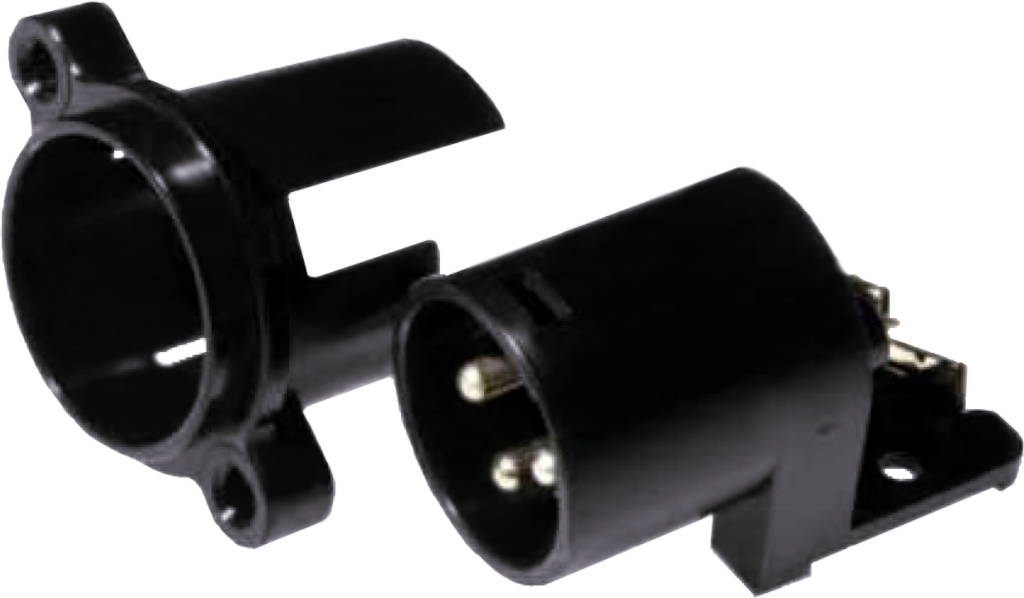

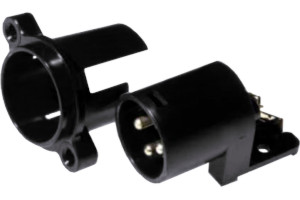

NACM / PC Three pin, low profile, horizontal, PCB mounting, male XLR. Nickel silver or gold plated brass contacts available. Optional mounting escutcheon sold separately.
CP3002 NACM / PC.
CP30022 NACM / PC Gold.
CP30025 Escutcheon.
-
XNACM5 / PC90 Three pin, horizontal, PCB mounting, male XLR for self-tap screw fixing. Gold plated brass contacts. Vertical PCB mounting also available, part XNACM5 / PCS. Optional EMI / RFI screen.
CP300252 XNACM5 / PC90.
CP300251 XNACM5 / PCS.
XLR Audio Connectors - general information
Please contact Cliff™ sales for more information.
