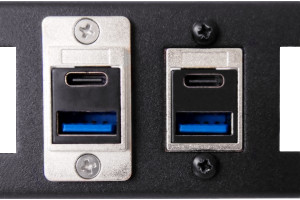

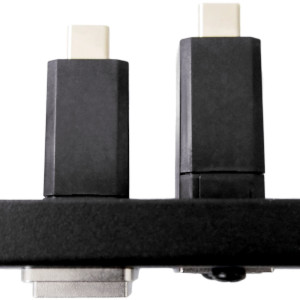

DualSLIM Narrow Metal Feedthrough Connectors - Front or Rear Mounting
#4-40 UNC
M3
- Please also see our
- feedthrough connectors
- USB connectors
BNC
BNC 50 ohm.
- CP30737M Nickel. 3.2 mm countersunk holes.
- CP30737MB Black. 3.2 mm countersunk holes.
- CP30737M3 Nickel. M3 holes.
- CP30737MB3 Black. M3 holes.
- CP30737M440 Nickel. #4-40 UNC holes.
- CP30737MB440 Black. #4-40 UNC holes.
- CP30737MX1 Nickel. 3.2 mm plain holes.
- CP30737MBX1 Black. 3.2 mm plain holes.
BNC 75 ohm.
- CP30738M Nickel. 3.2 mm countersunk holes.
- CP30738MB Black. 3.2 mm countersunk holes.
- CP30738M3 Nickel. M3 holes.
- CP30738MB3 Black. M3 holes.
- CP30738M440 Nickel. #4-40 UNC holes.
- CP30738MB440 Black. #4-40 UNC holes.
- CP30738MX1 Nickel. 3.2 mm plain holes.
- CP30738MBX1 Black. 3.2 mm plain holes.
DisplayPort
DisplayPort female to female. 8K @ 60Hz. Gold-plated contacts.
DisplayPort to DisplayPort cables are available in 1m and 2m lengths.
- CP30733M Nickel. 3.2 mm countersunk holes.
- CP30733MB Black. 3.2 mm countersunk holes.
- CP30733M3 Nickel. M3 holes.
- CP30733M3B Black. M3 holes.
Mini DisplayPort female to female. Gold-plated contacts.
DisplayPort to mini DisplayPort cables are available in 1m and 2m lengths.
- CP30702M Nickel. 3.2 mm countersunk holes.
- CP30702MB Black. 3.2 mm countersunk holes.
- CP30702M3 Nickel. M3 holes.
- CP30702MB3 Black. M3 holes.
- CP30702M440 Nickel. #4-40 UNC holes.
- CP30702MB440 Black. #4-40 UNC holes.
- CP30702MX1 Nickel. 3.2 mm plain holes.
- CP30702MBX1 Black. 3.2 mm plain holes.
HDMI
HDMI 4K female to HDMI 4K female, Type-A. Gold-plated contacts and shell.
There is also a right-angled version.
- CP30700GM Nickel. 3.2 mm countersunk holes.
- CP30700GMB Black. 3.2 mm countersunk holes.
- CP30700GM3 Nickel. M3 holes.
- CP30700GMB3 Black. M3 holes.
- CP30700GM440 Nickel. #4-40 UNC holes.
- CP30700GMB440 Black. #4-40 UNC holes.
- CP30700GMX1 Nickel. 3.2 mm plain holes.
- CP30700GMBX1 Black. 3.2 mm plain holes.
HDMI 8K female to HDMI 8K female, Type-A. Gold-plated contacts and shell.
Shielded HDMI 2.1 supporting 7680 × 4320 at 60 Hz with HDR video support.
- CP30788M Nickel. 3.2 mm countersunk holes.
- CP30788MB Black. 3.2 mm countersunk holes.
- CP30788M3 Nickel. M3 holes.
- CP30788MB3 Black. M3 holes.
- CP30788M440 Nickel. #4-40 UNC holes.
- CP30788MB440 Black. #4-40 UNC holes.
- CP30788MX1 Nickel. 3.2 mm plain holes.
- CP30788MBX1 Black. 3.2 mm plain holes.
RJ11 / RJ14
RJ11 / RJ14 (6P4C) Cat.3. Gold-plated contacts.
- CP30723M Nickel. 3.2 mm countersunk holes.
- CP30723MB Black. 3.2 mm countersunk holes.
- CP30723M3 Nickel. M3 holes.
- CP30723MB3 Black. M3 holes.
- CP30723M440 Nickel. #4-40 UNC holes.
- CP30723MB440 Black. #4-40 UNC holes.
- CP30723MX1 Nickel. 3.2 mm plain holes.
- CP30723MBX1 Black. 3.2 mm plain holes.
RJ12
RJ12 (6P6C) Cat.3. Gold-plated contacts.
- CP30724M Nickel. 3.2 mm countersunk holes.
- CP30724MB Black. 3.2 mm countersunk holes.
- CP30724M3 Nickel. M3 holes.
- CP30724MB3 Black. M3 holes.
- CP30724M440 Nickel. #4-40 UNC holes.
- CP30724MB440 Black. #4-40 UNC holes.
- CP30724MX1 Nickel. 3.2 mm plain holes.
- CP30724MBX1 Black. 3.2 mm plain holes.
RJ45
RJ45 Cat.5e Unshielded UTP. Gold-plated contacts.
There is also a right-angled version.
- CP30720M Nickel. 3.2 mm countersunk holes.
- CP30720MB Black. 3.2 mm countersunk holes.
- CP30720M3 Nickel. M3 holes.
- CP30720MB3 Black. M3 holes.
- CP30720M440 Nickel. #4-40 UNC holes.
- CP30720MB440 Black. #4-40 UNC holes.
- CP30720MX1 Nickel. 3.2 mm plain holes.
- CP30720MBX1 Black. 3.2 mm plain holes.
RJ45 Cat.5e Shielded FTP. Gold-plated contacts.
- CP30720SM Nickel. 3.2 mm countersunk holes.
- CP30720SMB Black. 3.2 mm countersunk holes.
- CP30720SM3 Nickel. M3 holes.
- CP30720SMB3 Black. M3 holes.
- CP30720SM440 Nickel. #4-40 UNC holes.
- CP30720SMB440 Black. #4-40 UNC holes.
- CP30720SMX1 Nickel. 3.2 mm plain holes.
- CP30720SMBX1 Black. 3.2 mm plain holes.
RJ45 Cat.6 Unshielded UTP. Gold-plated contacts.
There is also a right-angled version.
- CP30722M Nickel. 3.2 mm countersunk holes.
- CP30722MB Black. 3.2 mm countersunk holes.
- CP30722M3 Nickel. M3 holes.
- CP30722MB3 Black. M3 holes.
- CP30722M440 Nickel. #4-40 UNC holes.
- CP30722MB440 Black. #4-40 UNC holes.
- CP30722MX1 Nickel. 3.2 mm plain holes.
- CP30722MBX1 Black. 3.2 mm plain holes.
RJ45 Cat.6 Shielded FTP. Gold-plated contacts.
- CP30722SM Nickel. 3.2 mm countersunk holes.
- CP30722SMB Black. 3.2 mm countersunk holes.
- CP30722SM3 Nickel. M3 holes.
- CP30722SMB3 Black. M3 holes.
- CP30722SM440 Nickel. #4-40 UNC holes.
- CP30722SMB440 Black. #4-40 UNC holes.
- CP30722SMX1 Nickel. 3.2 mm plain holes.
- CP30722SMBX1 Black. 3.2 mm plain holes.
RJ45 (8P8C) Cat.6 to IDC. RJ45 has gold-plated contacts. The rear connectors are IDCs rather than a feedthrough.
- CP30727M Nickel. 3.2 mm countersunk holes.
- CP30727MB Black. 3.2 mm countersunk holes.
- CP30727M3 Nickel. M3 holes.
- CP30727MB3 Black. M3 holes.
- CP30727M440 Nickel. #4-40 UNC holes.
- CP30727MB440 Black. #4-40 UNC holes.
- CP30727MX1 Nickel. 3.2 mm plain holes.
- CP30727MBX1 Black. 3.2 mm plain holes.
RJ45 Cat.6A Shielded FTP. Gold-plated contacts.
- CP30725SM Nickel. 3.2 mm countersunk holes.
- CP30725SMB Black. 3.2 mm countersunk holes.
- CP30725SM3 Nickel. M3 holes.
- CP30725SMB3 Black. M3 holes.
- CP30725SM440 Nickel. #4-40 UNC holes.
- CP30725SMB440 Black. #4-40 UNC holes.
- CP30725SMX1 Nickel. 3.2 mm plain holes.
- CP30725SMBX1 Black. 3.2 mm plain holes.
USB 2
USB 2.0 A female to USB 2.0 A female. Gold-plated contacts.
- CP30708NM Nickel. 3.2 mm countersunk holes.
- CP30708NMB Black. 3.2 mm countersunk holes.
- CP30708NM3 Nickel. M3 holes.
- CP30708NMB3 Black. M3 holes.
- CP30708NM440 Nickel. #4-40 UNC holes.
- CP30708NMB440 Black. #4-40 UNC holes.
- CP30708NMX1 Nickel. 3.2 mm plain holes.
- CP30708NMBX1 Black. 3.2 mm plain holes.
USB 2.0 A female to USB 2.0 B female. Gold-plated contacts.
- CP30709NM Nickel. 3.2 mm countersunk holes.
- CP30709NMB Black. 3.2 mm countersunk holes.
- CP30709NM3 Nickel. M3 holes.
- CP30709NMB3 Black. M3 holes.
- CP30709NM440 Nickel. #4-40 UNC holes.
- CP30709NMB440 Black. #4-40 UNC holes.
- CP30709NMX1 Nickel. 3.2 mm plain holes.
- CP30709NMBX1 Black. 3.2 mm plain holes.
USB 2.0 B female to USB 2.0 A female. Gold-plated contacts.
- CP30707NM Nickel. 3.2 mm countersunk holes.
- CP30707NMB Black. 3.2 mm countersunk holes.
- CP30707NM3 Nickel. M3 holes.
- CP30707NMB3 Black. M3 holes.
- CP30707NM440 Nickel. #4-40 UNC holes.
- CP30707NMB440 Black. #4-40 UNC holes.
- CP30707NMX1 Nickel. 3.2 mm plain holes.
- CP30707NMBX1 Black. 3.2 mm plain holes.
USB 3
USB 3.0 A female to USB 3.0 A female. Gold-plated contacts.
- CP30705NM Nickel. 3.2 mm countersunk holes.
- CP30705NMB Black. 3.2 mm countersunk holes.
- CP30705NM3 Nickel. M3 holes.
- CP30705NMB3 Black. M3 holes.
- CP30705NM440 Nickel. #4-40 UNC holes.
- CP30705NMB440 Black. #4-40 UNC holes.
- CP30705NMX1 Nickel. 3.2 mm plain holes.
- CP30705NMBX1 Black. 3.2 mm plain holes.
USB 3.0 B female to USB 3.0 A female. Gold-plated contacts.
- CP30706NM Nickel. 3.2 mm countersunk holes.
- CP30706NMB Black. 3.2 mm countersunk holes.
- CP30706NM3 Nickel. M3 holes.
- CP30706NMB3 Black. M3 holes.
- CP30706NM440 Nickel. #4-40 UNC holes.
- CP30706NMB440 Black. #4-40 UNC holes.
- CP30706NMX1 Nickel. 3.2 mm plain holes.
- CP30706NMBX1 Black. 3.2 mm plain holes.
USB Type-C
USB Type-C female to USB Type-C female.
Not compatible with power delivery (PD) charging.
USB-C extension cables available.
- CP30701M Nickel. 3.2 mm countersunk holes.
- CP30701MB Black. 3.2 mm countersunk holes.
- CP30701M3 Nickel. M3 holes.
- CP30701MB3 Black. M3 holes.
- CP30701M440 Nickel. #4-40 UNC holes.
- CP30701MB440 Black. #4-40 UNC holes.
- CP30701MX1 Nickel. 3.2 mm plain holes.
- CP30701MBX1 Black. 3.2 mm plain holes.
USB Type-C female to USB Type-C male.
USB-C extension cables available.
- CP30711M Nickel. 3.2 mm countersunk holes.
- CP30711MB Black. 3.2 mm countersunk holes.
- CP30711M3 Nickel. M3 holes.
- CP30711MB3 Black. M3 holes.
- CP30711M440 Nickel. #4-40 UNC holes.
- CP30711MB440 Black. #4-40 UNC holes.
- CP30711MX1 Nickel. 3.2 mm plain holes.
- CP30711MBX1 Black. 3.2 mm plain holes.
Dual USB

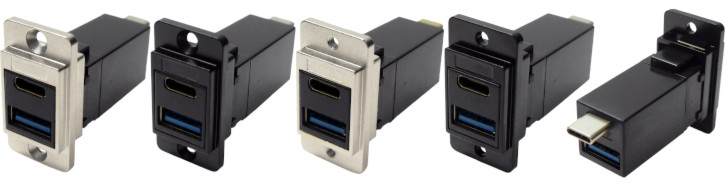

USB Type-C 3.2 female to USB Type-C 3.2 male and USB 3.0 A female to USB 3.0 A female. Gold-plated contacts.
USB-C extension cables available.
- CP30735M Nickel. 3.2 mm countersunk holes.
- CP30735MB Black. 3.2 mm countersunk holes.
- CP30735M3 Nickel. M3 holes.
- CP30735MB3 Black. M3 holes.
- CP30735M440 Nickel. #4-40 UNC holes.
- CP30735MB440 Black. #4-40 UNC holes.
- CP30735MX1 Nickel. 3.2 mm plain holes.
- CP30735MBX1 Black. 3.2 mm plain holes.

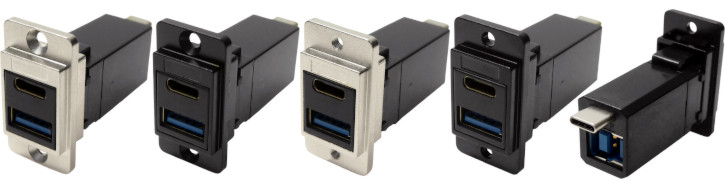

USB Type-C 3.2 female to USB Type-C 3.2 male and USB 3.0 A female to USB 3.0 B female. Gold-plated contacts.
USB-C extension cables available.
- CP30734M Nickel. 3.2 mm countersunk holes.
- CP30734MB Black. 3.2 mm countersunk holes.
- CP30734M3 Nickel. M3 holes.
- CP30734MB3 Black. M3 holes.
- CP30734M440 Nickel. #4-40 UNC holes.
- CP30734MB440 Black. #4-40 UNC holes.
- CP30734MX1 Nickel. 3.2 mm plain holes.
- CP30734MBX1 Black. 3.2 mm plain holes.
Blanking Plates
- CP30741M Nickel. 3.2 mm countersunk holes.
- CP30741MB Black. 3.2 mm countersunk holes.
- CP30741M3 Nickel. M3 holes.
- CP30741MB3 Black. M3 holes.
- CP30741M440 Nickel. #4-40 UNC holes.
- CP30741MB440 Black. #4-40 UNC holes.
- CP30741MX1 Nickel. 3.2 mm plain holes.
- CP30741MBX1 Black. 3.2 mm plain holes.
Dust Covers and Sealing Gaskets
-
-
CP299812 Black.
-
CP299815 Green.
-
CP299817 Red.
-
CP299818 Blue.
-
DUALSLIM (countersunk) gasket with dust cover.
CP299822 Black.
-
CP299825 Green.
-
CP299827 Red.
-
CP299828 Blue.
-
DUALSLIM (countersunk) dust cover.
CP299832 Black.
-
CP299835 Green.
-
CP299837 Red.
-
CP299838 Blue.
-
- CP30294 HDMI Black.
- CP30294W HDMI White.
- CP30297 Optical TOSLINK Black.
- CP30291 RJ45 Black.
- CP30291W RJ45 White.
- CP30292 USB Type-A Black.
- CP30292W USB Type-A White.
- CP30293 USB 2 Type-B Black.
- CP30293W USB 2 Type-B White.
- CP30296 USB 3 Type-B Black.
- CP30296W USB 3 Type-B White.
- CP30295 USB Type-C Black.
- CP30295W USB Type-C White.
- CP30290 Lanyard.
- CP30290X10 10 Lanyards.
Please contact Cliff™ sales for more information.
