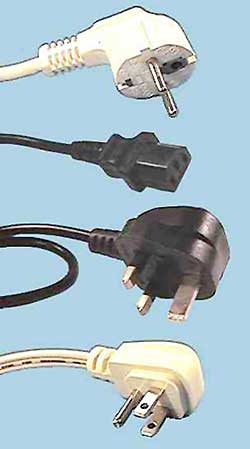

Cord Sets and Miscellaneous Cables

We produce a very competitive range of cord sets for use in the UK, Europe and the USA.. These are made in the UK and China and have all the relevant approvals. Cordsets for other countries are available subject to quantity.

We stock most of the standard models in black. Special colours colors and constructions are produced for OEM uses such as garden equipment, vacuum cleaners, kettles etc.

More cables are available.

UK Cord Sets - BSI Kitemark approved

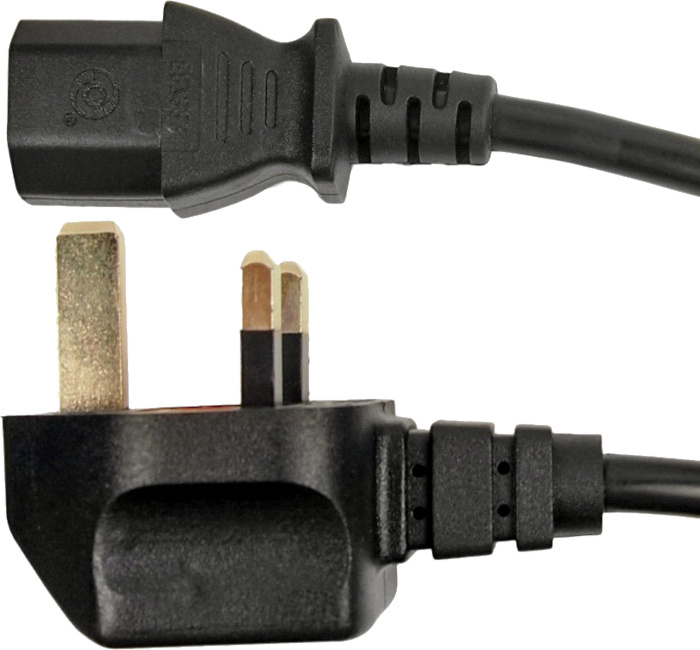

UK 13 A plug (BS 1363) with 3 A, 5 A, 10 A or 13 A fuse.

PVC cable with IEC C13 “cold” or C15 “hot” plug, black.
UK 13 A plug (BS 1363) with 5 A or 10 A fuse.

Rubber cable (H05RN-F) with IEC C15 “hot” plug, black.
UK 13 A plug (BS 1363) with 3 A, 5 A, 10 A or 13 A fuse.

Free end. Round or oval cable, black.
UK 13 A plug (BS 1363) with 5 A or 10 A fuse. Rated 10 A at 250 V AC.

BAC2559 PVC cable (H05VV-F 3G1.0) with IEC C13 “cold” plug, 0.5 metres, meters, red (RAL 3020).

European Cord Sets - approvals for Europe and Scandinavia

Euro plug usable throughout mainland Europe. Rated 2.5 A at 250 V.

FCR72043 Power cord, 2-pin Euro plug to IEC C7 plug, 2 metres, meters, black.
Euro plug usable throughout mainland Europe. Rated 2.5 A at 250 V.

FCR72045 Extension power cord, 2-pin Euro plug to 2-pin Euro socket, 3 metres, meters, black.

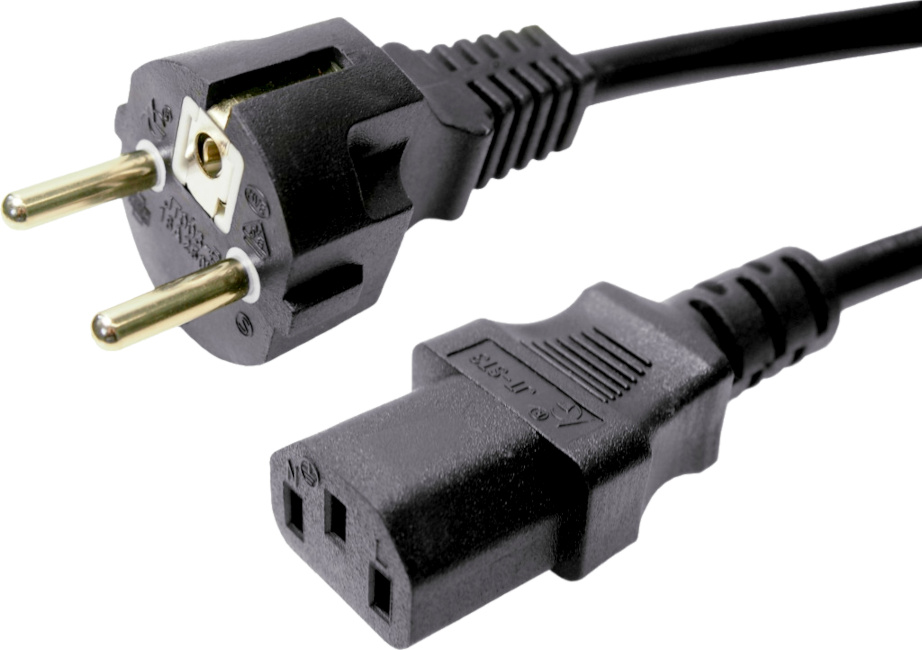

Schuko plug usable in France. IEC C13 plug for class 0 use.

FCR72041 Power cord, right-angled Schuko plug to IEC C13 plug, 2.5 metres, meters, black.
Schuko plug usable in France. IEC C13 plug for class 0 use.

FCR72042 Power cord, right-angled Schuko plug to right-angled IEC C13 plug, 2.5 metres, meters, black.
Schuko plug usable in France. Rated 10 A at 250 V AC.

BAC2549 PVC cable (H05VV-F 3G1.0) with IEC C13 plug, 0.5 metres, meters, red (RAL 3020).
Schuko plug usable in France.

FCR72044 Power cord, right-angled Schuko plug to free end, 2 metres, meters, white.
Schuko plug usable in France.

FCR72040 Rewireable right-angled Schuko plug, white, 2 pole with earth contact. Rated 16 A 250 V AC. VDE and SEMKO approvals. For indoor use only.

USA / Canada Cord Sets

3 Pin (NEMA 5-15P) UL plug for USA and Canada.

IEC C13 plug, black.
2 Pin (NEMA 1-15P) UL plug for USA and Canada

IEC C13 plug, black.
3 Pin (NEMA 5-15P) plug for USA and Canada. Rated 10 A at 125 V AC.

BAC2560 PVC cable (H05VV-F 3G1.0) with IEC C13 plug, 0.5 metres, meters, red (RAL 3020).

Australasia Cord Sets

AS/NZS 3112 plug (type I) for Australia, New Zealand, Fiji, Tonga, Solomon Islands and Papua New Guinea. Rated 10 A at 250 V AC.

BAC2621 PVC cable (H05VV-F 3G1.0) with IEC C13 plug, 0.5 metres, meters, red (RAL 3020).

Cables

These are examples we have in stock which illustrate the range.

More cables are available.

VHDCI Very-High-Density Cable Interconnect 68-pin male-to-male SCSI cable used for connecting and transferring data between computers and peripheral devices. VHDCI connectors are small enough that four can fit on a single PCI card end plate.
- Electrical Current: 0.5 A maximum per contact.
- Shielded: Yes, enhanced shield.
- Voltage: 30 V AC maximum (RMS) / DC.
Materials
- Cable: UL 2919, 28 AWG, 34 twisted pairs + AEB. Black 10.0 mm outer diameter.
- Connectors: 68 pin male connector. PE / PVC. Nickel-plated contacts.
- Ferrite core: ⌀ 17.5 × 28.5 × ⌀ 12 mm.
- Screws: 5 x 37.5 mm.
- FCR720501 VHDCI cable 1 m. Black.
- FCR720502 VHDCI cable 2 m. Black.
DisplayPort to DisplayPort cable.
- Supplied with dust caps.
- Plug style and cable diameter may vary.
- Continuity conductor resistance: 3Ω maximum.
- Insulation resistance: 10MΩ minimum.
- FCR72010 DisplayPort to DisplayPort cable 1 m. Black.
- FCR72011 DisplayPort to DisplayPort cable 2 m. Black.
DisplayPort to Mini DisplayPort cable.
- Supplied with dust caps.
- Plug style and cable diameter may vary.
- Continuity conductor resistance: 3Ω maximum.
- Insulation resistance: 10MΩ minimum.
- FCR72013 DisplayPort to Mini DisplayPort cable 1 m. Black.
- FCR72014 DisplayPort to Mini DisplayPort cable 2 m. Black.

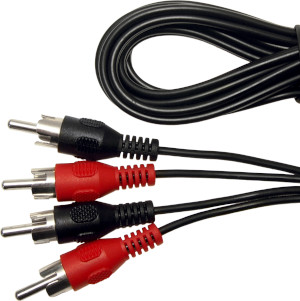

FCR683669 Dual phono lead in red and black. One Y-splitter. 0.5 m long.
FCR683670 Dual phono lead in red and white. Two Y-splitters. 1.25 m long.
FD72055 Mono jack lead assembly. Quarter-inch mono jack plug to two 4.8 mm FASTON® tags. 0.4 m long.
FD72082 Speaker lead with quarter-inch mono jack plugs. 1.5 m long.

Cable Racks

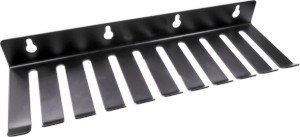

CP37010 Cable rack with 10 slots in black steel.

All cables.

Please contact Cliff™ sales for more information.
