Crocodile Clips - Insulated and Non-insulated

Our range of durable crocodile clips are made from high grade engineering plastics, with tin or nickel plated metal parts. Most comply with BS EN IEC 61010 (CE / UKCA).

•

  CRC/01

  4 mm socket at rear accepts shrouded plug or unshrouded probe.

  Tongue at front to catch small wires or conductor pins. Jaws open to 25 mm.

  Basic rating 600 V CAT III, (1000 V CAT II). BS EN IEC 61010 compliant.

  Available in various clours. colors.



  FCR7940 CRC/01 in black.













  FCR7941 CRC/01 in red.











  FCR7942 CRC/01 in green.

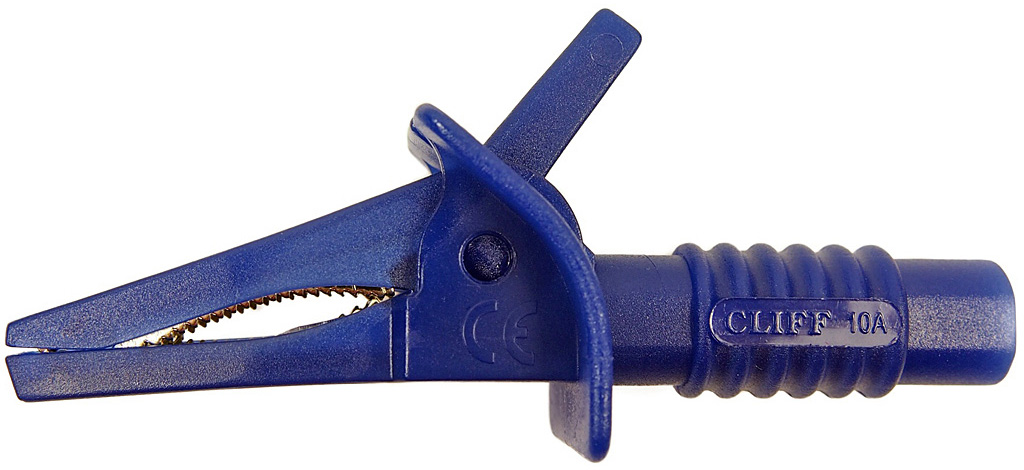

  FCR7943 CRC/01 in blue.











  FCR7944 CRC/01 in brown.

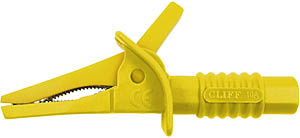

  FCR7924 CRC/01 in yellow.











  FCR7925 CRC/01 in green / yellow.



•

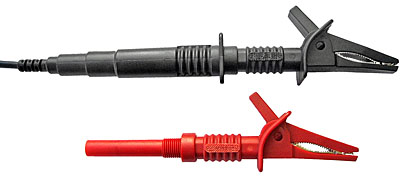

  CRC/01X Extended rear shroud version of CRC/01.

  The shroud enables the highest rating to be maintained.

  For use with probes TPR/1 or TPR/1C. Curved jaws give good grip on busbars. Jaws open to 25 mm.

  Basic rating 600 V CAT III, (1000 V CAT II). BS EN IEC 61010 compliant.



  • FCR7940A CRC/01X in black.
  • FCR7941A CRC/01X in red.
  • FCR7942A CRC/01X in green.
  • FCR7943A CRC/01X in blue.
  • FCR7944A CRC/01X in brown.



•

  CRC/1KV

  4 mm socket at rear accepts shrouded plug or unshrouded probe, depending on model.

  Tongue at front to catch small wires or conductor pins. Jaws open to 28 mm.

  Basic rating 1KV CAT III. Current rating 20A. BS EN IEC 61010 compliant.

  Available in various colours. colors.



  FCR79900B CRC/1KV in black. 4 mm socket accepts shrouded plug.











  FCR79900R CRC/1KV in red. 4 mm socket accepts shrouded plug.











  FCR79900G CRC/1KV in green. 4 mm socket accepts shrouded plug.











  FCR79900L CRC/1KV in blue. 4 mm socket accepts shrouded plug.











  FCR79900N CRC/1KV in brown. 4 mm socket accepts shrouded plug.











  FCR79910B CRC/1KV in black. Extended rear shroud version for use with unshrouded plug.











  FCR79910R CRC/1KV in red. Extended rear shroud version for use with unshrouded plug.











  FCR79910G CRC/1KV in green. Extended rear shroud version for use with unshrouded plug.











  FCR79910L CRC/1KV in blue. Extended rear shroud version for use with unshrouded plug.











  FCR79910N CRC/1KV in brown. Extended rear shroud version for use with unshrouded plug.



•

  CRC/02 Miniature crocodile clip.

  Used in applcations where access is restricted, especially telecommunications.

  4 mm socket at rear accepts shrouded or unshrouded plugs.

  Rated 300 V CAT II. BS EN IEC 61010 compliant.



  FCR7960B CRC/02 in black.











  FCR7960R CRC/02 in red.











  FCR7960G CRC/02 in green.











  FCR7960L CRC/02 in blue.

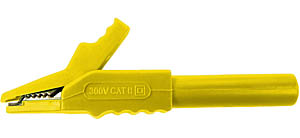

  FCR7960Y CRC/02 in yellow.



•

  CRC/M Heavy duty, all-metal, uninsulated crocodile clip generally used for earth ground testing.

  Curved jaws give good grip on busbars. Jaws open to 25 mm.

  A PVC boot in black or red is available as an option.

  Not BS EN IEC 61010 rated.



  FCR7910 CRC/M.



•

  CRC/BON “Bed of Nails” crocodile clip with insulation piercing point.

  Mostly used in telecoms testing. Optionally available with just the piercing point.

  A range of coloured colored PVC boots is available.

  Not BS EN IEC 61010 rated.



  FCR7911Y CRC/BON.



•

  CIH29880 Set of three unfused probes and crocodile clips. Blue, Green, Brown.

  Other colour color combinations available, subject to viable quantity.



•

  CIH29881 Set of three unfused probes and crocodile clips. Black, Red, Green.

  Other colour color combinations available, subject to viable quantity.
