TP Series of Professional Terminal Binding Posts
Dual Terminals
The Cliff™ range of dual terminal binding post assemblies is designed for use in varied applications including professional and consumer audio, test and measurement, power supplies and industrial uses. Terminal spindles and mounting hardware are manufactured from high quality solid brass, either nickel or gold plated. Plastic parts are moulded molded from tough glass reinforced nylon or polypropylene. TPP4 and TPP5 assemblies are fully insulated and touch proof to reduce the risk of accidental electric shock in higher current applications and also comply with European safety regulations. UL approved models are available on request.
Significant Features
- All models have the Cliff™ castellated knob.
- Conform to the general requirements of BS EN IEC 60065.
- TPP4 and TPP5 assemblies are touch proof to reduce the risk of accidental electric shock in higher current applications.
- Printed circuit board mounting versions available.
Technical Data
All assemblies are supplied with terminals pre-assembled into the top mounting plate and with two plain washers, two spring washers, (except TPP4), and four nuts. TPP3 and TPP5 have a 10 × 32 UNF thread. TPP4 has 2BA thread as standard and is also available with 10 × 32 UNF thread. All models can be supplied with either a nickel or gold plated finish and different stud lengths are available on certain models. Clear plastic knobs and fittings can be supplied on custom versions. Red and black blanking plugs are available for inserting into the 4mm end-holes to comply with European safety regulations.
Specfications
- Maximum Current: 30 A, (TPP60 is rated to 60 A).
- Contact Resistance: Nickel < 30 mΩ, Gold < 20 mΩ.
- Temperature Rating: −20 to +80 °C.
- Flammability: Minimum UL 94 HB.
-

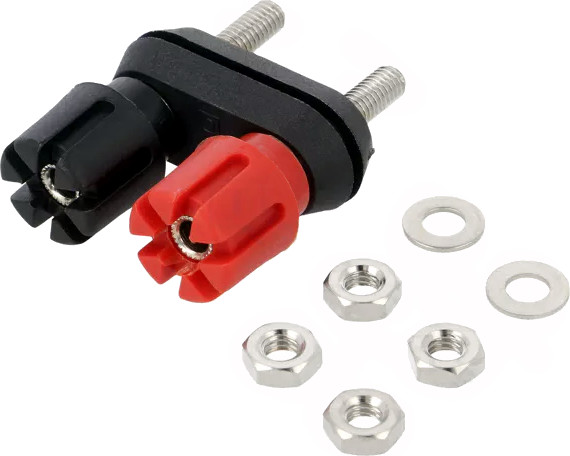

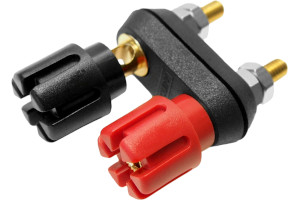

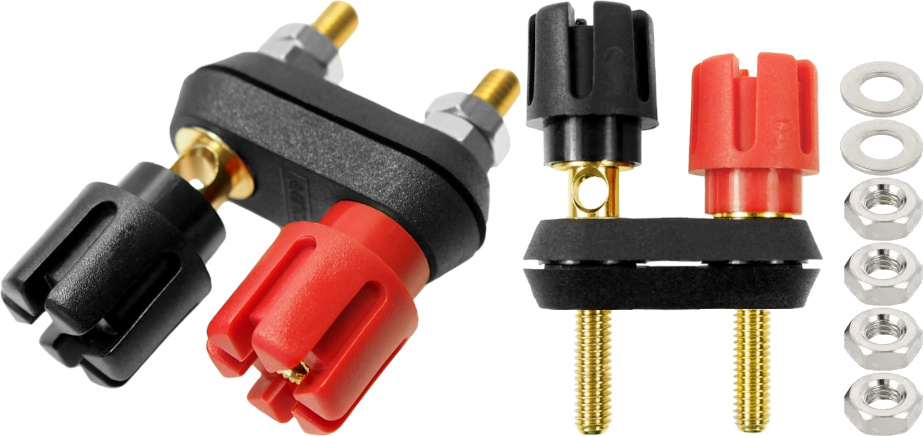

TPP3 Non touch-proof dual assemblies. ⌀4 mm cross hole. TPP2 also available with a ⌀2 mm cross hole.
CL159701 TPP3MS 2BA assembly.
CL159702 TPP3MS 2BA in gold plate with no nuts or washers.
FCR159701 TPP3C assembly in nickel with a 10 × 32 UNF thread.
-
TPP4 Fully touch-proof dual assemblies. ⌀4 mm cross hole. These are supplied with a plain threaded spindle rather than solder spill.
CL159705 TPP4 touchproof assembly.
-

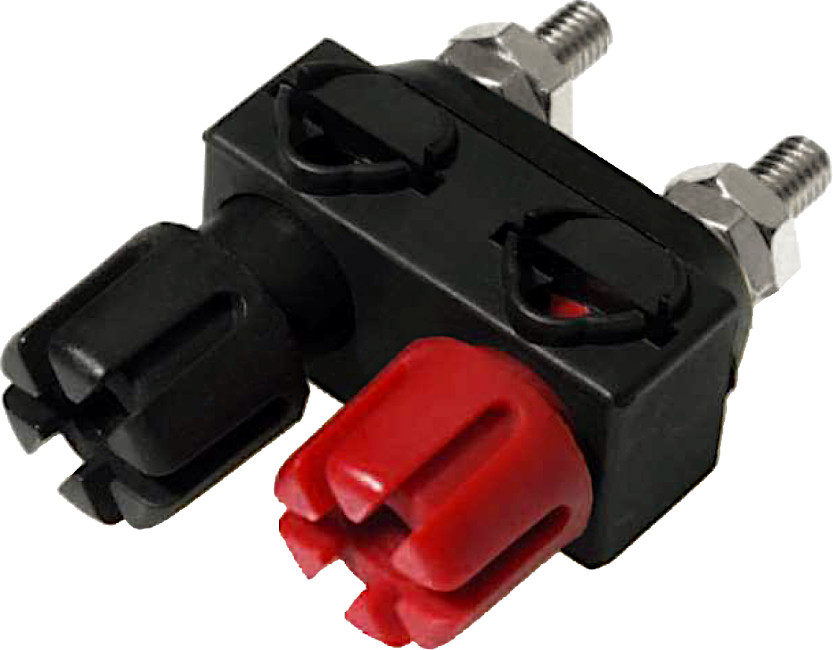

TPP5 Fully touch-proof dual assemblies. ⌀4 mm cross hole and spade terminal slot.
CL159706X1 TPP5 red and black, unassembled.
CL159706X1A TPP5 red and black, assembled.
CL159706X5 TPP5R black and red unassembled.
CL159706X5A TPP5R black and red assembled.
CL159706YA TPP5MSG red and black assembled, gold plated.
-

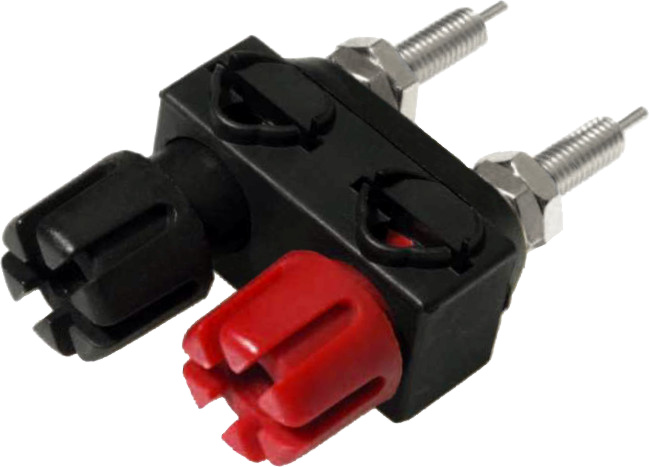

TPP5CT PC Fully touch-proof dual assemblies. ⌀4 mm cross hole and spade terminal slot. For PCB mounting.
CL159706PA TPP5CT PC red and black, unassembled.
CL159706PAA TPP5CT PC red and black, assembled.
CL159706PB TPP5CT PC black and red, unassembled.
CL159706PBA TPP5CT PC black and red, assembled.
-
TPP60 Dual version of TP60. Rated 60 A with 3 mm wide slot and 6 mm diameter cross hole. Nickel plated, short, long or PCB mounting spindles. Coloured, Colored, castellated knobs.
CL159855 TPP60S Red/Black, nickel plated.
CL159856 TPP60S Black/Red, nickel plated.
-
TPP60CSV Dual version of TP60. Rated 60 A with 3 mm wide slot and 6 mm diameter cross hole. Gold plated, short, long or PCB mounting spindles. Clear, castellated knobs.
CL159842C TPP60CSV Clear, Red / Black, gold plated.
Please also see our spring terminals.
Terminal Binding Posts - general information
Please contact Cliff™ sales for more information.
