Mono, Stereo and 4-Pole Jack Plugs

The Cliff™ range of professional quality, mono and stereo jack plugs is designed for use in many applications including audio, computer, military and industrial uses. Our tip, ring, sleeve (TRS) connectors are manufactured from solid nickel plated brass with high temperature phenolic resin / PBT insulators and either chrome plated brass or tough ABS covers.

Some models are available with plastic covers in seven standard colours colors for easy identification.

All versions feature a cable clamp, which is an integral part of the ground screen contact and clamps firmly without damaging the cable.

100 pieces per standard pack.

Please see the PDF data sheets for details.

2.5 mm, 3.5 mm and ¼″ Mono and Stereo Jack Plugs (opens in a new window).

Cliffcon ¼″ JumboJack Plugs (opens in a new window).

Also see our jack sockets, combi-jack XLR sockets, optical jacks, phono, DIN and XLR connectors.

2.5 mm Jack Plugs

JPO-25 2.5 mm mono unscreened jack plug. Black plastic body only. Careful soldering assembly required. Maximum cable diameter ⌀ 3.5 mm
- FC6814
P6CD 2.5 mm mono unscreened jack plug. Maximum cable diameter ⌀ 4.0 mm. Also available subject to minimum quantity are models with a low profile barrel and strain relief. Please contact our sales department for more details.
- FC1066D P6C-D.

3.5 mm Jack Plugs

P6CA 3.5 mm mono unscreened jack plug. Maximum cable diameter ⌀ 5.3 mm. Also available subject to minimum quantity are models with a low profile barrel and strain relief. Please contact our sales department for more details.
- FC1066A P6C-A.
JPS35 3.5 mm stereo unscreened jack plug. Black plastic body. Maximum cable diameter ⌀ 5.0 mm.
- FT6300 JPS-35.
- FT6301 JPS-35G. Gold plated.

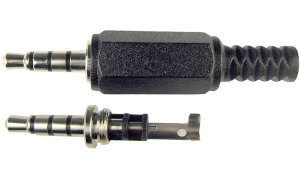

4 pole 3.5 mm assembly type jack plug. Maximum cable diameter ⌀ 4.0 mm.

Please note that this plug is not to be used with the FC68128 jack socket.
- FC68124
4 pole, EMI / RFI shielded, metal, 3.5 mm assembly type jack plug. Maximum cable diameter ⌀ 4.0 mm.

Please note that this plug is not to be used with the FC68128 jack socket.
- FC68124M
4 pole 3.5 mm jack plug and 2m cable. For use with FC68128 jack socket.

FC68122C 3.5 mm 4-pole jack plug and 2m cable.

¼″ Jack Plugs

P1C ¼″ (quarter inch, 6.35 mm) mono screened jack plug. Metal body. Maximum cable diameter ⌀ 7.0 mm.
- FM1002 P1C rivetted construction.
P2C ¼″ mono unscreened jack plug. Plastic body available in various standard colours. colors. Maximum cable diameter ⌀ 6.5 mm.

EOL when stocks are used.
- FM1012 P2C rivetted construction.
P2C Jack Plug Covers ¼″ jack plug covers for FM1012 in a variety of colours colors.

EOL when stocks are used.
- FM1012SA1L Blue cover for FM1012.
- FM1012SA1G Green cover for FM1012.
- FM1012SA1R Red cover for FM1012.
- FM1012SA1Y Yellow cover for FM1012.
- FM1012SA1W White cover for FM1012.
P2C ¼″ mono unscreened jack plug. Black plastic body with cable strain relief. Maximum cable diameter ⌀ 6.0 mm.
- FM1022 P2C mono jack plug.
P3C ¼″ stereo screened jack plug. Metal body. Maximum cable diameter ⌀ 6.4 mm with grommet removed.
- FM1044 P3C rivetted construction.
FM1026 ¼″ stereo unscreened jack plug. Plastic body with cable strain relief. Maximum cable diameter ⌀ 6.0 mm. Replaces FM1046.
SEP1C Professional ¼″ mono screened 90 ° right angle jack plug. Metal body with black plastic cover. Maximum cable diameter ⌀ 6.4 mm.
- FM1088 SEP/1C Pro mono.
SEP2C ¼″ mono unscreened 90 ° right angle jack plug. Plastic body available in various standard colours. colors. Maximum cable diameter ⌀ 5.0 mm.

EOL when stocks are used.
- FM1095 SEP/2C mono
SEP3C Professional ¼″ stereo screened 90 ° right angle jack plug. Metal body with black plastic cover. Maximum cable diameter ⌀ 6.4 mm.
- FM1098 SEP/3C Pro stereo.
FM1105B Black ¼″ mono 90 ° right angle jack plug. Maximum cable diameter ⌀ 6.5 mm.
FM1105W White ¼″ mono 90 ° right angle jack plug. Maximum cable diameter ⌀ 6.5 mm.
FM1106B Black ¼″ stereo 90 ° right angle jack plug. Maximum cable diameter ⌀ 6.5 mm.
FM1106W White ¼″ stereo 90 ° right angle jack plug. Maximum cable diameter ⌀ 6.5 mm.

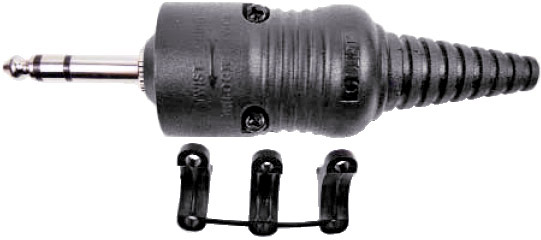

Cliffcon™ ¼″ JumboJack straight offers a solution to the problem of connecting large section cables to conventional ¼″ jack plugs. There are applications, in professional sound installations, where it is necessary to link equipment with low resistance cables. Such cables tend to have large cross section conductors with diameters up to 15 mm. Connecting such cables to conventional jack plugs is difficult due to the mismatch in size. Our JumboJack allows large diameter cable to be connected to conventional ¼″ jack plug contacts with a large and secure screw-type cable clamp. The cable grommet is useable up to ⌀12.5 mm and may be discarded for ⌀15 mm.
- CL2075 mono
- CL2075S stereo
Cliffcon™ ¼″ JumboJack 90 ° right angle offers a solution to the problem of connecting large section cables to conventional ¼″ jack plugs. There are applications, in professional sound installations, where it is necessary to link equipment with low resistance cables. Such cables tend to have large cross section conductors with diameters up to 15 mm. Connecting such cables to conventional jack plugs is difficult due to the mismatch in size. Our JumboJack allows large diameter cable to be connected to conventional ¼″ jack plug contacts with a large and secure screw-type cable clamp. The cable grommet is useable up to ⌀12.5 mm and may be discarded for ⌀15 mm.
- CL2076 mono
- CL2076S stereo

Custom Moulded Molded Cables

Cliff™ offer a complete service to design and manufacture custom moulded molded cable assemblies according to your specific requirements.

Assembled cables include audio cables such as jack, XLR, DIN (MIDI), Bantam and optical, DMX512 cables for the professional lighting industry and power and interconnect cables for computer peripherals, medical and test equipment.
- 2.5 mm jack leads.
- 3.5 mm jack leads.
- ¼″ (quarter inch, 6.35 mm) jack leads.
- XLR leads.
- DMX leads.
- DIN leads.
- DC jack leads.
- optical leads.
- Bantam jack leads.

Please contact Cliff™ sales for more information.
