¼″ S1V Vertical Mount Jack Sockets

The compact design offers the highest board packing density available. These sockets support auto-insertion and snap-in PCB mounting to facilitate assembly and wave soldering.The S1V is available with optional chassis grounding, different fixing nuts and several circuit options.





Features

• Compact vertical PCB mounting with 24 mm stand-off gives high packing density.
• Snap-in PCB mounting to facilitate pre-assembly and wave soldering.
• Optional chassis grounding versions. Grounding chassis to plug and PCB.
• Body design supports auto-insertion.
• Compatible with most similar types.



Specification

• Withstand Voltage: 2000 V DC minimum.
• Maximum Current: 5 A.
• Temperature Rating: −10 to +70 °C.
• Life: Minimum 10,000+ operations.
• Nominal Contact Resistance: < 50 mΩ.



Technical Data

Designed to receive both mono and stereo ¼″ jack plugs, the S1V socket is moulded molded in durable, grade-1, black, nylon with Cliff™ Ni-Ag alloy, self-cleaning contacts for superior performance and reliability.



The S1V is supplied with a fully threaded nose and a nylon nut as standard. It can also be supplied with a half threaded nose and a nickel-plated-brass, hexagonal or slotted ring nut. Mounting hardware, if required, is supplied unassembled.



The S1V can also be supplied with a prefitted, chassis-grounding, EMI / RFI screen if required, (add suffix X to the product code, for example CL11061X S1VX/SBB).



Please contact our sales office for details of our non thread bush versions which are available for special orders.



See the PDF data sheet: ¼″ S1V Vertical PCB Mounting Jack Sockets (opens in a new window).

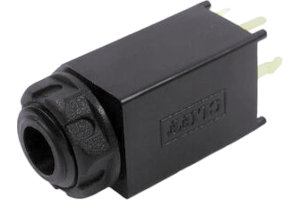

• CL11061 S1V/SBB ¼″ PCB mounting vertical jack socket - stereo, without chassis grounding.



• CL11061S S1V/SBB ¼″ PCB mounting vertical jack socket - stereo, without chassis grounding, with special (half-threaded) nose.

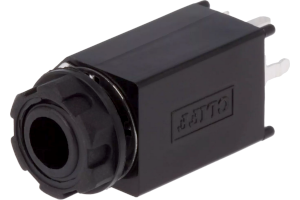

• CL11061X S1VX/SBB ¼″ PCB mounting vertical jack socket - stereo, with chassis grounding screen.



• CL11062 S1V/SSB ¼″ PCB mounting vertical jack socket - stereo, without chassis grounding.



• CL11062S S1V/SSB ¼″ PCB mounting vertical jack socket - stereo, without chassis grounding, with special (half-threaded) nose.



• CL11062X S1VX/SSB ¼″ PCB mounting vertical jack socket - stereo, with chassis grounding screen.



• CL11063 S1V/SBS ¼″ PCB mounting vertical jack socket - stereo, without chassis grounding.

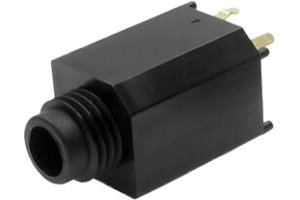

• CL11063S S1V/SBS ¼″ PCB mounting vertical jack socket - stereo, without chassis grounding, with special (half-threaded) nose.



• CL11063X S1VX/SBS ¼″ PCB mounting vertical jack socket - stereo, with chassis grounding screen.

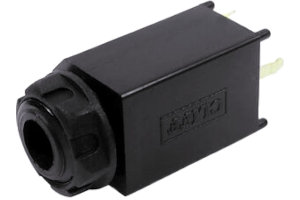

• CL11064 S1V/SSS ¼″ PCB mounting vertical jack socket - stereo, without chassis grounding.



• CL11064S S1V/SSS ¼″ PCB mounting vertical jack socket - stereo, without chassis grounding, with special (half-threaded) nose.



• CL11064X S1VX/SSS ¼″ PCB mounting vertical jack socket - stereo, with chassis grounding screen.



• CL11065 S1V/SNB ¼″ PCB mounting vertical jack socket - stereo, without chassis grounding.



• CL11065S S1V/SNB ¼″ PCB mounting vertical jack socket - stereo, without chassis grounding, with special (half-threaded) nose.



• CL11065X S1VX/SNB ¼″ PCB mounting vertical jack socket - stereo, with chassis grounding screen.



• CL11066 S1V/SNS ¼″ PCB mounting vertical jack socket - stereo, without chassis grounding.



• CL11066S S1V/SNS ¼″ PCB mounting vertical jack socket - stereo, without chassis grounding, with special (half-threaded) nose.



• CL11066X S1VX/SNS ¼″ PCB mounting vertical jack socket - stereo, with chassis grounding screen.



•

  FC1440 Hexagonal, plated steel nut for S1 or S2 jack socket. 7/16″ UNF, 20 TPI.



•

  CL1436 Slotted, plated steel, ring nut for S1 or S2 jack socket. 7/16″ UNF, 20 TPI.



•



  Coloured Colored nylon nut for S1 or S2 jack socket. 7/16″ UNF, 20 TPI. Available in various colours. colors.



  CL1408 black.



  Show/hide colours. colors.



  •



    CL1409 white.



  •



    CL1410 grey gray.



  •



    CL1412 blue.



  •



    CL1414 green.



  •



    CL1416 red.



  •



    CL1420 yellow.







•

  Coloured Colored nylon nut for S1 or S2 jack socket. 7/16″ UNF, 20 TPI. Available in various colours. colors.



  FCR1408 black.



  Show/hide colours. colors.



  • FCR1409 white.



  • FCR1410 grey gray.



  • FCR1412 blue.



  • FCR1414 green.



  • FCR1416 red.



  • FCR1420 yellow.









¼″ S1VS Vertical Mount Metal Nose Jack Sockets

Designed to receive both mono and stereo ¼″ jack plugs, the S1VS socket is moulded molded in durable, grade-1, black nylon.



The S1VS can be supplied with an M9 × 0.075 mm fine thread pitch, 2 mm thick, nickel-plated, brass, hexagonal nut.



Mounting hardware, if required, is supplied unassembled.



Several different switching circuit options are available.





Features

• Compact vertical PCB mounting with 24 mm stand-off gives high packing density.
• Metal nose for grounding chassis to plug and PCB.
• Body design supports auto-insertion.



Specification

• Withstand Voltage: 2000 V DC minimum.
• Maximum Current: 5 A.
• Temperature Rating: −10 to +70 °C.
• Life: Minimum 10,000+ operations.
• Nominal Contact Resistance: < 50 mΩ.



See the PDF data sheet: ¼″ S1VS Vertical PCB Mounting Jack Sockets (opens in a new window).





• FM6700 S1VS/SBB ¼″ PCB mounting vertical jack socket with metal front thread - stereo.



• FM6701 S1VS/SSB ¼″ PCB mounting vertical jack socket with metal front thread - stereo.



• FM6703 S1VS/SSS ¼″ PCB mounting vertical jack socket with metal front thread - stereo.



• FM6704 S1VS/SNB ¼″ PCB mounting vertical jack socket with metal front thread - mono.



• M9 × 0.075 mm fine thread pitch, 2 mm thick, nickel-plated, brass, hexagonal nut for S1VS jack socket. Note that this has a different thread to FC1440.
