DC Power Connectors

The CLIFF™ range of DC power connectors is comprised of several different models for chassis mounting and horizontal or vertical PCB mounting. Our products are manufactured to strict quality and performance standards. All plastic parts are a minimum UL 94 HB for toughness and durability.



The standard colour color is black and some models are available with a choice of pin diameters and switched contacts. Typical applications include portable equipment of all types, signal processors and power supplies.

For more information please see the data sheets:

DC Power Connectors (opens in a new window).

Surface Mounted SMD DC Sockets (opens in a new window).



DC Power Sockets





• DC-8 PCB mounting, pin ring type. Rated 12V / 1A. Miniature version for PCB mounting.



  FC68145  1.3 mm diameter pin.



• DC-8N PCB mounting, pin ring type. Rated 12V / 1A. Sub-miniature (narrow) version for PCB mounting. This smaller footprint is useful where PCB space is tight. Not pin compatible with DC-8. A surface mounting version is available.



  FC681455  1.3 mm diameter pin.



• DC-8S Designed for surface mounting assembly. Rated 12V / 1A. Available as discrete or taped / reeled parts. Characteristics are similar to our versions with through hole legs. Supplied loose as standard or taped in 1000 / reel to order.



  • FC68145S   1.3 mm diameter pin (discrete).
  • FC68145ST  1.3 mm diameter pin (taped).



• DC-9 PCB mounting, pin ring type. Rated 24V / 3A.



  • FC68146  DC-9  2.1 mm diameter pin.



• DC-9A PCB mounting, pin ring type. Rated 12V / 5A.



  • FC681461 DC-9A 2.5 mm diameter pin.



• DC-10 PCB mounting, pin ring type with switch. Rated 12V / 5A.



  • FC68148 DC-10A  2.1 mm diameter pin.
  • FC68149 DC-10B  2.5 mm diameter pin.



• DC-10AS Designed for surface mounting assembly. Rated 12V / 2A. Available as discrete or taped / reeled parts. Characteristics are similar to our versions with through hole legs. Supplied loose as standard or taped in 1000 / reel to order.



  • FC68148S  DC-10AS   2.1 mm diameter pin (discrete).
  • FC68148ST DC-10AST  2.1 mm diameter pin (taped).



• DC-10BS Designed for surface mounting assembly. Rated 12V / 2A. Available as discrete or taped / reeled parts. Characteristics are similar to our versions with through hole legs. Supplied loose as standard or taped in 1000 / reel to order.



  • FC68149S  DC-10BS   2.5 mm diameter pin (discrete).
  • FC68149ST DC-10BST  2.5 mm diameter pin (taped).



• DC-10L Dual socket, solder tag, pin ring type with switch. Patented design ensures superior contact for both 2.1 mm and 2.5 mm plugs. PBT body for superior temperature characteristics. Copper alloy / tin plated contacts. RoHS / REACH compliant. Rated 12V / 5A.



  FC681465   2.1 and 2.5 mm diameter pin, black.



•



  FCR681466  2.1 and 2.5 mm diameter pin, white.



• DC-10LP Dual socket, 90° PCB mounting, pin ring type with switch. Patented design ensures superior contact for both 2.1 mm and 2.5 mm plugs. PBT body for superior temperature characteristics. Copper alloy / tin plated contacts. RoHS / REACH compliant. Rated 12V / 5A.



  FC681465P   2.1 and 2.5 mm diameter pin, black.



•



  FCR681466P  2.1 and 2.5 mm diameter pin, white.



• DC-10LS Dual socket, surface mounting, pin ring type with switch. Patented design ensures superior contact for both 2.1 mm and 2.5 mm plugs. PA9T (UL 94 V-0) body for superior temperature characteristics. Copper alloy / tin plated contacts. RoHS / REACH compliant. SMD surface mounted device. Rated 12V / 2A.



  • FC681465S   2.1 and 2.5 mm diameter pin.
  • FC681465ST  2.1 and 2.5 mm diameter pin, taped.



• SCD-026 Chassis mounting.



  • FC681445 SCD-026   2.1 mm diameter pin.
  • FC681446 SCD-026A  2.5 mm diameter pin.



• 2.1mm DC Panel Socket Rated 3A at 30V.



  • FC681521  Unassembled.
  • FC681521A Assembled.



•

  Round M12.7 thread. Panel mounting. Supplied with nut.

  This round style DC socket is available with either a 2.1 mm or a 2.5 mm pin.

  • Rated: 12V DC 1A.
  • Insulation resistance: 100MΩ at 500 V DC.
  • Contact resistance: pin to contact (T-TS): Initial = 30mΩ. After life test = 60mΩ.
  • Contact resistance: plug shield to socket (t,s) Initial = 50mΩ. After life test = 100mΩ.



  • FC681473  2.1 mm diameter pin.
  • FC681474  2.5 mm diameter pin.



• DC-12A PCB mounting, pin ring type. Rated 12V / 5A.



  FC681485  2.1 mm diameter pin.



• DC-13 Panel mounting, pin ring type with switch. Rated 12V / 5A.



  • FC681492 DC-13A   2.1 mm diameter pin.
  • FC681493 DC-13B   2.5 mm diameter pin.



•

  FC681495 2.5 mm DC power socket. Supplied taped and reeled, 100 per reel.

  • Rated 20 V / 10A 43μF.
  • Insertion force 2.5kg maximum.
  • Withdrawal force 1.0kg to 2.5kg.
  • Insulation resistance >100MΩ at 500 V DC.
  • Withstand voltage 250 V AC for 1 minute.
  • Contact resistance < 7mΩ.



•

  Locking DC Power Socket - Black.

  • Contact resistance 30mΩ maximum.
  • Current rating 16V DC / 2A maximum.
  • Insulation resistance 100MΩ minimum at 500 V DC.
  • Dielectric withstand voltage 500 V AC for 1 minute.



  • FC681478  2.1 mm diameter pin - black.
  • FC681477  2.5 mm diameter pin - black.



•

  Locking DC Power Socket - White.

  • Contact resistance 30mΩ maximum.
  • Current rating 16V DC / 2A maximum.
  • Insulation resistance 100MΩ minimum at 500 V DC.
  • Dielectric withstand voltage 500 V AC for 1 minute.



  • FC681478W  2.1 mm diameter pin - white.
  • FC681477W  2.5 mm diameter pin - white.





DC Power Plugs





• Locking DC Power Plugs. Rewireable. For use with locking DC power sockets.



  • FC6814785  2.1 mm diameter pin.
  • FC6814775  2.5 mm diameter pin.



• Locking DC Power Cable. Black 2m PVC cable. 24 AWG. Twin core. Rated 300 V. For use with locking DC power sockets.



  FC6814761  2.1 mm diameter pin.



• Locking DC Power Cable. White 2m PVC cable. 24 AWG. Twin core. Rated 300 V. For use with locking DC power sockets.



  FC6814761W  2.1 mm diameter pin.

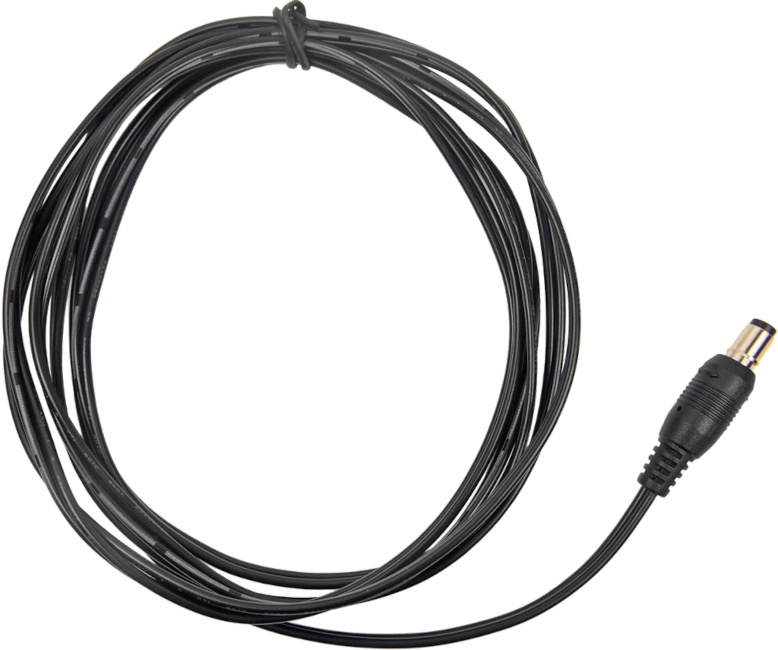

• Locking DC Power Cable. Black 2m PVC cable. 24 AWG. Twin core. Rated 300 V. For use with locking DC power sockets.



  FC6814751  2.5 mm diameter pin.



• Locking DC Power Cable. White 2m PVC cable. 24 AWG. Twin core. Rated 300 V. For use with locking DC power sockets.



  FC6814751W  2.5 mm diameter pin.



• DC-PP1 DC line connector. Rated 12V / 5A. 32.7 mm long.



  FC68147  2.1 mm diameter pin.



• DC-PP1 DC line connector. Rated 12V / 5A. 29.5 mm long.



  FC681467  2.1 mm diameter pin.



• DC-PP2 DC line connector. Rated 12V / 5A. 32.7 mm long.



  FC681471  2.5 mm diameter pin.



• DC-PP2 DC line connector. Rated 12V / 5A. 29.5 mm long.



  FC6814671  2.5 mm diameter pin.



• DC-PP3 DC line connector. Rated 12V / 5A. 32.5 mm long.



  FA67555  1.3 mm diameter pin.





Battery Connectors





• CCB-1 9V PP3 battery connector. Tough moulded molded body. Cable is 220 mm long, UL 1007, 24 AWG, CSA type TR-64 90°C.



  FC6830 9V PP3 battery connector.



• CCB-1A 9V PP3 battery connector. Tough moulded molded body. Cable is 220 mm long, UL 1007, 24 AWG, CSA type TR-64 90°C.



  FC6831 9V PP3 battery connector T-type.



• 3-Way-Mini 9V PP3 battery connector to three-way 2.54 mm mini connector (0.11″pitch). Tough moulded molded body. Cable is 320 mm long, UL 1007, 24 AWG, CSA type TR-64 90°C.



  FC68306 9V PP3 battery connector to 3-way mini connector.





Please contact Cliff™ sales for more information.
