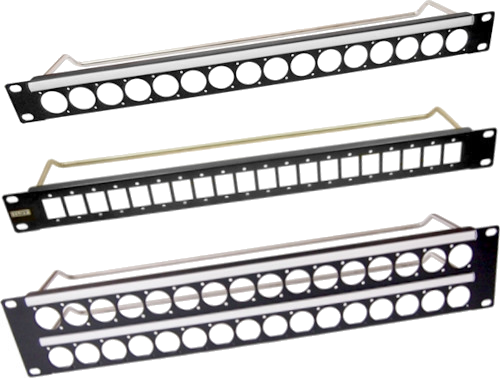

Empty 1U and 2U 19″ Panels for Rack Mounting
- Please also see our
- loaded panels,
- feedthrough connectors,
- XLR audio and XLR format connectors and
- USB connectors.
-
1U. 16 XLR-format connectors.
16 circular cut-outs of 24 mm diameter. Cable strain-relief bar. Paper identification strip. Black, powder-coated steel.
- CP30150 Plain 3.2 mm diameter connector mounting holes.
- CP30151 M3 × 0.5 threaded connector mounting holes.
- CP30152 #4-40 UNC threaded connector mounting holes.
-
1U. 16 SLIM / DualSLIM connectors.
16 rectangular cut-outs (17.3 × 22.86 mm). 25.4 mm between cut-outs. Cable strain-relief bar. Black, powder-coated steel.
- CP30158 Plain 3.2 mm diameter connector mounting holes.
- CP30159 M3 × 0.5 threaded connector mounting holes.
- CP30160 #4-40 UNC threaded connector mounting holes.
-
1U. 20 SLIM / DualSLIM connectors.
20 rectangular cut-outs (17.3 × 22.86 mm). 20.8 mm between cut-outs. Cable strain-relief bar. Black, powder-coated steel.
- CP30161 Plain 3.2 mm diameter connector mounting holes.
- CP30162 M3 × 0.5 threaded connector mounting holes.
- CP30163 #4-40 UNC threaded connector mounting holes.
-
2U. 32 XLR-format connectors.
32 circular cut-outs of 24 mm diameter. Two cable strain-relief bars. Two label strips. Black, powder-coated steel.
- CP30155 Plain 3.2 mm diameter mounting holes.
- CP30156 M3 × 0.5 threaded mounting holes.
- CP30157 #4-40 UNC threaded mounting holes.
Please contact Cliff™ sales for more information.
