XLR Audio Connectors

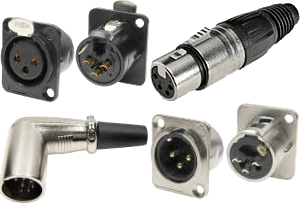

Metal XLR Plugs and Sockets
For applications where metal body connectors are specified, our M series will meet the most severe specifications. All electrical contacts are silver plated by a process which gives low noise levels. No increase in noise level may be expected over 5000 plug / un-plug operations. Black finish is available subject to a viable quantity. Large solder bucket contacts are used to make wiring easy. Very cost effective from our factory in China. Available in 3, 4, 5 and 7 pin versions.
Please also see our right angle multi position metal XLR plugs.
Female Sockets

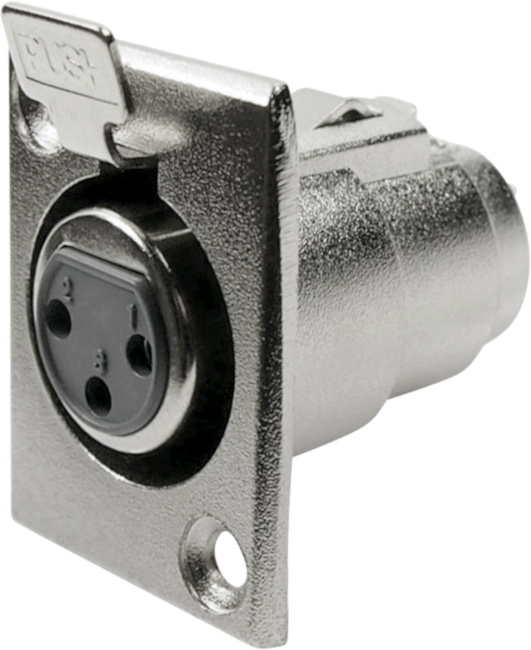

3ACF/M FC6100 3 pole metal female socket. We also make a plastic PCB version of this 3 pin XLR socket.
3ACF/BM FC6101 3 pole black metal female socket. We also make a plastic PCB version of this 3 pin XLR socket.
3DCF/NM FC61900N 3 pole bickel metal female socket with an alternatively sized (feedthrough connector style) panel cutout.
3DCF/BM FC61900 3 pole black metal female socket with an alternatively sized (feedthrough connector style) panel cutout.

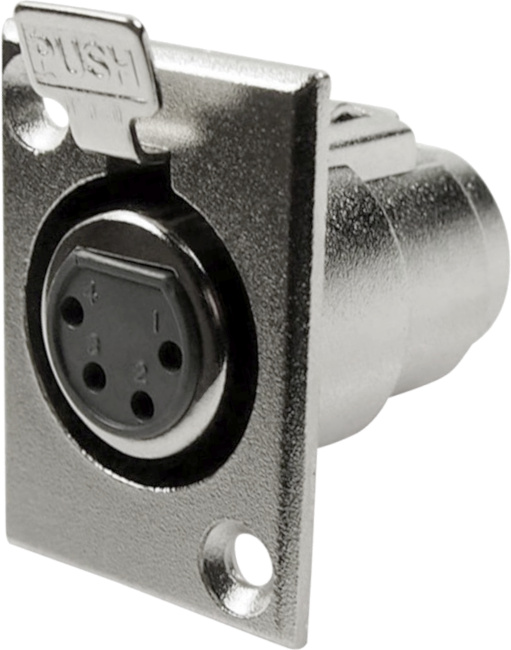

4ACF/M FC6120 4 pole metal female socket.
4ACF/BM FC6121 4 pole black metal female socket.

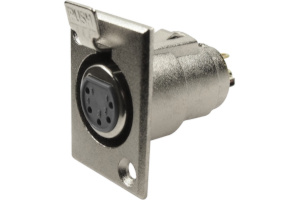

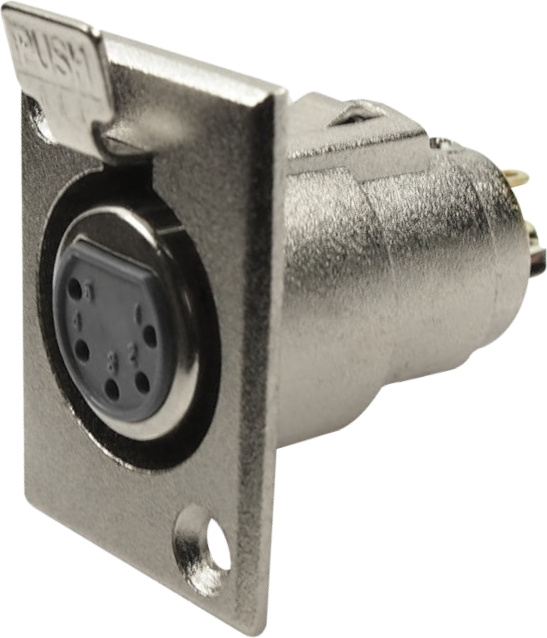

5ACF/M FC6170 5 pole metal female socket. We also make a plastic PCB version of this 5 pin XLR socket.
5ACF/BM FC6171 5 pole black metal female socket. We also make a plastic PCB version of this 5 pin XLR socket.
5DCF/BM FC61950 5 pole black metal female socket with latch. Suitable for our 1U and 2U 19″ panels for rack mounting.
7ACF/M FC6187 7 pole metal female socket.
Male Sockets

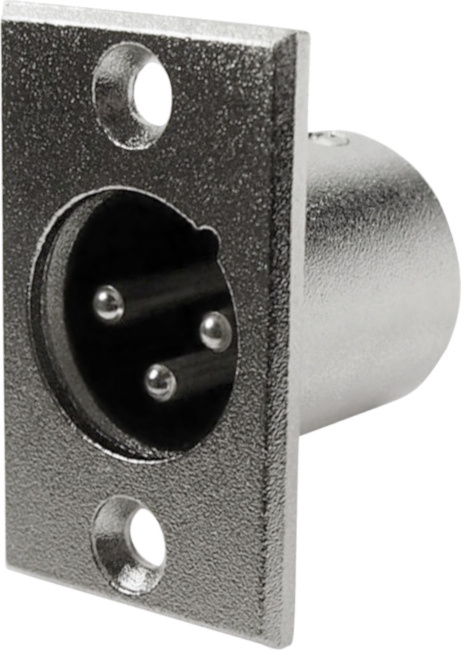

3ACM/M FC6105 3 pole metal male socket. We also make a plastic PCB version of this 3 pin XLR socket.
3ACM/BM FC6106 3 pole black metal male socket. We also make a plastic PCB version of this 3 pin XLR socket.
3DCM/NM FC61905N 3 pole nickel metal male socket with an alternatively sized (feedthrough connector style) panel cutout.
3DCM/BM FC61905 3 pole black metal male socket with an alternatively sized (feedthrough connector style) panel cutout.

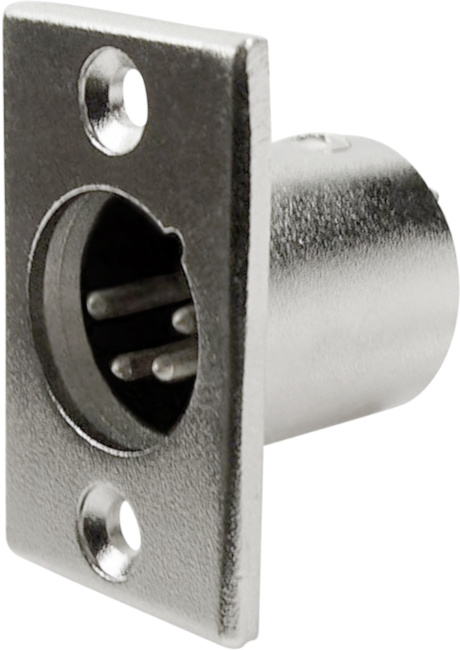

4ACM/M FC6125 4 pole metal male socket.
4ACM/BM FC6126 4 pole black metal male socket.

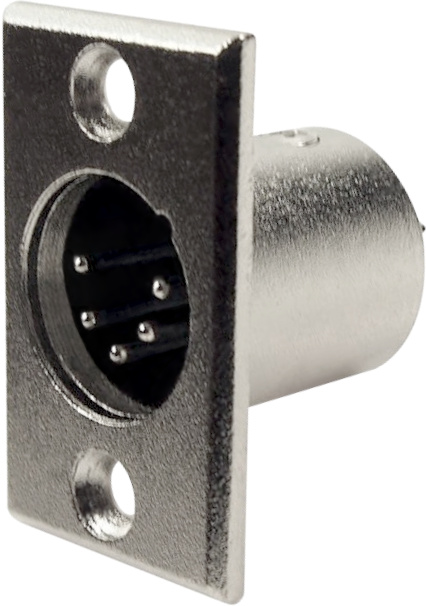

5ACM/M FC6175 5 pole metal male socket. We also make a plastic PCB version of this 5 pin XLR socket.

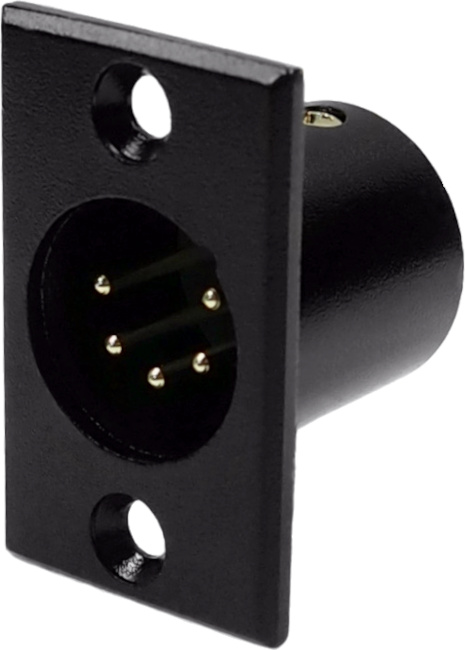

5ACM/BM FC6176 5 pole black metal male socket. We also make a plastic PCB version of this 5 pin XLR socket.
5DCM/BM FC61955 5 pole black metal male socket. Suitable for our 1U and 2U 19″ panels for rack mounting.
7ACM/M FC6185 7 pole metal male socket.
Female Plugs

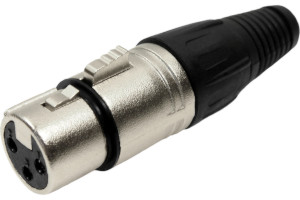

3APF/M FC6140 3 pole metal female plug with rubber seal. Screw up collet with 6 element cable clamp.
3APF/BM FC6141 3 pole black metal female plug with rubber seal. Screw up collet with 6 element cable clamp.
FC60953N 3 pole metal female right-angle plug.

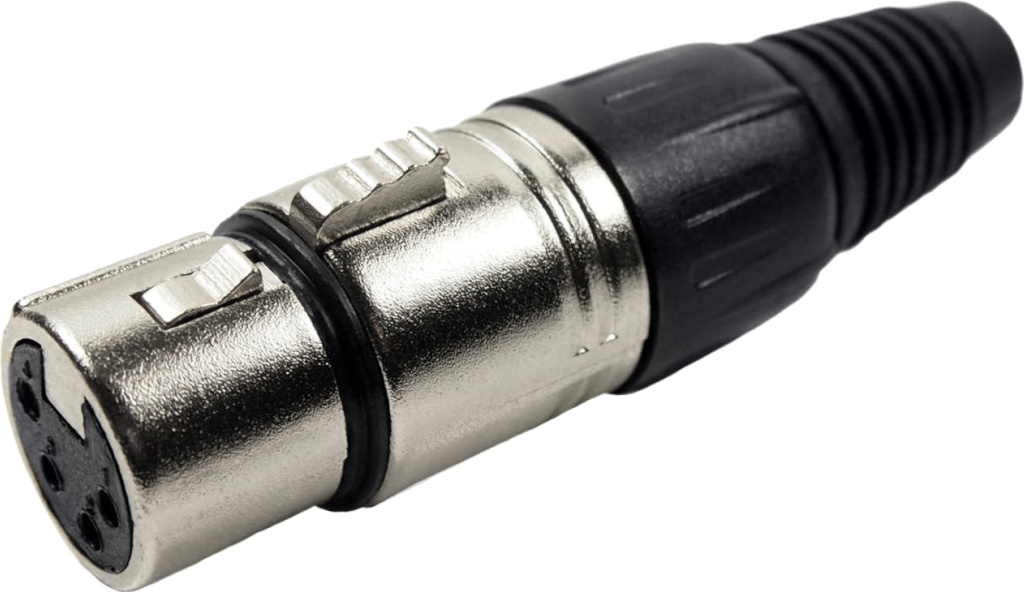

4APF/M FC6150 4 pole metal female plug with rubber seal. Screw up collet with 6 element cable clamp.
4APF/BM FC6151 4 pole black metal female plug with rubber seal. Screw up collet with 6 element cable clamp.
FC60954N 4 pole metal female right-angle plug.

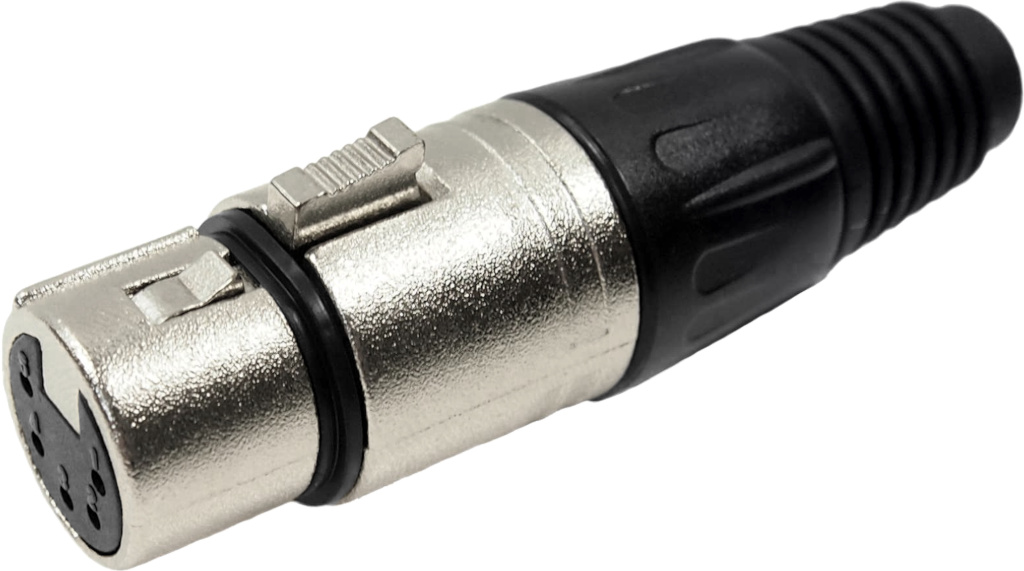

5APF/M FC6165 5 pole metal female plug with rubber seal. Screw up collet with 6 element cable clamp.
5APF/BM FC6166 5 pole black metal female plug with rubber seal. Screw up collet with 6 element cable clamp.
FC60955N 5 pole metal female right-angle plug.
7APF/M FC6182 7 pole female plug. Screw pressure cable clamp.
FC60957N 7 pole metal female right-angle plug.
Male Plugs
3APM/M FC6130 3 pole metal male plug. Screw up collet with 6 element cable clamp.
3APM/BM FC6131 3 pole black metal male plug. Screw up collet with 6 element cable clamp.
FC60963N 3 pole metal male right-angle plug.
4APM/M FC6155 4 pole metal male plug. Screw up collet with 6 element cable clamp.
4APM/BM FC6156 4 pole black metal male plug. Screw up collet with 6 element cable clamp.
FC60964N 4 pole metal male right-angle plug.

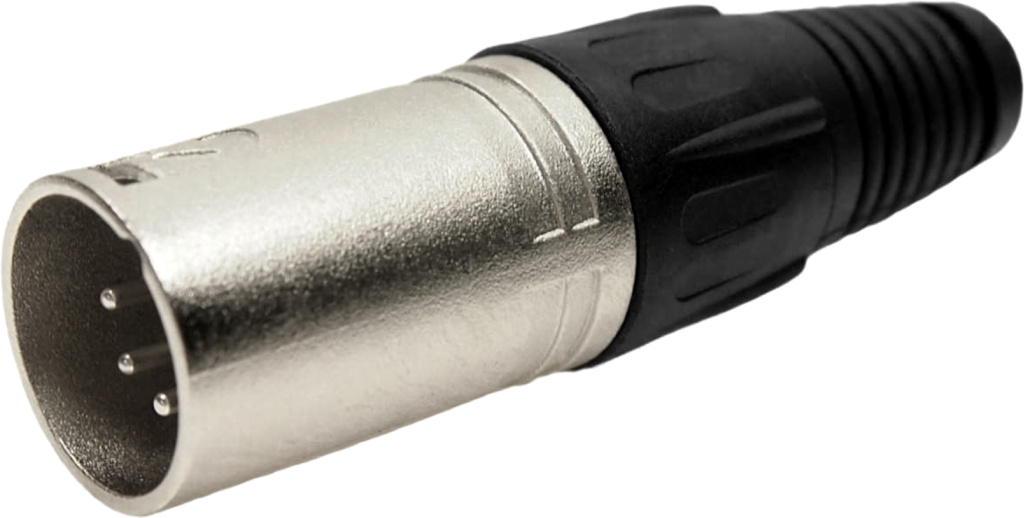

5APM/M FC6160 5 pole metal male plug. Screw up collet with 6 element cable clamp.
5APM/BM FC6161 5 pole black metal male plug. Screw up collet with 6 element cable clamp.
FC60965N 5 pole metal male right-angle plug.
7APM/M FC6180 7 pole metal male plug. Screw pressure cable clamp.
FC60967N 7 pole metal male right-angle plug.
XLR Audio Connectors - general information
Please contact Cliff™ sales for more information.
