DualSLIMs Narrow Plastic Right-Angled Feedthrough Connectors - Front or Rear Mounting
The FT series of true, feed through, data connectors for electrical instrumentation are perfect for developing custom I/O configurations for wall plates, rack panels, etc.
The DualSLIMs are 19 × 35.5 mm, fit within a narrow 17.15 × 22.86 mm panel cutout and use common cabling for both connections. No soldering and no punch terminations - just use the standard cable for that particular connector style.

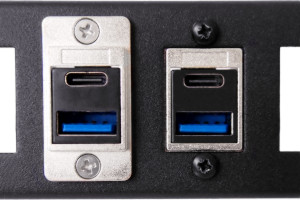

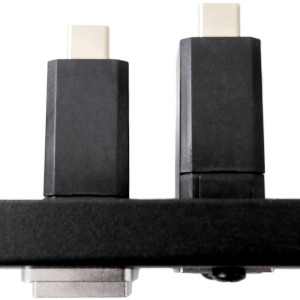

Mount from the front or the rear with various mounting hole options. Low rear profile.
Available in a variety of styles. Functionality is affected by cable quality, length and cable wiring configuration.
Jump down to HDMI, RJ45, USB 2, USB 3, USB-C, Blanks, Dust Covers.
Part of the CLIFF™ feedthrough connector range.
HDMI
-
HDMI 4K female to HDMI 4K female DualSLIM type-A, narrow plastic, front or rear mounting, right-angled, feedthrough connector. Gold-plated contacts and shell.
- CP30753 3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
- CP30753X 2.5 mm diameter plain mounting holes.
- CP30753X1 3.2 mm diameter plain mounting holes.
RJ45
-
RJ45 (8P8C) Cat.5e Unshielded UTP DualSLIM narrow, black, plastic, front or rear mounting, feedthrough connector. Gold-plated contacts.
- CP30751 3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
- CP30751X 2.5 mm diameter plain mounting holes.
- CP30751X1 3.2 mm diameter plain mounting holes.
-
RJ45 (8P8C) Cat.6 Unshielded UTP DualSLIM narrow, black, plastic, front or rear mounting, right-angled, feedthrough connector. Gold-plated contacts.
- CP30752 3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
- CP30752X 2.5 mm diameter plain mounting holes.
- CP30752X1 3.2 mm diameter plain mounting holes.
USB 2
-
USB 2.0 female to USB 2.0 female DualSLIM type-A, narrow plastic, front or rear mounting, right-angled, feedthrough connector. Gold-plated contacts.
- CP30754 3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
- CP30754X 2.5 mm diameter plain mounting holes.
- CP30754X1 3.2 mm diameter plain mounting holes.
USB 3
-
USB 3.0 female to USB 3.0 female DualSLIM type-A, narrow plastic, front or rear mounting, right-angled, feedthrough connector. Gold-plated contacts.
- CP30755 3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
- CP30755X 2.5 mm diameter plain mounting holes.
- CP30755X1 3.2 mm diameter plain mounting holes.
USB Type C
-
USB type C female to USB type C male DualSLIM narrow plastic, front or rear mounting, right-angled, feedthrough connector. Power Delivery (PD) compatible.
- CP30756 3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
- CP30756X 2.5 mm diameter plain mounting holes.
- CP30756X1 3.2 mm diameter plain mounting holes.
Blanking Plates
-
Blanking plate DualSLIM narrow plastic front or rear mounting feedthrough connector.
- CP30741 3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
- CP30741X 2.5 mm diameter plain mounting holes.
- CP30741X1 3.2 mm diameter plain mounting holes.

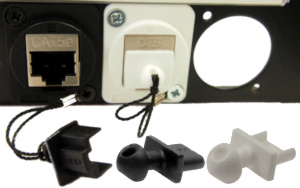

Gaskets and Dust Covers
-
SLIM / DUALSLIM Gaskets and Dust Covers.
These rubber gaskets are used as dust seals and for colour color identification.
- CP299812 Black SLIM / DUALSLIM gasket.
- CP299815 Green SLIM / DUALSLIM gasket.
- CP299817 Red SLIM / DUALSLIM gasket.
- CP299818 Blue SLIM / DUALSLIM gasket.
- CP299822 Black DUALSLIM (countersunk) gasket with dust cover.
- CP299825 Green DUALSLIM (countersunk) gasket with dust cover.
- CP299827 Red DUALSLIM (countersunk) gasket with dust cover.
- CP299828 Blue DUALSLIM (countersunk) gasket with dust cover.
- CP299832 Black DUALSLIM (countersunk) dust cover.
- CP299835 Green DUALSLIM (countersunk) dust cover.
- CP299837 Red DUALSLIM (countersunk) dust cover.
- CP299838 Blue DUALSLIM (countersunk) dust cover.
Please contact Cliff™ sales for more information.
