Metal Feedthrough Data Connectors in XLR shell
The FT series of true, feed through, data connectors for electrical instrumentation are perfect for developing custom I/O configurations for wall plates, rack panels, etc.
All fit within a standard XLR panel cutout and use common cabling for front and back connections. No soldering and no punch terminations - just use the standard cable for that particular connector style. Mount from the front or back. A low rear profile accommodates the tightest behind-the-panel spaces.
Available in a wide variety of styles. Functionality is affected by cable quality, length and cable wiring configuration.
Jump down to BNC, DisplayPort, Firewire, HDMI, Optical, RCA, RJ45, USB 2, USB 3, USB-C, VGA, Blanks, Dust Covers.
Please also see our feedthrough connectors, XLR audio and XLR format connectors and USB connectors.
BNC
BNC 50 Ω, nickel-plated metal frame. Universal dust cap CP30285 is suitable for BNC models.
- CP30118 50 ohms, nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
BNC 50 Ω insulated, nickel-plated metal frame. Universal dust cap CP30285 is suitable for BNC models.

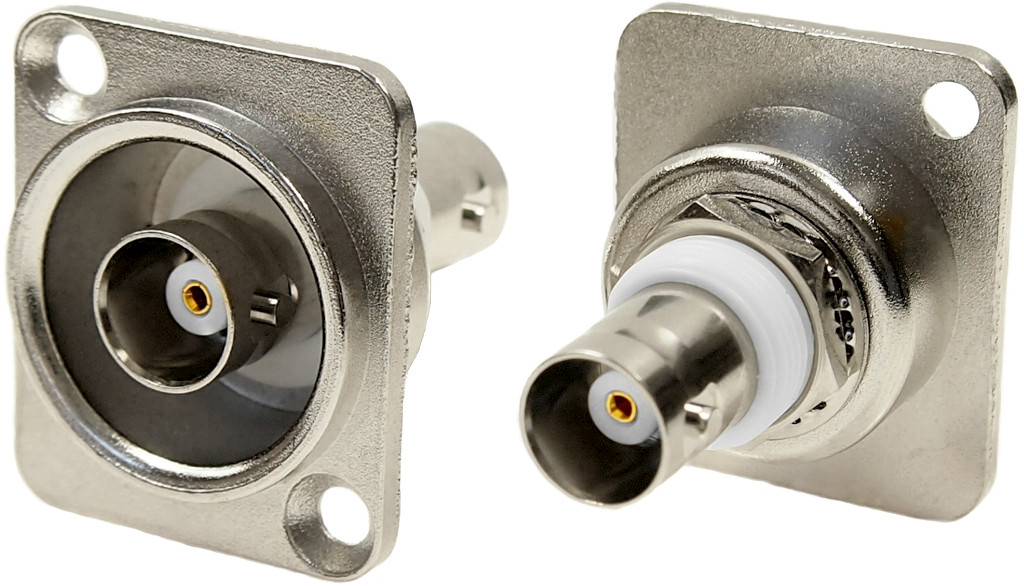

CP30123 50 ohms, nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
BNC 75 Ω, nickel-plated metal frame. Universal dust cap CP30285 is suitable for BNC models.
- CP30119 75 ohms, nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
BNC 75 Ω insulated, nickel-plated metal frame. Universal dust cap CP30285 is suitable for BNC models.
CP30124 75 ohms, nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
-
BNC 75 Ω - gold, nickel-plated metal frame. Universal dust cap CP30285 is suitable for BNC models.
CP303112GM 75 ohms, nickel-plated metal with countersunk mounting holes, 12 GHz, gold-plated.
DisplayPort
DisplayPort, horizontal mounting, nickel-plated zinc metal frame, nickel-plated iron shell, gold-plated copper contacts. Female to female. Front or rear mounting. Low rear profile.
DisplayPort to DisplayPort cables are available in 1m and 2m lengths.
CP30233M Nickel-plated zinc metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30233M3 Nickel-plated zinc metal with M3 threaded mounting holes.
Mini DisplayPort, horizontal mounting, nickel-plated metal frame, nickel-plated shell, gold-plated contacts.
DisplayPort to mini DisplayPort cables are available in 1m and 2m lengths.
CP30202M Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30202M3 Nickel-plated metal with M3 threaded mounting holes.
Firewire IEEE 1394
Firewire IEEE 1394 (Sony iLINK or Texas Instruments Lynx), horizontal mounting, nickel-plated metal frame. Optional black sealing cap CP30112 available.
CP30117 Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
HDMI
HDMI 4K female to HDMI 4K female type A, vertical mounting, nickel-plated metal frame, gold-plated shell and contacts.
CP30200GM Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30200GM3 Nickel-plated metal with M3 threaded mounting holes.
CP30294 Dedicated HDMI dust cover in black.
CP30294W Dedicated HDMI dust cover in white.

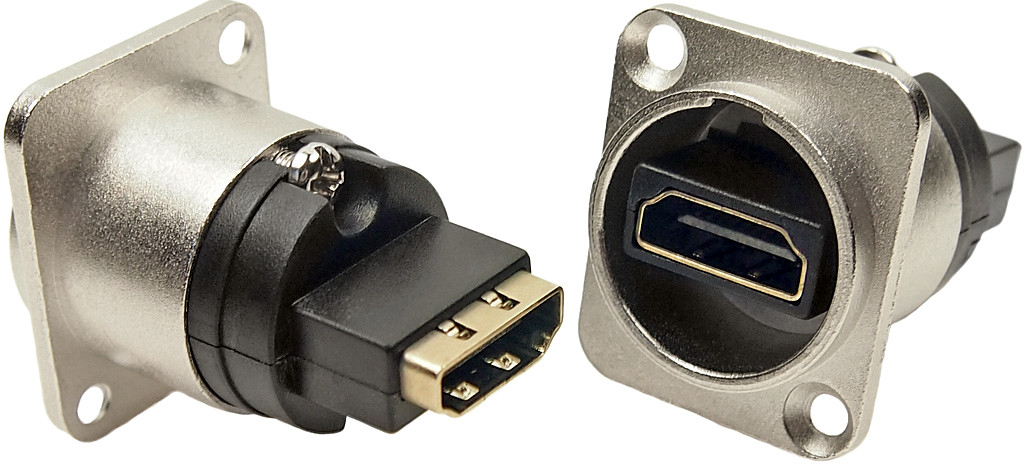

HDMI 4K female to HDMI 4K female type A,horizontal mounting, nickel-plated metal frame. Optional black sealing cap CP30112 available.
CP30116 Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30294 Dedicated HDMI dust cover in black.
CP30294W Dedicated HDMI dust cover in white.
Optical Fibre Fiber
FC optical fibre, fiber, nickel-plated metal frame, integral dust cover, nickel-plated contacts.
With a slot width and stock measure of 2.2 mm this should be suitable for either FC/PC or FC/APC (wide type N or narrow type R) standards for key widths.
Fibre Fiber optic connector cleaner pen tool available.
CP30219M Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30219M3 Nickel-plated metal with M3 threaded mounting holes.

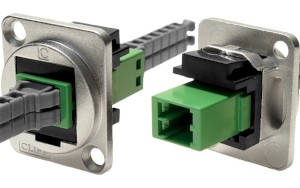

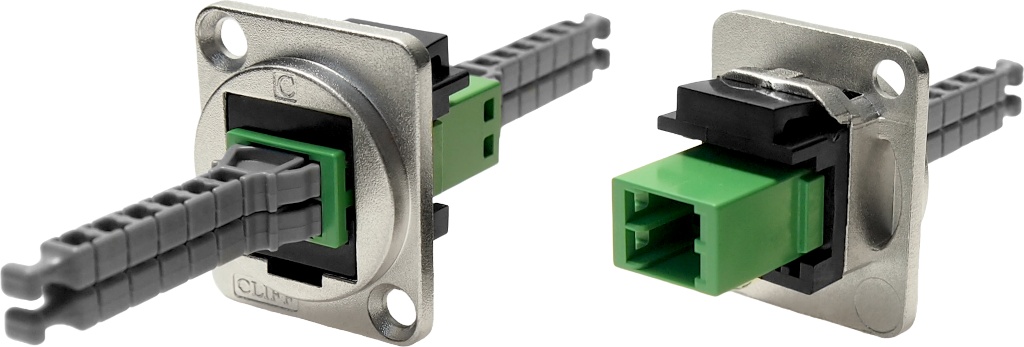

LC Duplex MM optical fibre, fiber, nickel-plated metal frame, integral dust cover, ceramic sleeve.
Fibre Fiber optic connector cleaner pen tool available.
CP30214M Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30214M3 Nickel-plated metal with M3 threaded mounting holes.
LC Duplex SM optical fibre, fiber, nickel-plated metal frame, integral dust cover, ceramic sleeve.
Fibre Fiber optic connector cleaner pen tool available.
CP30213M Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30213M3 Nickel-plated metal with M3 threaded mounting holes.
SC Simplex MM optical fibre, fiber, nickel-plated metal frame, integral dust cover, ceramic sleeve.
Fibre Fiber optic connector cleaner pen tool available.
CP30216M Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30216M3 Nickel-plated metal with M3 threaded mounting holes.
SC Simplex SM optical fibre, fiber, nickel-plated metal frame, integral dust cover, ceramic sleeve.
Fibre Fiber optic connector cleaner pen tool available.
CP30215M Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30215M3 Nickel-plated metal with M3 threaded mounting holes.
ST / BFOC optical fibre, fiber, nickel-plated metal frame, integral dust cover, nickel-plated contacts.
Fibre Fiber optic connector cleaner pen tool available.
CP30218M Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30218M3 Nickel-plated metal with M3 threaded mounting holes.
TOSLINK EIAJ optical fibre, fiber, nickel-plated metal frame, integral dust cover.
Fibre Fiber optic connector cleaner pen tool available.
CP30217M Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30217M3 Nickel-plated metal with M3 threaded mounting holes.
CP30297 Dedicated TOSLINK dust cover in black.
-
Push click action and robust sturdy construction, the pens have a dry cleaning strand that gently sweeps and removes harmful contaminants from the connector without damaging the end face.
- FCR300125 Fibre Fiber optic cleaning pen 1.25 mm for MU and LC connectors.
- FCR300250 Fibre Fiber optic cleaning pen 2.5 mm for FC, SC and ST connectors.
RCA Phono Phono / Cinch
RCA Phono Phono / Cinch with red insert, nickel-plated metal frame, gold over nickel-plated contacts. Other insert colours colors are available on request.
CP30230M Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30230M3 Nickel-plated metal with M3 threaded mounting holes.
RCA Phono Phono / Cinch with white insert, nickel-plated metal frame, gold over nickel-plated contacts. Other insert colours colors are available on request.
CP30231M Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30231M3 Nickel-plated metal with M3 threaded mounting holes.
RCA Phono Phono / Cinch with yellow insert, nickel-plated metal frame, gold over nickel-plated contacts. Other insert colours colors are available on request.
CP30232M Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30232M3 Nickel-plated metal with M3 threaded mounting holes.
RJ45
RJ45 Cat.5e Unshielded UTP, nickel-plated metal frame. T568A and T568B wiring. ISO / IEC 11801, EN50173, ANSI / TIA / EIA 568B.2.
CP30220M Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30220M3 Nickel-plated metal with M3 threaded mounting holes.
CP30291 Dedicated RJ45 dust cover in black.
CP30291W Dedicated RJ45 dust cover in white.
RJ45 Cat.5e Shielded FTP, nickel-plated metal frame. T568A and T568B wiring. ISO / IEC 11801, EN50173, ANSI / TIA / EIA 568B.2.
CP30220SM Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30220SM3 Nickel-plated metal with M3 threaded mounting holes.
CP30291 Dedicated RJ45 dust cover in black.
CP30291W Dedicated RJ45 dust cover in white.
RJ45 Cat.5e with IP65 rating, nickel-plated metal frame.
Secure, snap-in, locking design. Integrated dust cover. Cable diameter of 4.5 mm to 7 mm.
CP30220MIP65S Nickel-plated metal framed socket with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
RJ45 XLR-format plug carrier with IP65 rating, nickel-plated metal frame.
Allows connection of an RJ45 plug (not supplied).
CP30220MIP65P Plug carrier.
RJ45 Cat.6 Unshielded UTP, nickel-plated metal frame. T568A and T568B wiring. ISO / IEC 11801, EN50173, ANSI / TIA / EIA 568B.2.
CP30222M Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30222M3 Nickel-plated metal with M3 threaded mounting holes.
CP30291 Dedicated RJ45 dust cover in black.
CP30291W Dedicated RJ45 dust cover in white.
RJ45 Cat.6 Shielded FTP, nickel-plated metal frame. T568A and T568B wiring. ISO / IEC 11801, EN50173, ANSI / TIA / EIA 568B.2.
CP30222SM Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30222SM3 Nickel-plated metal with M3 threaded mounting holes.
CP30291 Dedicated RJ45 dust cover in black.
CP30291W Dedicated RJ45 dust cover in white.
RJ45 Cat.6a Shielded FTP nickel-plated metal frame. T568A and T568B wiring. ISO / IEC 11801, EN50173, ANSI / TIA / EIA 568B.2.
CP30225SM Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30225SM3 Nickel-plated metal with M3 threaded mounting holes.
CP30291 Dedicated RJ45 dust cover in black.
CP30291W Dedicated RJ45 dust cover in white.
USB 2
USB 2.0 A to USB 2.0 A, vertical mounting, nickel-plated metal frame, nickel-plated steel shell, gold-plated contacts.
CP30208NM Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30208NM3 Nickel-plated metal with M3 threaded mounting holes.
CP30292 Dedicated USB type A dust cover in black.
CP30292W Dedicated USB type A dust cover in white.
Dual USB 2.0 A to USB 2.0 A, horizontal mounting, nickel-plated metal shell, gold-plated contacts.
CP30085 Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30292 Dedicated USB type A dust cover in black.
CP30292W Dedicated USB type A dust cover in white.
USB 2.0 B to USB 2.0 B, nickel-plated metal frame, nickel-plated steel shell, gold-plated contacts.
CP30203NM Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30203NM3 Nickel-plated metal with M3 threaded mounting holes.
CP30293 Dedicated USB 2 type B dust cover in black.
CP30293W Dedicated USB 2 type B dust cover in white.
USB 2.0 A to USB 2.0 B, vertical mounting, nickel-plated metal frame, nickel-plated steel shell, gold-plated contacts.
CP30209NM Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30209NM3 Nickel-plated metal with M3 threaded mounting holes.
CP30292 Dedicated USB type A dust cover in black.
CP30292W Dedicated USB type A dust cover in white.
USB 2.0 A to USB 2.0 B, horizontal mounting, nickel-plated metal frame. Optional black sealing cap CP30112 available.
CP30110 Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30292 Dedicated USB type A dust cover in black.
CP30292W Dedicated USB type A dust cover in white.
USB 2.0 B to USB 2.0 A, vertical mounting, nickel-plated metal frame, nickel-plated steel shell, gold-plated contacts.
CP30207NM Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30207NM3 Nickel-plated metal with M3 threaded mounting holes.
CP30293 Dedicated USB 2 type B dust cover in black.
CP30293W Dedicated USB 2 type B dust cover in white.
USB 2.0 B to USB 2.0 A, horizontal mounting, nickel-plated metal frame. Optional black sealing cap CP30112 available.
CP30111 Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30293 Dedicated USB 2 type B dust cover in black.
CP30293W Dedicated USB 2 type B dust cover in white.
USB 3
USB 3.0 A to USB 3.0 A, vertical mounting, nickel-plated metal frame, nickel-plated steel shell, gold-plated contacts.
CP30205NM Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30205NM3 Nickel-plated metal with M3 threaded mounting holes.
CP30292 Dedicated USB type A dust cover in black.
CP30292W Dedicated USB type A dust cover in white.
Dual USB 3.0 A to USB 3.0 A, horizontal mounting, nickel-plated metal shell, gold-plated contacts.
CP30087 Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30292 Dedicated USB type A dust cover in black.
CP30292W Dedicated USB type A dust cover in white.
USB 3.0 B to USB 3.0 B, nickel-plated metal frame, nickel-plated steel shell, gold-plated contacts.
CP30204NM Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30204NM3 Nickel-plated metal with M3 threaded mounting holes.
CP30296 Dedicated USB 3 type B dust cover in black.
CP30296W Dedicated USB 3 type B dust cover in white.
USB 3.0 A to USB 3.0 B, vertical mounting, nickel-plated metal frame, nickel-plated steel shell, gold-plated contacts.
CP30210NM Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30210NM3 Nickel-plated metal with M3 threaded mounting holes.
CP30292 Dedicated USB type A dust cover in black.
CP30292W Dedicated USB type A dust cover in white.
USB 3.0 A to USB 3.0 B, horizontal mounting, earthed, nickel-plated metal frame, gold-plated contacts.
CP30106 Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30292 Dedicated USB type A dust cover in black.
CP30292W Dedicated USB type A dust cover in white.
USB 3.0 B to USB 3.0 A, vertical mounting, nickel-plated metal frame, nickel-plated steel shell, gold-plated contacts.
CP30206NM Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30206NM3 Nickel-plated metal with M3 threaded mounting holes.
CP30296 Dedicated USB 3 type B dust cover in black.
CP30296W Dedicated USB 3 type B dust cover in white.
USB 3.0 B to USB 3.0 A, horizontal mounting, earthed, nickel-plated metal frame, gold-plated contacts.
CP30107 Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30296 Dedicated USB 3 type B dust cover in black.
CP30296W Dedicated USB 3 type B dust cover in white.
USB Type C
USB type C female to USB type C male, horizontal mounting, nickel-plated metal frame.
USB-C extension cables available.
CP30211M Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30211M3 Nickel-plated metal with M3 threaded mounting holes.
CP30295 Dedicated USB type C dust cover in black.
CP30295W Dedicated USB type C dust cover in white.
Dual USB type C female to USB type C male, horizontal mounting, nickel-plated metal frame.
USB-C extension cables available.
CP30212M Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30212M3 Nickel-plated metal with M3 threaded mounting holes.
CP30295 Dedicated USB type C dust cover in black.
CP30295W Dedicated USB type C dust cover in white.
USB type C female to USB type C male and USB 3.0 A female to USB 3.0 A female, horizontal mounting, nickel-plated metal frame, gold plated contacts.
USB-C extension cables available.
CP30235M Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30235M3 Nickel-plated metal with M3 threaded mounting holes.
CP30295 Dedicated USB type C dust cover in black.
CP30295W Dedicated USB type C dust cover in white.
CP30292 Dedicated USB type A dust cover in black.
CP30292W Dedicated USB type A dust cover in white.
VGA
-
VGA D-sub 15 pin female to female, vertical mounting, nickel-plated metal frame.
CP30229M Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
Blanking and Recess Plates
XLR panel blanking plate, nickel-plated metal frame.
CP30241M Nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30241M3 Nickel-plated metal with M3 threaded mounting holes.
XRP3 3 mm deep, nickel-plated metal recess plate for custom mounting options. Drill or punch guide.
- CP30300M 3.5 mm nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
- CP30300M3 Nickel-plated metal with M3 threaded mounting holes.
XRP12 12 mm deep, nickel-plated metal recess plate for custom mounting options. Drill or punch guide.
- CP30400M 3.5 mm nickel-plated metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
- CP30400M3 Nickel-plated metal with M3 threaded mounting holes.
Gaskets and Dust Covers
Sealing cover / cap.
CP30112 black cap with rectangular cutout. For use with the following feedthrough sockets:
- CP30110 USB 2.0 A to USB 2.0 B.
- CP30111 USB 2.0 B to USB 2.0 A.
- CP30116 HDMI A female to HDMI A female.
- CP30117 Firewire IEEE 1394 to Firewire IEEE 1394.
-
These rubber gaskets with bevelled edges are used as dust seals and for colour color identification.
- CP299802 Black with cap. Not suitable for ST or FC fibre-optic fiber-optic feedthrough connectors.
- CP299805 Green with cap. Not suitable for ST or FC fibre-optic fiber-optic feedthrough connectors.
- CP299807 Red with cap. Not suitable for ST or FC fibre-optic fiber-optic feedthrough connectors.
- CP299808 Blue with cap. Not suitable for ST or FC fibre-optic fiber-optic feedthrough connectors.
- CP299902 Black.
- CP299903 White.
- CP299904 Grey. Gray.
- CP299905 Green.
- CP299906 Yellow.
- CP299907 Red.
- CP299908 Blue.
-
Our universal dust cover fits over the front of most feedthrough connectors, (not ST or FC fibre-optic). fiber-optic).
Dedicated covers simply push into the front of the connector to reduce the ingress of dust and dirt.
Designed to fit both plastic and metal Cliff™ feedthrough connectors.
- CP30290 Lanyard for dedicated dust covers (CP30290X10 for 10).
- CP30294 HDMI dedicated dust cover in black or white (CP30294W).
- CP30297 Optical TOSLINK dedicated dust cover in black.
- CP30291 RJ45 dedicated dust cover in black or white (CP30291W).
- CP30292 USB type A dedicated dust cover in black or white (CP30292W).
- CP30293 USB 2 type B dedicated dust cover in black or white (CP30293W).
- CP30296 USB 3 type B dedicated dust cover in black or white (CP30296W).
- CP30295 USB type C dedicated dust cover in black or white (CP30295W).
- CP30285 Universal dust cover in Black. Not suitable for ST or FC fibre-optic fiber-optic feedthrough connectors.
- CP30285L Universal dust cover in Blue. Not suitable for ST or FC fibre-optic fiber-optic feedthrough connectors.
- CP30285R Universal dust cover in Red. Not suitable for ST or FC fibre-optic fiber-optic feedthrough connectors.
Please contact Cliff™ sales for more information.
Our site uses PDF (portable document format) files to store information on our products. To view these files you should have a PDF reader installed. You can download Adobe Acrobat Reader for free.
