CliffCon® 68 Waterproof Plug and Socket Connectors
The Cliffcon® 68 is an IP68 rated multipin connector for waterproof and rugged applications.
Features
- Panel hole cut-out size of 13 mm.
- IP68 for under water, outdoors and indoors when mated or with optional cap fitted.
- CE and RoHS / REACH approval.
- 2 to 9 gold-plated contacts, (no 8 pin version).
- Sealing cap available for socket. Sold separately.
Specification
- Coupling Type: Threaded.
- Ingress Protection Rating: IP68.
- Material: Plastic Shell, Nylon66, fire resistance V-0.
- Insert Material: PPS maximum temperature 260 °C,fire resistance V-0.
- Contact Material: Brass with gold plating.
- Termination: Solder.
- Cable Outer Diameter: 5 to 8 mm.
- Mating Cycle: > 500.
- Temperature Range: −25 to +85 °C.
- Insulation Resistance: 2000 mΩ.
Number of Contacts |
2 | 3 | 4 | 5 | 6 | 7 | 9 |
---|---|---|---|---|---|---|---|
Male Contact Face View | |||||||
Rated Current (A) | 13 A | 13 A | 5 A | 5 A | 5 A | 5 A | 3 A |
Contact Diameter (mm) | 1.6 mm × 2 | 1.6 mm × 3 | 1 mm × 4 | 1 mm × 5 | 1 mm × 6 | 1 mm × 7 | 0.7 mm x 9 |
Rated Voltage (V AC) | 250 V |
250 V | 200 V | 180 V | 125 V | 125 V | 125 V |
Test Voltage (V AC) 1 minute | 1500 V | 1500 V | 1500 V | 1000 V | 1000 V | 1000 V | 1000 V |
Contact Resistance (mΩ) | 2 mΩ | 2 mΩ | 5 mΩ | 5 mΩ | 5 mΩ | 5 mΩ | 10 mΩ |
Wire Size mm² | <= 2 mm² | <= 2 mm² | <= 0.785 mm² | <= 0.785 mm² | <= 0.785 mm² | <= 0.785 mm² | <= 0.785 mm² |
Wire Size AWG | <= 14 AWG | <= 14 AWG | <= 18 AWG | <= 18 AWG | <= 18 AWG | <= 18 AWG | <= 18 AWG |
See the PDF data sheet: CliffCon® 68 Connectors (opens in a new window).
-

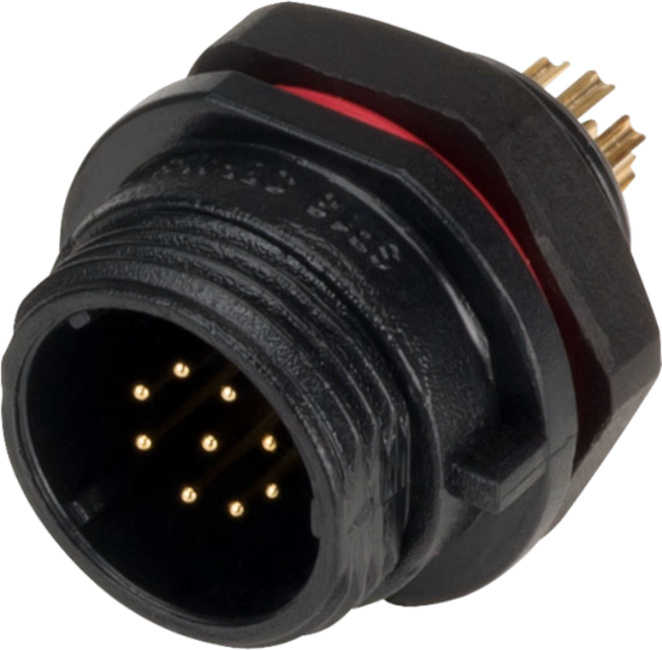

FM68680x Front-Mounting Male Panel Socket where x is the number of pins.
FM686802 2 pin front-mounting male socket.
FM686803 3 pin front-mounting male socket.
FM686804 4 pin front-mounting male socket.
FM686805 5 pin front-mounting male socket.
FM686806 6 pin front-mounting male socket.
FM686807 7 pin front-mounting male socket.
FM686809 9 pin front-mounting male socket.
-
FM686800 Socket Cap.
-
FM68681x Female Cable Plug Connector where x is the number of pins.
Accepts cable outer diameters from 5 to 8 mm.
FM686812 2 pin female plug.
FM686813 3 pin female plug.
FM686814 4 pin female plug.
FM686815 5 pin female plug.
FM686816 6 pin female plug.

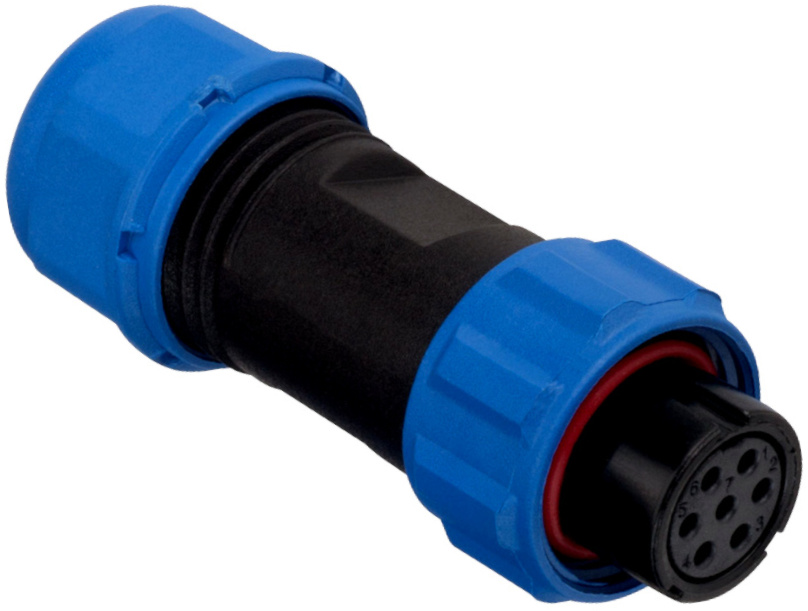

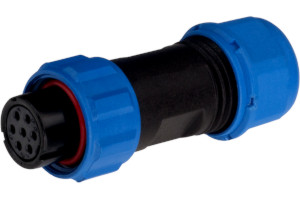

FM686817 7 pin female plug.
FM686819 9 pin female plug.
-

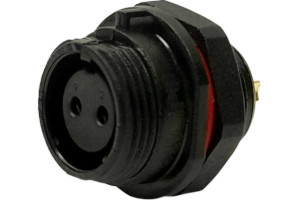

FM686832 2 Pin Female Panel Socket.
-
FM686822 2 Pin Male Overmould Plug with 5m Cable.
-
Cable Specification: Unshielded. UL 2464 #20*2C (26/0.16BC*1.46*2C). Outer diameter ⌀ 4.5 mm.
-
FM68684x Male Cable Plug Connector where x is the number of pins.
Accepts cable outer diameters from 5 to 8 mm.
Two and three pin versions are currently available. Other models on request.
FM686842 2 pin male inline plug.
FM686843 3 pin male inline plug.
