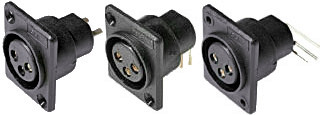

Female 3 Pin XLR Sockets
Show/hide description.

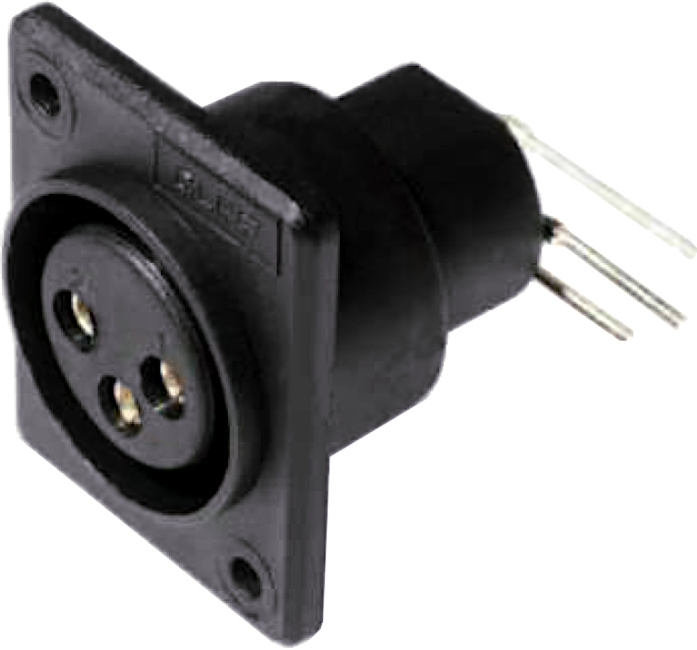

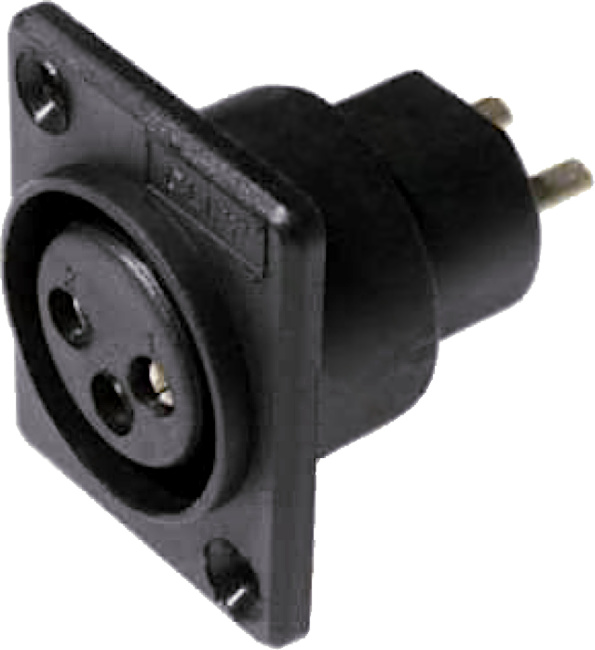

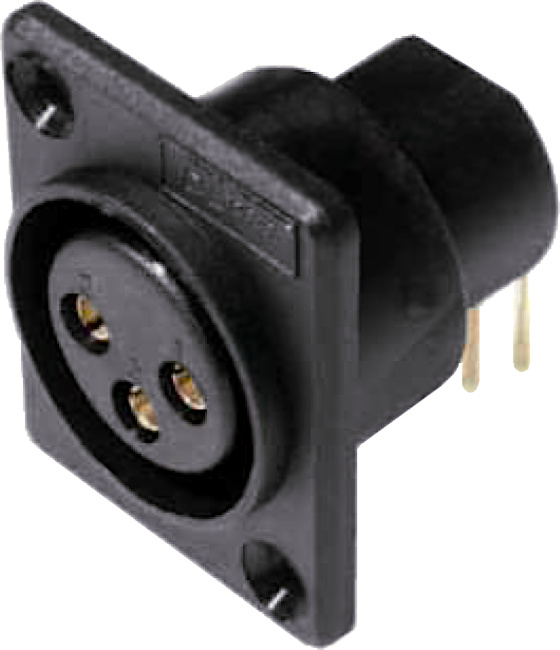

The CLIFF™ range of professional, standard chassis and PCB-mounting, female XLR sockets is designed for use in numerous applications including professional and consumer audio, broadcast and industrial uses. The design offers an economical alternative to higher-priced, metal, XLR connectors. Our products are manufactured to strict quality and performance standards. These components feature a tough, nylon construction with special, low-noise, machined or spring-action, wiping contacts for hand solder, horizontal or vertical PCB mounting. All have silver and nickel plated brass contacts.
Electrical Specifications
- Rated Current: 3 pin 5 A nominal. 15 A maximum.
- Rated Voltage: 250 V AC maximum.
- Operating Temperature: −30 to +80 °C.
- Contact Resistance, (new): < 10 mΩ.
- Contact Resistance, (after 1000 insertions): 15 mΩ maximum.
- Dielectric Withstand: 1600 V AC between all contacts.
- Insulation Resistance: > 109 Ω at 500 V DC.
- Capacity between contacts: < 5 pf.
Mechanical Specifications
- Insertion Life (minimum): > 1000 insertions and removals.
- Insertion Force: < 10 N.
Materials
- Housing: Polyamide. GF on some models.
- Contacts: Brass, phosphor-bronze.
- Plating: 5 μm silver over 5 μm nickel. Gold plating available.
Countersunk mounting holes for M3 screws or plain mounting holes for self-tapping screws.
