Phono RCA Cinch Connectors

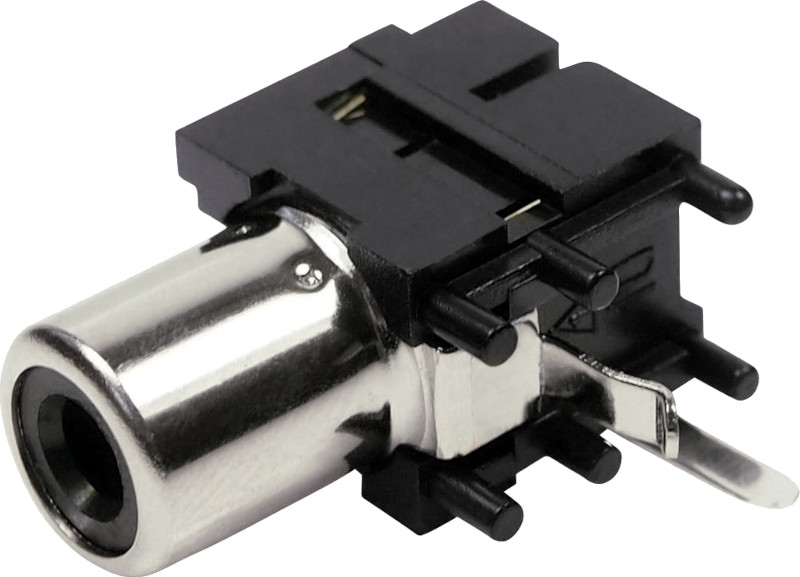

The Cliff™ range of single, dual, quad and multiple PCB mounting RCA phono phono / cinch connectors provide a low cost and reliable connection system. They are intended for use in many types of consumer and professional audio equipment. Metal parts are available nickel plated (standard) or with a gold finish. There is a choice of coloured colored inserts for identification purposes.
Models are available for both vertical and horizontal PCB mounting. Snap-in legs facilitate assembly and wave soldering. Some versions can be supplied with a prefitted EMI / RFI screen if required.
Electrical Specifications
- Contact Resistance: 30 mΩ maximum at AC 100 mA maximum 1 kHz.
- Dielectric Withstand: 500 V AC at 60 Hz for 1 minute.
- Insulation Resistance: < 100 mΩ minimum at 500 V DC.
Mechanical Specifications
- Insertion Life (Minimum): > 4000 insertions and removals.
- Insertion Force: 0.03 to 3.0 kg.
- Extraction Force: 0.03 to 3.0 kg.
Materials
- Housing: Thermoplastic.
- Contacts: Copper alloy.
- Barrel: Copper alloy.
- Front Metal Shield: Copper alloy.
- Spring Shield: Stainless steel.
- Plating: Choice of nickel silver or gold.
For further technical specifications please see the PDF data sheets:
RCA phono phono / cinch connectors PCB mounting (opens in a new window).
RCA phono phono / cinch connectors PCB mounting (traditional) (opens in a new window).
PHS-1B Red (FC68369) PCB mounting, single chassis RCA phono phono / cinch connector.
PHS-2B (FC68371) PCB mounting RCA phono phono / cinch connector without break contact.
PHS-4B (FC68375) Snap in PCB mounting RCA phono phono / cinch connector. Only available with black insert.
PHS-6B (FC68391) Horizontal single PC phono phono / cinch socket. Red only.
PHS-7A Vertical PCB mounting RCA phono phono / cinch connector. Several different coloured colored inserts available. Tin or gold plated finish.
FC68400 black, tin.
FC68400G black, gold plated.
-
FC68401 red, tin.
FC68401G red, gold plated.
PHS-7C Vertical PCB mounting RCA phono phono / cinch connector. Several different coloured colored inserts available. Tin or gold plated finish.
FC68402G yellow, gold plated.
-
FC68403 white, tin.
PHS-10A (FC684045) PCB mounting dual RCA phono phono / cinch connector. Several different coloured colored inserts available. Nickel silver or gold plated finish.
PHS-10B PCB mounting dual RCA phono phono / cinch connector. Several different coloured colored inserts available. Nickel silver or gold plated finish.
FC68405 white and red.
-
FC684052 black and red.
PHS-10D (FC684055) PCB mounting dual RCA phono phono / cinch connector. Several different coloured colored inserts available. Nickel silver or gold plated finish.
PHS-10 V (FW6190) PCB mounting, dual, vertical, RCA phono phono / cinch connector. Red and white coloured colored inserts. Nickel silver plated finish.
PHS-10 VG (FW6192) PCB mounting, dual, vertical, RCA phono phono / cinch connector. Red and white coloured colored inserts. Gold plated finish.
PHS-10 VS (FW6195) PCB mounting, dual, vertical, RCA phono phono / cinch connector. Red and white coloured colored inserts. Nickel silver plated finish. Short legs and PCB layout.
PHS-12D (FC684056) Vertical PCB mounting quad RCA phono phono / cinch connector. Nickel silver or gold plated finish.
PHS-16B (FC684070) PCB mounting six-way RCA phono phono / cinch connector. Several different coloured colored inserts available. Nickel silver or gold plated finish.
PHS-16C (various) PCB mounting six-way RCA phono phono / cinch connector. Several different coloured colored inserts available. Nickel silver or gold plated finish.
PHS-19A (various) PCB mounting nine-way RCA phono phono / cinch connector. Several different coloured colored inserts available. Nickel silver or gold plated finish.
Please contact Cliff™ sales for more information.
