Black Metal Feedthrough Data Connectors in XLR shell
The black metal FT series of true, feed through, data connectors for electrical instrumentation are perfect for developing custom I/O configurations for wall plates, rack panels, etc.
All fit within a standard XLR panel cutout and use common cabling for front and back connections. No soldering and no punch terminations - just use the standard cable for that particular connector style. Mount from the front or back. A low rear profile accommodates the tightest behind-the-panel spaces.
Available in a wide variety of styles. The frame has a matt matte black finish. Functionality is affected by cable quality, length and cable wiring configuration.

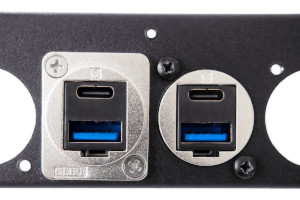

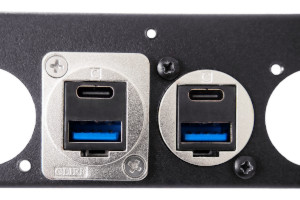

Most of our metal and black metal feedthrough connectors are available with plain, countersunk or M3 threaded mounting holes.
M3
Jump down to BNC, DisplayPort, HDMI, Optical, RCA, RJ45, USB 2, USB 3, USB-C, VGA, Blanks, Dust Covers.
Please also see our feedthrough connectors, XLR audio and XLR format connectors and USB connectors.
BNC
-
BNC 50Ω, matt matte black finished metal frame. Universal dust cap CP30285 is suitable for BNC models.
CP30120 50 ohms, black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
-
BNC 50Ω insulated, matt matte black finished metal frame. Universal dust cap CP30285 is suitable for BNC models.
CP30125 50 ohms, black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
-
BNC 75Ω, matt matte black finished metal frame. Universal dust cap CP30285 is suitable for BNC models.
CP30121 75 ohms, black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
-

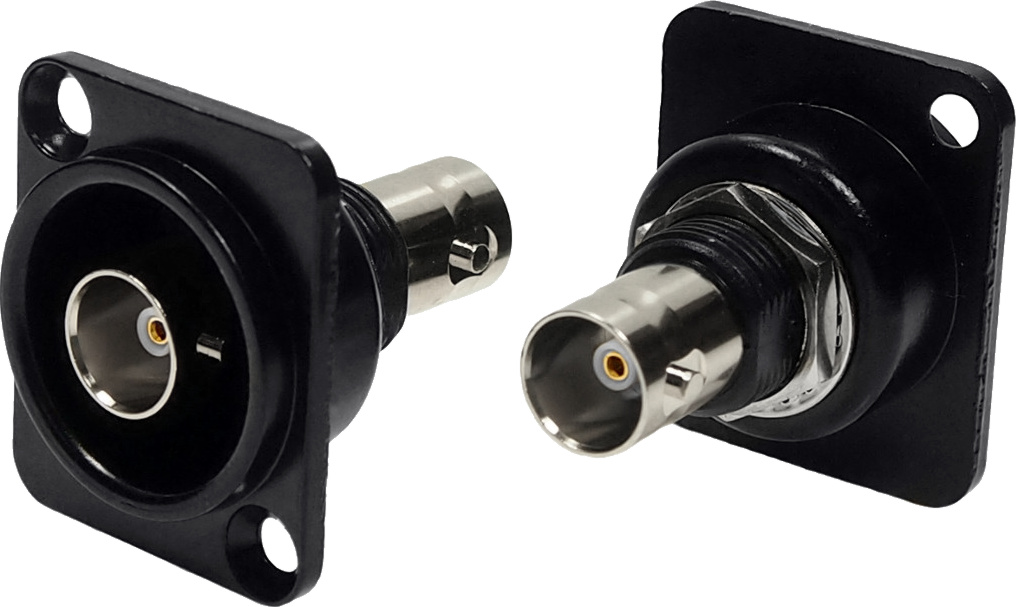

BNC 75Ω insulated, matt matte black finished metal frame. Universal dust cap CP30285 is suitable for BNC models.
CP30126 75 ohms, black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
-
BNC 75Ω gold, matt matte black finished metal frame. Universal dust cap CP30285 is suitable for BNC models.
CP303112GMB 75 ohms, black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm), 12 GHz, gold-plated.
DisplayPort
-
DisplayPort, horizontal mounting, matt matte black finished zinc metal frame, nickel-plated iron shell, gold-plated copper contacts. Female to female. Front or rear mounting. Low rear profile.
DisplayPort to DisplayPort cables are available in 1m and 2m lengths.
CP30233MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30233M3B Black metal with M3 threaded mounting holes.
-

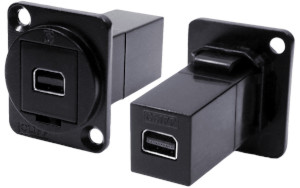

Mini DisplayPort, horizontal mounting, matt matte black finished metal frame, nickel-plated shell, gold-plated contacts.
DisplayPort to mini DisplayPort cables are available in 1m and 2m lengths.
CP30202MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30202M3B Black metal with M3 threaded mounting holes.
HDMI
-
HDMI 4K female to HDMI 4K female type-A, vertical mounting, matt matte black finished metal frame, gold-plated shell and contacts.
CP30200GMB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30200GM3B Black metal with M3 threaded mounting holes.
CP30294 Dedicated HDMI dust cover in black.
CP30294W Dedicated HDMI dust cover in white.
-
HDMI 4K female to HDMI 4K female type-A, horizontal mounting, matt matte black finished metal frame. Optional black sealing cap CP30112 available.
CP30122 Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30294 Dedicated HDMI dust cover in black.
CP30294W Dedicated HDMI dust cover in white.
Optical Fibre Fiber
-
FC optical fibre, fiber, matt matte black finished metal frame, integral dust cover, nickel-plated contacts.
With a slot width and stock measure of 2.2 mm this should be suitable for either FC/PC or FC/APC (wide type N or narrow type R) standards for key widths.
Fibre Fiber optic connector cleaner pen tool available.
CP30219MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30219M3B Black metal with M3 threaded mounting holes.
-

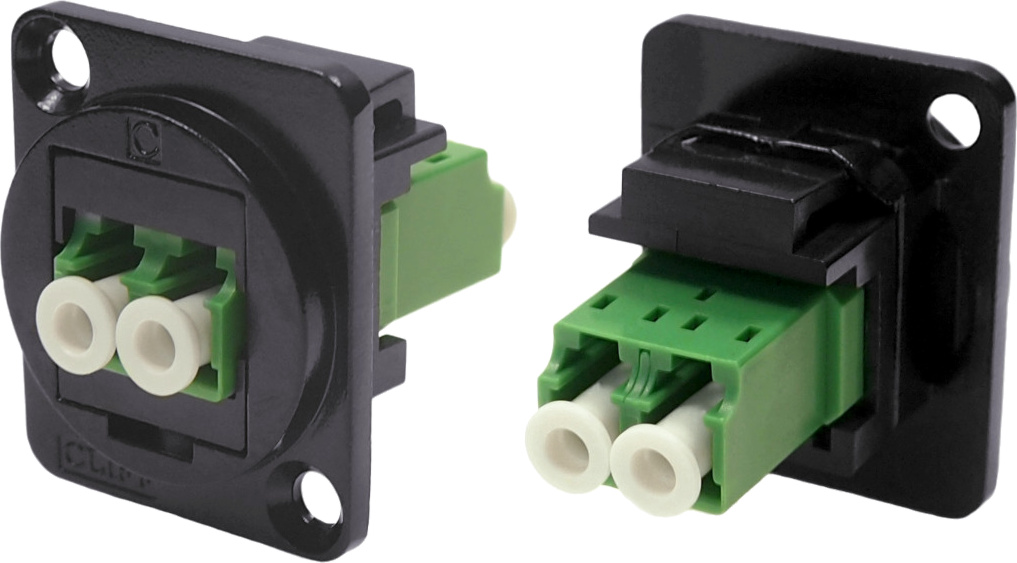

LC Duplex APC optical fibre, fiber, matt matte black finished zinc metal frame, integral dust cover, ceramic sleeve.
Fibre Fiber optic connector cleaner pen tool available.
CP30248MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30248M3B Black metal with M3 threaded mounting holes.
-
LC Duplex MM optical fibre, fiber, matt matte black finished metal frame, integral dust cover, ceramic sleeve.
Fibre Fiber optic connector cleaner pen tool available.
CP30214MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30214M3B Black metal with M3 threaded mounting holes.
-
LC Duplex OM3 optical fibre, fiber, matt matte black finished zinc metal frame, integral dust cover, ceramic sleeve.
Fibre Fiber optic connector cleaner pen tool available.
CP30246MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30246M3B Black metal with M3 threaded mounting holes.
-
LC Duplex OM4 optical fibre, fiber, matt matte black finished zinc metal frame, integral dust cover, ceramic sleeve.
Fibre Fiber optic connector cleaner pen tool available.
CP30247MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30247M3B Black metal with M3 threaded mounting holes.
-
LC Duplex SM optical fibre, fiber, matt matte black finished metal frame, integral dust cover, ceramic sleeve.
Fibre Fiber optic connector cleaner pen tool available.
CP30213MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30213M3B Black metal with M3 threaded mounting holes.
-
SC Simplex APC optical fibre, fiber, matt matte black finished zinc metal frame, integral dust cover, ceramic sleeve.
Fibre Fiber optic connector cleaner pen tool available.
CP30249MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30249M3B Black metal with M3 threaded mounting holes.
-
SC Simplex MM optical fibre, fiber, matt matte black finished metal frame, integral dust cover, ceramic sleeve.
Fibre Fiber optic connector cleaner pen tool available.
CP30216MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30216M3B Black metal with M3 threaded mounting holes.
-

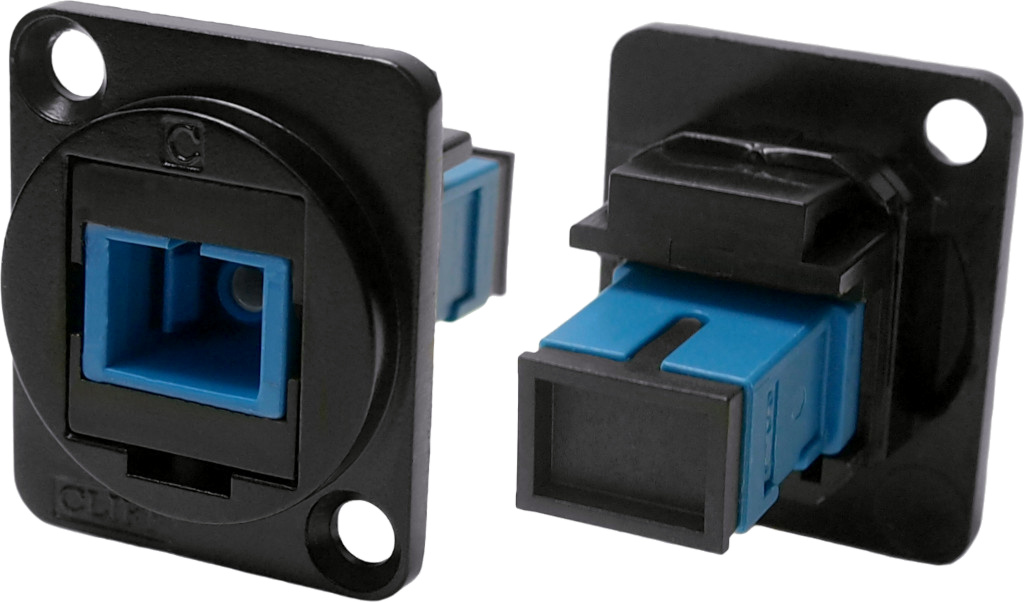

SC Simplex SM optical fibre, fiber, matt matte black finished metal frame, integral dust cover, ceramic sleeve.
Fibre Fiber optic connector cleaner pen tool available.
CP30215MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30215M3B Black metal with M3 threaded mounting holes.
-
ST / BFOC optical fibre, fiber, matt matte black finished metal frame, integral dust cover, nickel-plated contacts.
Fibre Fiber optic connector cleaner pen tool available.
CP30218MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30218M3B Black metal with M3 threaded mounting holes.
-
TOSLINK EIAJ optical fibre, fiber, matt matte black finished metal frame, integral dust cover.
Fibre Fiber optic connector cleaner pen tool available.
CP30217MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30217M3B Black metal with M3 threaded mounting holes.
CP30297 Dedicated TOSLINK dust cover in black.
-
US Conec MTP® brand MPO optical fibre, fiber, matt matte black finished zinc metal frame, integral dust cover.
CP30245MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30245M3B Black metal with M3 threaded mounting holes.
-
Push click action and robust sturdy construction, the pens have a dry cleaning strand that gently sweeps and removes harmful contaminants from the connector without damaging the end face.
- FCR300125 Fibre Fiber optic cleaning pen 1.25 mm for MU and LC connectors.
- FCR300250 Fibre Fiber optic cleaning pen 2.5 mm for FC, SC and ST connectors.
RCA Phono Phono / Cinch
-
RCA Phono Phono / Cinch with red insert, matt matte black finished metal frame, gold over nickel-plated contacts. Other insert colours are available on request.
CP30230MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30230M3B Black metal with M3 threaded mounting holes.
-
RCA Phono Phono / Cinch with white insert, matt matte black finished metal frame, gold over nickel-plated contacts. Other insert colours are available on request.
CP30231MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30231M3B Black metal with M3 threaded mounting holes.
-
RCA Phono Phono / Cinch with yellow insert, matt matte black finished metal frame, gold over nickel-plated contacts. Other insert colours are available on request.
CP30232MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30232M3B Black metal with M3 threaded mounting holes.
RJ45
-
RJ45 Cat.5e Unshielded UTP, matt matte black finished metal frame. ISO / IEC 11801, EN50173, ANSI / TIA / EIA 568B.2.
CP30220MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30220M3B Black metal with M3 threaded mounting holes.
CP30291 Dedicated RJ45 dust cover in black.
CP30291W Dedicated RJ45 dust cover in white.
-
RJ45 Cat.5e Shielded FTP, matt matte black finished metal frame. ISO / IEC 11801, EN50173, ANSI / TIA / EIA 568B.2.
CP30220SMB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30220SM3B Black metal with M3 threaded mounting holes.
CP30291 Dedicated RJ45 dust cover in black.
CP30291W Dedicated RJ45 dust cover in white.
-
RJ45 Cat.6 Unshielded UTP, matt matte black finished metal frame. T568A and T568B wiring. ISO / IEC 11801, EN50173, ANSI / TIA / EIA 568B.2.
CP30222MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30222M3B Black metal with M3 threaded mounting holes.
CP30291 Dedicated RJ45 dust cover in black.
CP30291W Dedicated RJ45 dust cover in white.
-
RJ45 Cat.6 Shielded FTP, matt matte black finished metal frame. T568A and T568B wiring. ISO / IEC 11801, EN50173, ANSI / TIA / EIA 568B.2.
CP30222SMB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30222SM3B Black metal with M3 threaded mounting holes.
CP30291 Dedicated RJ45 dust cover in black.
CP30291W Dedicated RJ45 dust cover in white.
-
RJ45 Cat.6a Shielded FTP, matt matte black finished metal frame. T568A and T568B wiring. ISO / IEC 11801, EN50173, ANSI / TIA / EIA 568B.2.
CP30225SMB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30225SM3B Black metal with M3 threaded mounting holes.
CP30291 Dedicated RJ45 dust cover in black.
CP30291W Dedicated RJ45 dust cover in white.
USB 2
-
USB 2.0 A to USB 2.0 A, vertical mounting, matt matte black finished metal frame, nickel-plated steel shell, gold-plated contacts.
CP30208NMB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30208NM3B Black metal with M3 threaded mounting holes.
CP30292 Dedicated USB type A dust cover in black.
CP30292W Dedicated USB type A dust cover in white.
-
Dual USB 2.0 A to USB 2.0 A, horizontal mounting, black metal shell, gold-plated contacts.
CP30086 Black metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30292 Dedicated USB type A dust cover in black.
CP30292W Dedicated USB type A dust cover in white.
-
USB 2.0 B to USB 2.0 B, matt matte black finished metal frame, nickel-plated steel shell, gold-plated contacts.
CP30203NMB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30203NM3B Black metal with M3 threaded mounting holes.
CP30293 Dedicated USB 2 type B dust cover in black.
CP30293W Dedicated USB 2 type B dust cover in white.
-
USB 2.0 A to USB 2.0 B adapter, vertical mounting, matt matte black finished metal frame, nickel-plated steel shell, gold-plated contacts.
CP30209NMB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30209NM3B Black metal with M3 threaded mounting holes.
CP30292 Dedicated USB type A dust cover in black.
CP30292W Dedicated USB type A dust cover in white.
-
USB 2.0 A to USB 2.0 B adapter, horizontal mounting, matt matte black finished metal frame. Optional black sealing cap CP30112 available.
CP30114 Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30292 Dedicated USB type A dust cover in black.
CP30292W Dedicated USB type A dust cover in white.
-
USB 2.0 B to USB 2.0 A, vertical mounting, matt matte black finished metal frame, nickel-plated steel shell, gold-plated contacts.
CP30207NMB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30207NM3B Black metal with M3 threaded mounting holes.
CP30293 Dedicated USB 2 type B dust cover in black.
CP30293W Dedicated USB 2 type B dust cover in white.
-
USB 2.0 B to USB 2.0 A, horizontal mounting, matt matte black finished metal frame. Optional black sealing cap CP30112 available.
CP30115 Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30293 Dedicated USB 2 type B dust cover in black.
CP30293W Dedicated USB 2 type B dust cover in white.
USB 3
-
USB 3.0 A to USB 3.0 A, vertical mounting, matt matte black finished metal frame, nickel-plated steel shell, gold-plated contacts.
CP30205NMB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30205NM3B Black metal with M3 threaded mounting holes.
CP30292 Dedicated USB type A dust cover in black.
CP30292W Dedicated USB type A dust cover in white.
-
Dual USB 3.0 A to USB 3.0 A, horizontal mounting, black metal shell, gold-plated contacts.
CP30088 Black metal with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
CP30292 Dedicated USB type A dust cover in black.
CP30292W Dedicated USB type A dust cover in white.
-
USB 3.0 B to USB 3.0 B, matt matte black finished metal frame, nickel-plated steel shell, gold-plated contacts.
CP30204NMB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30204NM3B Black metal with M3 threaded mounting holes.
CP30296 Dedicated USB 3 type B dust cover in black.
CP30296W Dedicated USB 3 type B dust cover in white.
-
USB 3.0 A to USB 3.0 B adapter, vertical mounting, matt matte black finished metal frame, nickel-plated steel shell, gold-plated contacts.
CP30210NMB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30210NM3B Black metal with M3 threaded mounting holes.
CP30292 Dedicated USB type A dust cover in black.
CP30292W Dedicated USB type A dust cover in white.
-
USB 3.0 A to USB 3.0 B adapter, horizontal mounting, earthed, matt matte black finished metal frame, gold-plated contacts.
CP30108 Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30292 Dedicated USB type A dust cover in black.
CP30292W Dedicated USB type A dust cover in white.
-
USB 3.0 B to USB 3.0 A adapter, vertical mounting, matt matte black finished metal frame, nickel-plated steel shell, gold-plated contacts.
CP30206NMB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30206NM3B Black metal with M3 threaded mounting holes.
CP30296 Dedicated USB 3 type B dust cover in black.
CP30296W Dedicated USB 3 type B dust cover in white.
-
USB 3.0 B to USB 3.0 A adapter, horizontal mounting, earthed, matt matte black finished metal frame, gold-plated contacts.
CP30109 Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30296 Dedicated USB 3 type B dust cover in black.
CP30296W Dedicated USB 3 type B dust cover in white.
USB Type C
-
USB type C female to USB type C male, horizontal mounting, matt matte black finished metal frame.
USB-C extension cables available.
CP30211MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30211M3B Black metal with M3 threaded mounting holes.
CP30295 Dedicated USB type C dust cover in black.
CP30295W Dedicated USB type C dust cover in white.
-
Dual USB type C female to USB type C male, horizontal mounting, matt matte black finished metal frame.
USB-C extension cables available.
CP30212MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30212M3B Black metal with M3 threaded mounting holes.
CP30295 Dedicated USB type C dust cover in black.
CP30295W Dedicated USB type C dust cover in white.
-
USB type C 3.2 female to USB type C 3.2 male and USB 3.0 A female to USB 3.0 A female, horizontal mounting, matt matte black finished metal frame, gold plated contacts.
USB-C extension cables available.
CP30235MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30235M3B Black metal with M3 threaded mounting holes.
CP30295 Dedicated USB type C dust cover in black.
CP30295W Dedicated USB type C dust cover in white.
CP30292 Dedicated USB type A dust cover in black.
CP30292W Dedicated USB type A dust cover in white.
VGA
-
VGA D-sub 15 pin female to female, vertical mounting, matt matte black finished metal frame.
CP30229BM Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
Blanking and Recess Plates
XLR panel blanking plate, matt matte black finished metal frame.
CP30241MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
CP30241M3B Black metal with M3 threaded mounting holes.
-
XRP3 3 mm deep, matt matte black finished metal recess plate for custom mounting options. Drill or punch guide.
- CP30300MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
- CP30300MB3 Black metal with M3 threaded mounting holes.
-
XRP12 12 mm deep, matt matte black finished metal recess plate for custom mounting options. Drill or punch guide.
- CP30400MB Black metal with 3.5 mm diameter countersunk mounting holes (82 ° ×⌀5.85 mm).
- CP30400MB3 Black metal with M3 threaded mounting holes.
Gaskets and Dust Covers
-
Sealing cover / cap.
CP30112 black cap with rectangular cutout. For use with the following feedthrough sockets:
- CP30114 USB 2.0 A to USB 2.0 B.
- CP30115 USB 2.0 B to USB 2.0 A.
- CP30122 HDMI A female to HDMI A female.
-
These rubber gaskets with bevelled edges are used as dust seals and for colour color identification.
- CP299802 Black with cap. Not for ST or FC fibre-optic fiber-optic feedthroughs.
- CP299805 Green with cap. Not for ST or FC fibre-optic fiber-optic feedthroughs.
- CP299807 Red with cap. Not for ST or FC fibre-optic fiber-optic feedthroughs.
- CP299808 Blue with cap. Not for ST or FC fibre-optic fiber-optic feedthroughs.
- CP299902 Black.
- CP299903 White.
- CP299904 GreyGray.
- CP299905 Green.
- CP299906 Yellow.
- CP299907 Red.
- CP299908 Blue.
-
Our universal dust cover fits over the front of most feedthroughs, (not ST or FC fibre-optic). fiber-optic).
Dedicated covers simply push into the front of the connector to reduce the ingress of dust and dirt.
Designed to fit both plastic and metal Cliff™ feedthroughs.
- CP30290 Lanyard for dedicated dust covers.
- CP30290X10 10 Lanyards for dedicated dust covers.
- CP30294 HDMI dust cover in black.
- CP30294W HDMI dust cover in white.
- CP30297 Optical TOSLINK dust cover in black.
- CP30291 RJ45 dust cover in black.
- CP30291W RJ45 dust cover in white.
- CP30292 USB type A dust cover in black.
- CP30292W USB type A dust cover in white.
- CP30293 USB 2 type B dust cover in black.
- CP30293W USB 2 type B dust cover in white.
- CP30296 USB 3 type B dust cover in black.
- CP30296W USB 3 type B dust cover in white.
- CP30295 USB type C dust cover in black.
- CP30295W USB type C dust cover in white.
- CP30285 Universal dust cover in black. Not for ST or FC fibre-optic fiber-optic feedthroughs.
- CP30285L Universal dust cover in blue. Not for ST or FC fibre-optic fiber-optic feedthroughs.
- CP30285R Universal dust cover in red. Not for ST or FC fibre-optic fiber-optic feedthroughs.
Please contact Cliff™ sales for more information.
Our site uses PDF (portable document format) files to store information on our products. To view these files you should have a PDF reader installed. You can download Adobe Acrobat Reader for free.
