DualSLIMs Narrow Plastic Feedthrough Connectors - Front or Rear Mounting

The FT series of true, feed through, data connectors for electrical instrumentation are perfect for developing custom I/O configurations for wall plates, rack panels, etc.



The DualSLIMs are 19 × 35.5 mm, fit within a narrow 17.15 × 22.86 mm panel cutout and use common cabling for front and back connections. No soldering and no punch terminations - just use the standard cable for that particular connector style.



Mount from the front or the rear with various mounting hole options. Low rear profile.



Available in a variety of styles. Functionality is affected by cable quality, length and cable wiring configuration.



Jump down to BNC, DisplayPort, HDMI, RJ11, RJ12, RJ45, USB 2, USB 3, USB-C, Blanks, Dust Covers.



Please also see our feedthrough connectors, XLR audio and XLR format connectors and USB connectors.





BNC

•

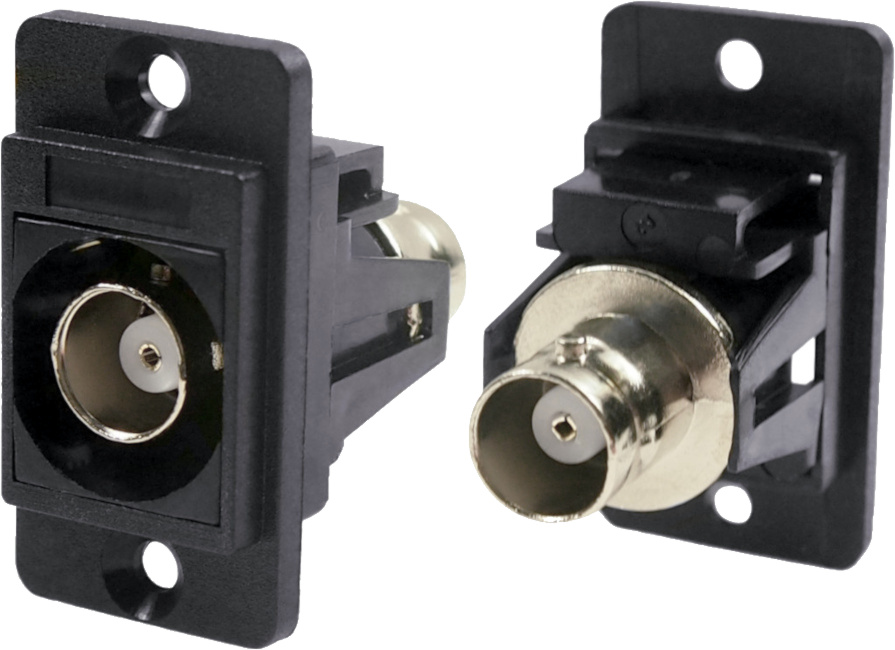

  BNC 50 Ohm DualSLIM narrow plastic front or rear mounting feedthrough connector.



  • CP30737   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30737X  2.5 mm diameter plain mounting holes.
  • CP30737X1 3.2 mm diameter plain mounting holes.



•

  BNC 75 Ohm DualSLIM narrow plastic front or rear mounting feedthrough connector.



  • CP30738   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30738X  2.5 mm diameter plain mounting holes.
  • CP30738X1 3.2 mm diameter plain mounting holes.





DisplayPort

•

  DisplayPort female to female DualSLIM narrow plastic front or rear mounting feedthrough connector. 8K @ 60Hz. Gold-plated contacts.

  DisplayPort to DisplayPort cables are available in 1m and 2m lengths.



  • CP30733   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30733X1 3.2 mm diameter plain mounting holes.



•

  Mini DisplayPort female to female DualSLIM narrow plastic front or rear mounting feedthrough connector. Gold-plated contacts.

  DisplayPort to mini DisplayPort cables are available in 1m and 2m lengths.



  • CP30702   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30702X  2.5 mm diameter plain mounting holes.
  • CP30702X1 3.2 mm diameter plain mounting holes.





HDMI

•

  HDMI 4K female to HDMI 4K female DualSLIM type-A, narrow, black, plastic, front or rear mounting, feedthrough connector. Gold-plated contacts and shell.

  There is also a right-angled version.



  • CP30700G   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30700GX  2.5 mm diameter plain mounting holes.
  • CP30700GX1 3.2 mm diameter plain mounting holes.



•

  HDMI 8K female to HDMI 8K female DualSLIM narrow plastic front or rear mounting feedthrough connector. Gold-plated contacts and shell.

  Shielded HDMI 2.1 supporting 7680 × 4320 at 60 Hz with HDR video support.



  • CP30788   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30788X  2.5 mm diameter plain mounting holes.
  • CP30788X1 3.2 mm diameter plain mounting holes.





RJ11 / RJ14

•

  RJ11 / RJ14 (6P4C) Cat.3 DualSLIM narrow plastic front or rear mounting feedthrough connector. Gold-plated contacts.



  • CP30723   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30723X  2.5 mm diameter plain mounting holes.
  • CP30723X1 3.2 mm diameter plain mounting holes.





RJ12

•

  RJ12 (6P6C) Cat.3 DualSLIM narrow plastic front or rear mounting feedthrough connector. Gold-plated contacts.



  • CP30724   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30724X  2.5 mm diameter plain mounting holes.
  • CP30724X1 3.2 mm diameter plain mounting holes.





RJ45

•

  RJ45 Cat.5e Unshielded UTP DualSLIM narrow plastic front or rear mounting feedthrough connector. Gold-plated contacts.

  There is also a right-angled version.



  • CP30720   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30720X  2.5 mm diameter plain mounting holes.
  • CP30720X1 3.2 mm diameter plain mounting holes.



•

  RJ45 Cat.5e Shielded FTP DualSLIM narrow plastic front or rear mounting feedthrough connector. Gold-plated contacts.



  • CP30720S   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30720SX  2.5 mm diameter plain mounting holes.
  • CP30720SX1 3.2 mm diameter plain mounting holes.



•

  RJ45 Cat.6 Unshielded UTP DualSLIM narrow plastic front or rear mounting feedthrough connector. Gold-plated contacts.

  There is also a right-angled version.



  • CP30722   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30722X  2.5 mm diameter plain mounting holes.
  • CP30722X1 3.2 mm diameter plain mounting holes.



•

  RJ45 Cat.6 Shielded FTP DualSLIM narrow plastic front or rear mounting feedthrough connector. Gold-plated contacts.



  • CP30722S   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30722SX  2.5 mm diameter plain mounting holes.
  • CP30722SX1 3.2 mm diameter plain mounting holes.



•

  RJ45 (8P8C) Cat.6 to IDC DualSLIM narrow, plastic, front or rear mounting, connector. RJ45 has gold-plated contacts. The rear connectors are IDCs rather than a feedthrough.



  • CP30727   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30727X  2.5 mm diameter plain mounting holes.
  • CP30727X1 3.2 mm diameter plain mounting holes.



•

  RJ45 Cat.6a Shielded FTP DualSLIM narrow plastic front or rear mounting feedthrough connector. Gold-plated contacts.



  • CP30725S   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30725SX  2.5 mm diameter plain mounting holes.
  • CP30725SX1 3.2 mm diameter plain mounting holes.





USB 2

•

  USB 2.0 A female to USB 2.0 A female DualSLIM narrow plastic front or rear mounting feedthrough connector. Gold-plated contacts.



  • CP30708N   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30708NX  2.5 mm diameter plain mounting holes.
  • CP30708NX1 3.2 mm diameter plain mounting holes.



•

  USB 2.0 A female to USB 2.0 B female DualSLIM narrow plastic front or rear mounting feedthrough connector. Gold-plated contacts.



  • CP30709N   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30709NX  2.5 mm diameter plain mounting holes.
  • CP30709NX1 3.2 mm diameter plain mounting holes.



•

  USB 2.0 B female to USB 2.0 A female DualSLIM narrow plastic front or rear mounting feedthrough connector. Gold-plated contacts.



  • CP30707N   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30707NX  2.5 mm diameter plain mounting holes.
  • CP30707NX1 3.2 mm diameter plain mounting holes.





USB 3

•

  USB 3.0 A female to USB 3.0 A female DualSLIM narrow plastic front or rear mounting feedthrough connector. Gold-plated contacts.



  • CP30705N   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30705NX  2.5 mm diameter plain mounting holes.
  • CP30705NX1 3.2 mm diameter plain mounting holes.



•

  USB 3.0 B female to USB 3.0 A female DualSLIM narrow plastic front or rear mounting feedthrough connector. Gold-plated contacts.



  • CP30706N   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30706NX  2.5 mm diameter plain mounting holes.
  • CP30706NX1 3.2 mm diameter plain mounting holes.





USB Type C

•

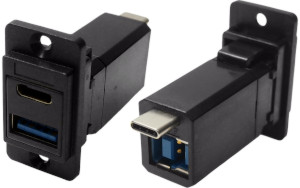

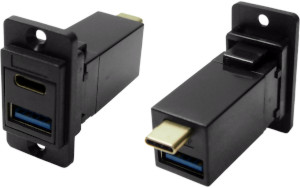

  USB Type-C female to USB Type-C male DualSLIM narrow plastic front or rear mounting feedthrough connector.

  USB-C extension cables available.



  • CP30711   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30711X  2.5 mm diameter plain mounting holes.
  • CP30711X1 3.2 mm diameter plain mounting holes.





Blanking Plates

•

  Blanking plate DualSLIM narrow plastic front or rear mounting feedthrough connector.



  • CP30741   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30741X  2.5 mm diameter plain mounting holes.
  • CP30741X1 3.2 mm diameter plain mounting holes.





Gaskets and Dust Covers

•

  SLIM / DUALSLIM Gaskets and Dust Covers.

  These rubber gaskets are used as dust seals and for colour color identification.



  • CP299812 Black SLIM / DUALSLIM gasket. Where to Buy
  • CP299815 Green SLIM / DUALSLIM gasket. Where to Buy
  • CP299817 Red SLIM / DUALSLIM gasket. Where to Buy
  • CP299818 Blue SLIM / DUALSLIM gasket. Where to Buy
  • CP299822 Black DUALSLIM (countersunk) gasket with dust cover. Where to Buy
  • CP299825 Green DUALSLIM (countersunk) gasket with dust cover. Where to Buy
  • CP299827 Red DUALSLIM (countersunk) gasket with dust cover. Where to Buy
  • CP299828 Blue DUALSLIM (countersunk) gasket with dust cover. Where to Buy
  • CP299832 Black DUALSLIM (countersunk) dust cover. Where to Buy
  • CP299835 Green DUALSLIM (countersunk) dust cover. Where to Buy
  • CP299837 Red DUALSLIM (countersunk) dust cover. Where to Buy
  • CP299838 Blue DUALSLIM (countersunk) dust cover. Where to Buy







Please contact Cliff™ sales for more information.
