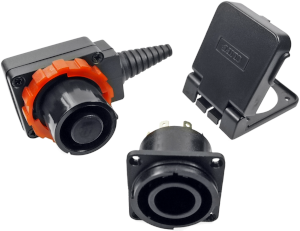

CliffCon® 8 Pole Power Connectors

Our CliffCon® 8 pole connectors are intended for any application where a reliable, locking, touch-proof connector system is required and are ideal for lighting, chargers and instrumentation.



Rated maximum 30A 250V AC. These have a tough, durable construction with an easy locking mechanism, integral cable clamp and touch-proof contacts to BS EN IEC 60065, and BS EN IEC 61010.



General features are similar to our 4 pole version. The 8 pole line connector is only available in a 90° black version. A dust cover is available for the chassis socket. Connections to the socket may be made by soldering or FASTON® receptacle and to the plug by soldering or screw.



Features

• Safety leading ground pin which makes first and breaks last to prevent damage from arcing if disconnected under load.
• FASTON® quick disconnect on panel mounting socket.
• Choice of flat head screw / washer or solder tag connections in cable plug.
• Integral cable clamp for 6 to 15 mm diameter cable.
• Panel mounting connector is airtight.
• Plug and socket mated meets IP55 minimum.



Electrical Specification

• Rated Current: 8 pin 10 A RMS at 80°C, 15 A RMS at 20 °C, (same current on all 8 pins flowing through both plug and socket).
• Rated Voltage: 250 V AC maximum.
• Contact Resistance New: < 8 mΩ.
• Capacitance Between Terminals: < 3.5 pf.
• Insulation Resistance: > 20 mΩ at 1000 V.
• Inrush Current: > 30 A for 20 ms.
• Operating Voltage: −20 to +80 °C.
• Recommended Wiring: pin 1 designated for earth ground.
• Contacts: tin-plated.
• Maximum Wire Size: 6 mm² / 10 AWG (solid); 4 mm² / 12 AWG (stranded).

See the data sheet: CliffCon® 8 Pole Connectors (opens in a new window).



•

  FCR2072 8PC/P  Screw CliffCon® 8 pole connector plug.

  FCR2073 8PC/PS Solder Tag CliffCon® 8 pole connector plug.



•

  FCR2074  8PC/S    CliffCon® 8 pole connector socket.

  FCR20742 8PC/S/PC CliffCon® 8 pole connector socket.



•

  CL2070 8PC/C CliffCon® protective cover assembly.
