CLIFF™ Electronic Components USA

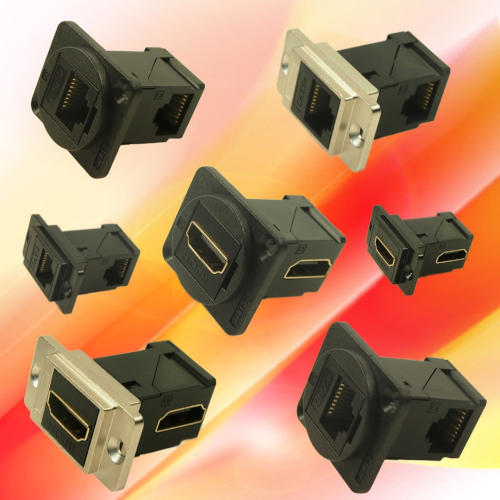

DualSLIMs Narrow Metal Right-Angled Feedthrough Connectors - Front or Rear Mounting

The FT series of true, feed through, data connectors for electrical instrumentation are perfect for developing custom I/O configurations for wall plates, rack panels, etc.



The DualSLIMs are 19 × 35.5 mm, fit within a narrow 17.15 × 22.86 mm panel cutout and use common cabling for both connections. No soldering and no punch terminations - just use the standard cable for that particular connector style.



Mount from the front or the rear with various mounting hole options. Low rear profile.



Available in a variety of styles. Functionality is affected by cable quality, length and cable wiring configuration.



Jump down to HDMI, RJ45, USB 2, USB 3, USB-C, Blanks, Dust Covers.



Part of the CLIFF™ feedthrough connector range.





HDMI

•

  HDMI 4K female to HDMI 4K female DualSLIM type-A, narrow, metal, front or rear mounting, right-angled, feedthrough connector. Gold-plated contacts and shell.



  • CP30753M     Nickel frame with 3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30753MB    Black metal frame with 3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30753M3    Nickel frame with M3 mounting holes.
  • CP30753MB3   Black metal frame with M3 mounting holes.
  • CP30753M440  Nickel frame with #4-40 UNC mounting holes.
  • CP30753MB440 Black metal frame with #4-40 UNC mounting holes.
  • CP30753MX1   Nickel frame with 3.2 mm plain mounting holes.
  • CP30753MBX1  Black metal frame with 3.2 mm plain mounting holes.





RJ45

•

  RJ45 (8P8C) Cat.5e Unshielded UTP DualSLIM narrow, metal ,front or rear mounting, right-angled, feedthrough connector. Gold-plated contacts.



  • CP30751M     Nickel frame with 3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30751MB    Black metal frame with 3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30751M3    Nickel frame with M3 mounting holes.
  • CP30751MB3   Black metal frame with M3 mounting holes.
  • CP30751M440  Nickel frame with #4-40 UNC mounting holes.
  • CP30751MB440 Black metal frame with #4-40 UNC mounting holes.
  • CP30751MX1   Nickel frame with 3.2 mm plain mounting holes.
  • CP30751MBX1  Black metal frame with 3.2 mm plain mounting holes.



•

  RJ45 (8P8C) Cat.6 Unshielded UTP DualSLIM narrow, metal, front or rear mounting, right-angled, feedthrough connector. Gold-plated contacts.



  • CP30752M     Nickel frame with 3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30752MB    Black metal frame with 3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30752M3    Nickel frame with M3 mounting holes.
  • CP30752MB3   Black metal frame with M3 mounting holes.
  • CP30752M440  Nickel frame with #4-40 UNC mounting holes.
  • CP30752MB440 Black metal frame with #4-40 UNC mounting holes.
  • CP30752MX1   Nickel frame with 3.2 mm plain mounting holes.
  • CP30752MBX1  Black metal frame with 3.2 mm plain mounting holes.





USB 2

•

  USB 2.0 female to USB 2.0 female DualSLIM type-A, narrow, metal, front or rear mounting, right-angled, feedthrough connector. Gold-plated contacts.



  • CP30754M     Nickel frame with 3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30754MB    Black metal frame with 3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30754M3    Nickel frame with M3 mounting holes.
  • CP30754MB3   Black metal frame with M3 mounting holes.
  • CP30754M440  Nickel frame with #4-40 UNC mounting holes.
  • CP30754MB440 Black metal frame with #4-40 UNC mounting holes.
  • CP30754MX1   Nickel frame with 3.2 mm plain mounting holes.
  • CP30754MBX1  Black metal frame with 3.2 mm plain mounting holes.





USB 3

•

  USB 3.0 female to USB 3.0 female DualSLIM type-A, narrow, metal, front or rear mounting, right-angled, feedthrough connector. Gold-plated contacts.



  • CP30755M     Nickel frame with 3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30755MB    Black metal frame with 3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30755M3    Nickel frame with M3 mounting holes.
  • CP30755MB3   Black metal frame with M3 mounting holes.
  • CP30755M440  Nickel frame with #4-40 UNC mounting holes.
  • CP30755MB440 Black metal frame with #4-40 UNC mounting holes.
  • CP30755MX1   Nickel frame with 3.2 mm plain mounting holes.
  • CP30755MBX1  Black metal frame with 3.2 mm plain mounting holes.





USB Type C

•

  USB type C female to USB type C male DualSLIM type-A, narrow, metal, front or rear mounting, right-angled, feedthrough connector. Power Delivery (PD) compatible.



  • CP30756M     Nickel frame with 3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30756MB    Black metal frame with 3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30756M3    Nickel frame with M3 mounting holes.
  • CP30756MB3   Black metal frame with M3 mounting holes.
  • CP30756M440  Nickel frame with #4-40 UNC mounting holes.
  • CP30756MB440 Black metal frame with #4-40 UNC mounting holes.
  • CP30756MX1   Nickel frame with 3.2 mm plain mounting holes.
  • CP30756MBX1  Black metal frame with 3.2 mm plain mounting holes.





Blanking Plates

•

  Blanking plate DualSLIM narrow, metal, front or rear mounting feedthrough connector.



  • CP30741M     Nickel frame with 3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30741MB    Black metal frame with 3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30741M3    Nickel frame with M3 mounting holes.
  • CP30741MB3   Black metal frame with M3 mounting holes.
  • CP30741M440  Nickel frame with #4-40 UNC mounting holes.
  • CP30741MB440 Black metal frame with #4-40 UNC mounting holes.
  • CP30741MX1   Nickel frame with 3.2 mm plain mounting holes.
  • CP30741MBX1  Black metal frame with 3.2 mm plain mounting holes.





Gaskets and Dust Covers

•

  SLIM / DUALSLIM Gaskets and Dust Covers.

  These rubber gaskets are used as dust seals and for colour color identification.



  • CP299812 Black SLIM / DUALSLIM gasket.
  • CP299815 Green SLIM / DUALSLIM gasket.
  • CP299817 Red SLIM / DUALSLIM gasket.
  • CP299818 Blue SLIM / DUALSLIM gasket.
  • CP299822 Black DUALSLIM (countersunk) gasket with dust cover.
  • CP299825 Green DUALSLIM (countersunk) gasket with dust cover.
  • CP299827 Red DUALSLIM (countersunk) gasket with dust cover.
  • CP299828 Blue DUALSLIM (countersunk) gasket with dust cover.
  • CP299832 Black DUALSLIM (countersunk) dust cover.
  • CP299835 Green DUALSLIM (countersunk) dust cover.
  • CP299837 Red DUALSLIM (countersunk) dust cover.
  • CP299838 Blue DUALSLIM (countersunk) dust cover.







Please contact Cliff™ sales for more information.
