SLIMs Narrow Metal Feedthrough Connectors - Front Mounting

The FT series of true, feed through, data connectors for electrical instrumentation are perfect for developing custom I/O configurations for wall plates, rack panels, etc.



The SLIMs fit within a standard 19mm x 25.5mm panel cutout and use common cabling for front and back connections. No soldering and no punch terminations - just use the standard cable for that particular connector style.



Mount from the front with various mounting hole options. Low rear profile.



Available in a variety of styles. Functionality is affected by cable quality, length and cable wiring configuration.



Please also see our feedthrough connectors, XLR audio and XLR format connectors and USB connectors.





•

  HDMI female to HDMI female SLIM narrow, metal, front-mounting, feedthrough connector. Gold-plated contacts and shell.



  • CP30600GM    Nickel frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30600GMB   Black metal frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30600GMX1  Nickel frame with 3.2mm diameter plain mounting holes.
  • CP30600GMBX1 Black metal frame with 3.2mm diameter plain mounting holes.



•

  USB 3.0 A female to USB 3.0 A female SLIM narrow, metal, front-mounting, feedthrough connector. Gold-plated contacts.



  • CP30605NM    Nickel frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30605NMB   Black metal frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30605NMX1  Nickel frame with 3.2mm diameter plain mounting holes.
  • CP30605NMBX1 Black metal frame with 3.2mm diameter plain mounting holes.



•

  USB 3.0 B female to USB 3.0 A female SLIM narrow, metal, front-mounting, feedthrough connector. Gold-plated contacts.



  • CP30606NM    Nickel frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30606NMB   Black metal frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30606NMX1  Nickel frame with 3.2mm diameter plain mounting holes.
  • CP30606NMBX1 Black metal frame with 3.2mm diameter plain mounting holes.



•

  USB 2.0 B female to USB 2.0 A female SLIM narrow, metal, front-mounting, feedthrough connector. Gold-plated contacts.



  • CP30607NM    Nickel frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30607NMB   Black metal frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30607NMX1  Nickel frame with 3.2mm diameter plain mounting holes.
  • CP30607NMBX1 Black metal frame with 3.2mm diameter plain mounting holes.



•

  USB 2.0 A female to USB 2.0 A female SLIM narrow, metal, front-mounting, feedthrough connector. Gold-plated contacts.



  • CP30608NM    Nickel frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30608NMB   Black metal frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30608NMX1  Nickel frame with 3.2mm diameter plain mounting holes.
  • CP30608NMBX1 Black metal frame with 3.2mm diameter plain mounting holes.



•

  USB 2.0 A female to USB 2.0 B female SLIM narrow, metal, front-mounting, feedthrough connector. Gold-plated contacts.



  • CP30609NM    Nickel frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30609NMB   Black metal frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30609NMX1  Nickel frame with 3.2mm diameter plain mounting holes.
  • CP30609NMBX1 Black metal frame with 3.2mm diameter plain mounting holes.



•

  USB Type-C female to USB Type-C male SLIM narrow, metal, front-mounting, feedthrough connector.



  • CP30611M    Nickel frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30611MB   Black metal frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30611MX1  Nickel frame with 3.2mm diameter plain mounting holes.
  • CP30611MBX1 Black metal frame with 3.2mm diameter plain mounting holes.



•

  UTP Unshielded Cat.5e RJ45 SLIM narrow, metal, front-mounting, feedthrough connector. Gold-plated contacts.



  • CP30620M    Nickel frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30620MB   Black metal frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30620MX1  Nickel frame with 3.2mm diameter plain mounting holes.
  • CP30620MBX1 Black metal frame with 3.2mm diameter plain mounting holes.



•

  FTP Shielded Cat.5e RJ45 SLIM narrow, metal, front-mounting, feedthrough connector. Gold-plated contacts.



  • CP30620SM    Nickel frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30620SMB   Black metal frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30620SMX1  Nickel frame with 3.2mm diameter plain mounting holes.
  • CP30620SMBX1 Black metal frame with 3.2mm diameter plain mounting holes.



•

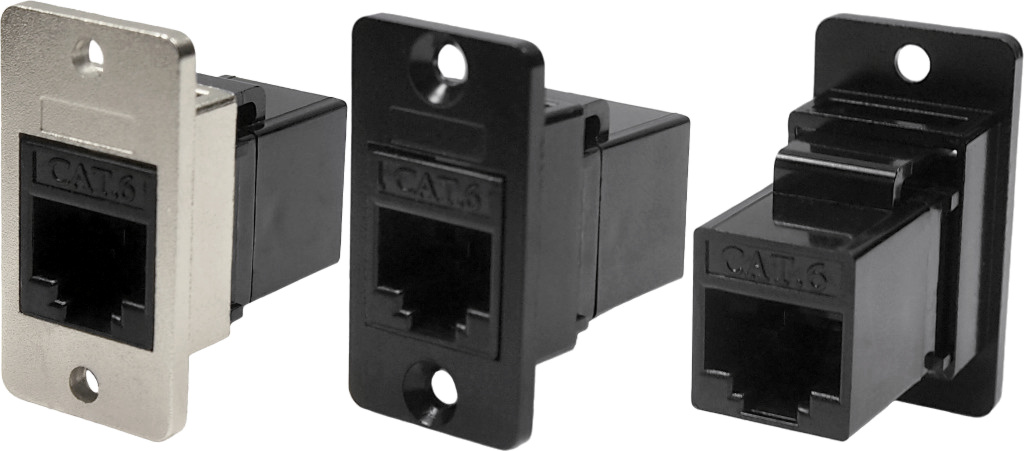

  UTP Unshielded Cat.6 RJ45 SLIM narrow, metal, front-mounting, feedthrough connector. Gold-plated contacts.



  • CP30622M    Nickel frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30622MB   Black metal frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30622MX1  Nickel frame with 3.2mm diameter plain mounting holes.
  • CP30622MBX1 Black metal frame with 3.2mm diameter plain mounting holes.



•

  FTP Shielded Cat.6 RJ45 SLIM narrow, metal, front-mounting, feedthrough connector. Gold-plated contacts.



  • CP30622SM    Nickel frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30622SMB   Black metal frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30622SMX1  Nickel frame with 3.2mm diameter plain mounting holes.
  • CP30622SMBX1 Black metal frame with 3.2mm diameter plain mounting holes.



•

  Cat.3 RJ11 / RJ14 (6P4C) SLIM narrow, metal, front-mounting, feedthrough connector. Gold-plated contacts.



  • CP30623M    Nickel frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30623MB   Black metal frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30623MX1  Nickel frame with 3.2mm diameter plain mounting holes.
  • CP30623MBX1 Black metal frame with 3.2mm diameter plain mounting holes.



•

  FTP Shielded Cat.6a RJ45 SLIM narrow, metal, front-mounting, feedthrough connector. Gold-plated contacts.



  • CP30625SM    Nickel frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30625SMB   Black metal frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30625SMX1  Nickel frame with 3.2mm diameter plain mounting holes.
  • CP30625SMBX1 Black metal frame with 3.2mm diameter plain mounting holes.



•

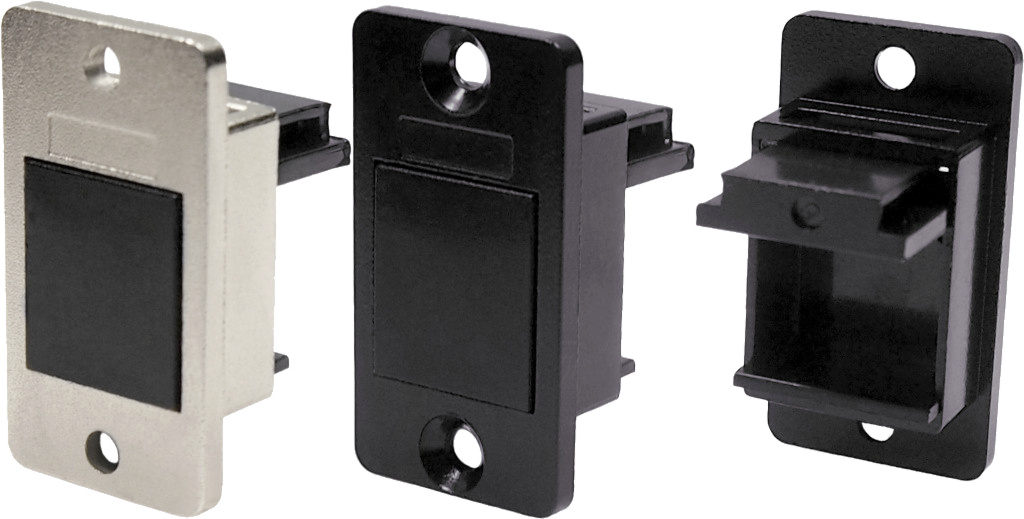

  Blanking plate SLIM narrow, metal, front-mounting, feedthrough connector.



  • CP30641M    Nickel frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30641MB   Black metal frame with 3.2mm countersunk mounting holes (90° × ⌀5.85mm).
  • CP30641MX1  Nickel frame with 3.2mm diameter plain mounting holes.
  • CP30641MBX1 Black metal frame with 3.2mm diameter plain mounting holes.







Please contact Cliff™ sales for more information.
