CLIFF™ Electronic Components USA

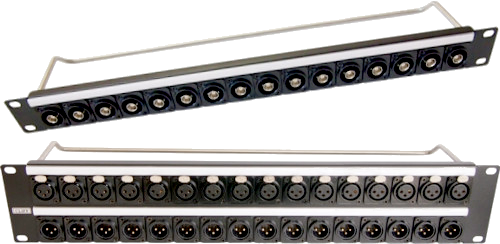

Loaded 1U and 2U 19″ Panels for Rack Mounting

Show/hide description.



• Jump down to
• BNC,
• HDMI,
• Optical,
• RJ45,
• USB 2,
• XLR Audio,



• Please also see our
• empty panels,
• feedthrough connectors,
• XLR audio and XLR format connectors and
• USB connectors.







BNC

•

  1U. 16 × 50 Ω insulated BNC black metal feedthroughs (CP30125). Front mounted.



  • CP30184 M3 × 0.5 threaded connector mounting holes. Where to Buy





•

  1U. 16 × 75 Ω insulated BNC black metal feedthroughs (CP30126). Front mounted.



  • CP30170 M3 × 0.5 threaded connector mounting holes. Where to Buy
  • CP30171 #4-40 UNC threaded connector mounting holes. Where to Buy





•

  1U. 16 × 75 Ω gold insulated BNC black plastic feedthroughs (CP303112G). Front mounted.



  • CP30186 M3 × 0.5 threaded connector mounting holes. Where to Buy





•

  1U. 16 × 50 Ω BNC SLIM black metal feedthroughs (CP30637MB). Front mounted.



  • CP30188 M3 × 0.5 threaded connector mounting holes. Where to Buy





•

  1U. 16 × 75 Ω BNC SLIM black metal feedthroughs (CP30638MB). Front mounted.



  • CP30189 M3 × 0.5 threaded connector mounting holes. Where to Buy





•

  1U. 20 × 50 Ω BNC SLIM black metal feedthroughs (CP30637MB). Front mounted.



  • CP30190 M3 × 0.5 threaded connector mounting holes. Where to Buy





•

  1U. 20 × 75 Ω BNC SLIM black metal feedthroughs (CP30638MB). Front mounted.



  • CP30191 M3 × 0.5 threaded connector mounting holes. Where to Buy





HDMI

•

  1U. 16 HDMI 4K to HDMI 4K type-A horizontal black metal feedthroughs (CP30122). Front mounted.



  • CP30174 M3 × 0.5 threaded connector mounting holes. Where to Buy





Optical Fibre Fiber

•

  1U. 16 ST / BFOC optical fibre fiber black metal feedthroughs (CP30218MB). Front mounted.



  • CP30178 M3 × 0.5 threaded connector mounting holes. Where to Buy





•

  1U. 16 LC duplex SM optical fibre fiber black metal feedthroughs (CP30213MB). Front mounted.



  • CP30179 M3 × 0.5 threaded connector mounting holes. Where to Buy





•

  1U. 16 LC duplex MM optical fibre fiber black metal feedthroughs (CP30214MB). Front mounted.



  • CP30180 M3 × 0.5 threaded connector mounting holes. Where to Buy





RJ45

•

  1U. 16 Cat.6 RJ45 black metal feedthroughs (CP30222MB). Front mounted.



  • CP30172 #4-40 UNC threaded connector mounting holes. Where to Buy
  • CP30173 M3 × 0.5 threaded connector mounting holes. Where to Buy





•

  1U. 16 Cat.6a RJ45 black metal feedthroughs (CP30225SMB). Front mounted.



  • CP30177 M3 × 0.5 threaded connector mounting holes. Where to Buy





USB 2

•

  1U. 16 USB2 A to USB2 B horizontal black metal feedthroughs (CP30114). Front mounted.



  • CP30175 M3 × 0.5 threaded connector mounting holes. Where to Buy





•

  1U. 16 USB2 B to USB2 A black metal feedthroughs (CP30115). Front mounted.



  • CP30176 M3 × 0.5 threaded connector mounting holes. Where to Buy





XLR Audio

•

  1U. 16 XLR 3-Pole Male black metal sockets (FC61905). Front mounted.

  The connectors have solder tags rather than being feedthroughs.



  • CP30181 M3 × 0.5 threaded connector mounting holes. Where to Buy





•

  1U. 16 XLR 3-Pole Female black metal sockets (FC61900). Front mounted.

  The connectors have solder tags rather than being feedthroughs.



  • CP30182 M3 × 0.5 threaded connector mounting holes. Where to Buy





•

  1U. 8 XLR 3-Pole Female and 8 XLR 3-Pole Male black metal sockets (FC61900 and FC61905). Front mounted.

  The connectors have solder tags rather than being feedthroughs.



  • CP30183 M3 × 0.5 threaded connector mounting holes. Where to Buy





•

  2U. 16 XLR 3-Pole Female and 16 XLR 3-Pole Male black metal sockets (FC61900 and FC61905). Front mounted.

  The connectors have solder tags rather than being feedthroughs.



  • CP30192 M3 × 0.5 threaded connector mounting holes. Where to Buy









Please contact Cliff™ sales for more information.
