SLIMs Narrow Plastic Feedthrough Connectors - Front Mounting

The FT series of true, feed through, data connectors for electrical instrumentation are perfect for developing custom I/O configurations for wall plates, rack panels, etc.



The SLIMs are 19 × 35.5 mm, fit within a narrow 17.15 × 22.86 mm panel cutout and use common cabling for front and back connections. No soldering and no punch terminations - just use the standard cable for that particular connector style.



Mount from the front with various mounting hole options. Low rear profile.



Available in a variety of styles. Functionality is affected by cable quality, length and cable wiring configuration.



Jump down to BNC, DisplayPort, HDMI, RJ11, RJ12, RJ45, USB 2, USB 3, USB-C, Blanks, Dust Covers.



Please also see our feedthrough connectors, XLR audio and XLR format connectors and USB connectors.





BNC

•

  BNC 50 Ohm SLIM narrow, black, plastic, front mounting, feedthrough connector.



  • CP30637   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30637X  2.5 mm diameter plain mounting holes.
  • CP30637X1 3.2 mm diameter plain mounting holes.



•

  BNC 75 Ohm SLIM narrow, black, plastic, front mounting, feedthrough connector.



  • CP30638   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30638X  2.5 mm diameter plain mounting holes.
  • CP30638X1 3.2 mm diameter plain mounting holes.





DisplayPort

•

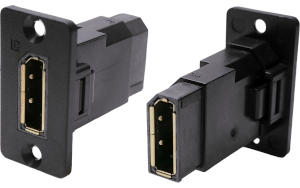

  DisplayPort female to female SLIM narrow, black, plastic, front mounting, feedthrough connector. 8K @ 60Hz.

  DisplayPort to DisplayPort cables are available in 1m and 2m lengths.



  • CP30633   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30633X1 3.2 mm diameter plain mounting holes.



•

  Mini DisplayPort female to female SLIM narrow, black, plastic, front mounting, feedthrough connector.

  DisplayPort to mini DisplayPort cables are available in 1m and 2m lengths.



  • CP30602   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30602X  2.5 mm diameter plain mounting holes.
  • CP30602X1 3.2 mm diameter plain mounting holes.





HDMI

•

  HDMI 4K female to HDMI 4K female SLIM type-A, narrow, black, plastic, front mounting, feedthrough connector.



  • CP30600G   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30600GX  2.5 mm diameter plain mounting holes.
  • CP30600GX1 3.2 mm diameter plain mounting holes.



•

  HDMI 8K female to HDMI 8K female SLIM type-A, narrow, black, plastic, front mounting, feedthrough connector.

  Shielded HDMI 2.1 supporting 7680 × 4320 at 60 Hz with HDR video support.



  • CP30688   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30688X  2.5 mm diameter plain mounting holes.
  • CP30688X1 3.2 mm diameter plain mounting holes.





RJ11 / RJ14

•

  RJ11 / RJ14 (6P4C) Cat.3 SLIM narrow, black, plastic, front mounting, feedthrough connector.



  • CP30623   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30623X  2.5 mm diameter plain mounting holes.
  • CP30623X1 3.2 mm diameter plain mounting holes.





RJ12

•

  RJ12 (6P6C) Cat.3 SLIM narrow, black, plastic, front mounting, feedthrough connector. Gold-plated contacts.



  • CP30624   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30624X  2.5 mm diameter plain mounting holes.
  • CP30624X1 3.2 mm diameter plain mounting holes.





RJ45

•

  RJ45 Cat.5e Unshielded UTP SLIM narrow, black, plastic, front mounting, feedthrough connector.



  • CP30620   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30620X  2.5 mm diameter plain mounting holes.
  • CP30620X1 3.2 mm diameter plain mounting holes.



•

  RJ45 Cat.5e Shielded FTP SLIM narrow plastic front mounting feedthrough connector.



  • CP30620S   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30620SX  2.5 mm diameter plain mounting holes.
  • CP30620SX1 3.2 mm diameter plain mounting holes.



•

  RJ45 Cat.6 Unshielded UTP SLIM narrow, black, plastic, front mounting, feedthrough connector.



  • CP30622   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30622X  2.5 mm diameter plain mounting holes.
  • CP30622X1 3.2 mm diameter plain mounting holes.



•

  RJ45 Cat.6 Shielded FTP SLIM narrow, black, plastic, front mounting, feedthrough connector.



  • CP30622S   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30622SX  2.5 mm diameter plain mounting holes.
  • CP30622SX1 3.2 mm diameter plain mounting holes.



•

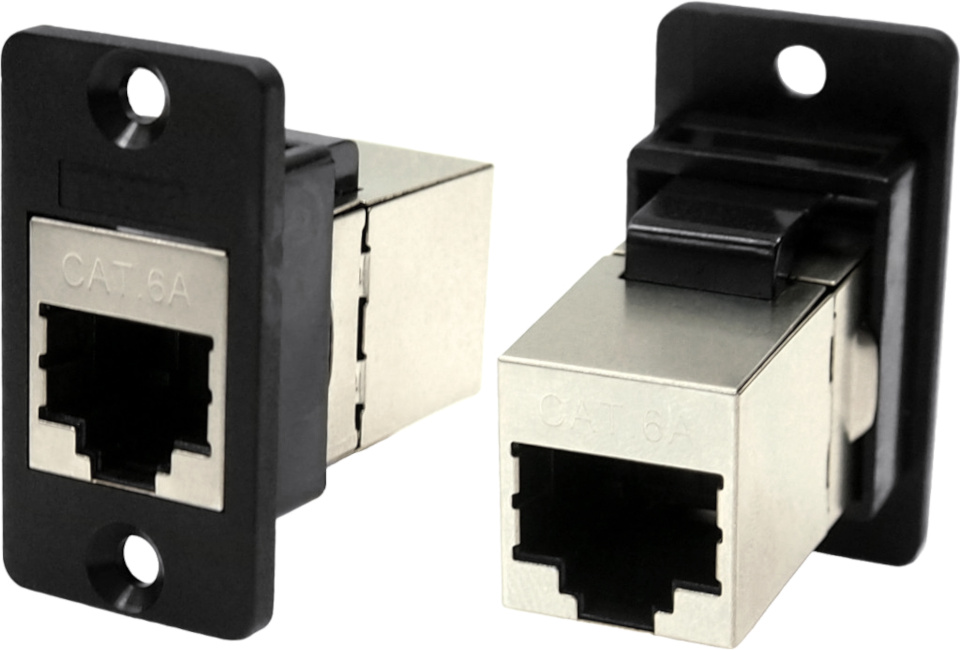

  RJ45 Cat.6a Shielded FTP SLIM narrow, black, plastic, front mounting, feedthrough connector.



  • CP30625S   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30625SX  2.5 mm diameter plain mounting holes.
  • CP30625SX1 3.2 mm diameter plain mounting holes.





USB 2

•

  USB 2.0 A female to USB 2.0 A female SLIM narrow, black, plastic, front mounting, feedthrough connector.



  • CP30608N   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30608NX  2.5 mm diameter plain mounting holes.
  • CP30608NX1 3.2 mm diameter plain mounting holes.



•

  USB 2.0 A female to USB 2.0 B female SLIM narrow, black, plastic, front mounting, feedthrough connector.



  • CP30609N   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30609NX  2.5 mm diameter plain mounting holes.
  • CP30609NX1 3.2 mm diameter plain mounting holes.



•

  USB 2.0 B female to USB 2.0 A female SLIM narrow, black, plastic, front mounting, feedthrough connector.



  • CP30607N   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30607NX  2.5 mm diameter plain mounting holes.
  • CP30607NX1 3.2 mm diameter plain mounting holes.





USB 3

•

  USB 3.0 A female to USB 3.0 A female SLIM narrow, black, plastic, front mounting, feedthrough connector.



  • CP30605N   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30605NX  2.5 mm diameter plain mounting holes.
  • CP30605NX1 3.2 mm diameter plain mounting holes.



•

  USB 3.0 B female to USB 3.0 A female SLIM narrow, black, plastic, front mounting, feedthrough connector.



  • CP30606N   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30606NX  2.5 mm diameter plain mounting holes.
  • CP30606NX1 3.2 mm diameter plain mounting holes.





USB Type C

•

  USB Type-C female to USB Type-C male SLIM narrow, black, plastic, front mounting, feedthrough connector.

  USB-C extension cables available.



  • CP30611   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30611X  2.5 mm diameter plain mounting holes.
  • CP30611X1 3.2 mm diameter plain mounting holes.





Blanking Plates

•

  Blanking plate SLIM narrow, black, plastic, front mounting, feedthrough connector.



  • CP30641   3.2 mm countersunk mounting holes (90 ° × ⌀5.85 mm).
  • CP30641X  2.5 mm diameter plain mounting holes.
  • CP30641X1 3.2 mm diameter plain mounting holes.





Gaskets and Dust Covers

•

  SLIM / DUALSLIM Gaskets and Dust Covers.

  These rubber gaskets are used as dust seals and for colour color identification.



  • CP299812 Black SLIM / DUALSLIM gasket. Where to Buy
  • CP299815 Green SLIM / DUALSLIM gasket. Where to Buy
  • CP299817 Red SLIM / DUALSLIM gasket. Where to Buy
  • CP299818 Blue SLIM / DUALSLIM gasket. Where to Buy
  • CP299822 Black DUALSLIM (countersunk) gasket with dust cover. Where to Buy
  • CP299825 Green DUALSLIM (countersunk) gasket with dust cover. Where to Buy
  • CP299827 Red DUALSLIM (countersunk) gasket with dust cover. Where to Buy
  • CP299828 Blue DUALSLIM (countersunk) gasket with dust cover. Where to Buy
  • CP299832 Black DUALSLIM (countersunk) dust cover. Where to Buy
  • CP299835 Green DUALSLIM (countersunk) dust cover. Where to Buy
  • CP299837 Red DUALSLIM (countersunk) dust cover. Where to Buy
  • CP299838 Blue DUALSLIM (countersunk) dust cover. Where to Buy







Please contact Cliff™ sales for more information.
