The S4S is a stacking version of the classic S4 model. It offers the increased packing density of the stacked jack with the classic domed nut appearance.
This version is produced with three nose length options, one having a fine thread. S4S is available in mono or stereo with PC-C style contacts only. The jack sockets are supplied in cartons of 500 or 1000 pieces, are produced in our China plant and stocked worldwide.
Features
High packing density.
Brass / phosphor bronze, tinned contacts for low contact resistance and superior performance.
Snap-in PCB mounting.
Designed for behind-the-panel mounting.
Durable, grade-1, black, nylon body.
Enhanced appearance.
Specifications
Withstand Voltage:
2000 V DC minimum.
Maximum Current:
5 A.
Temperature Rating:
−10 to +70 °C.
Life (minimum):
10,000+ operations.
Contact resistance:
< 100 mΩ.
UK Patent:
2314464.
US Patent:
6116959.
When ordering, please state the contact arrangement required when a plug is inserted, from the front of the jack socket, using B=Break, N=No contact.
Make contacts are not available, if Make contacts are required the traditional S4 should be used.
S4SA has a 2.9 mm nose with 3/8″ × 20 TPI.
S4SB has a 3.5 mm nose with 3/8″ × 20 TPI.
S4SC has a 4.6 mm nose with 3/8″ × 20 TPI.
S4SD has a 2.9 mm nose with 3/8″ × 26 TPI fine thread.
For example, S4SA / SH / BNB × 2 is a dual, two-pole, stacked-high (with has a spacer between the jacks), mono, jack socket with a 2.9 mm nose.
S is available as well as SH for stacked without a spacer. WNB = with nut and bezel.
Part numbers will vary depending on contact arrangements. Some examples are shown below.
Single, 2.9 mm nose with 3/8″ × 20 TPI.
FCR12610 Stereo S4SA / BBB / PCC / WNB.
FCR12615 Mono S4SA / BNB / PCC / WNB.
Dual, 2.9 mm nose with 3/8″ × 20 TPI, stacked high (with a spacer between the jacks).

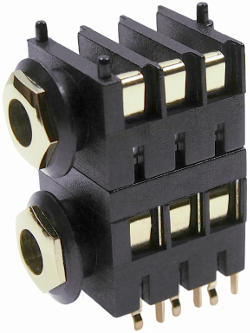

FCR12620 Stereo S4SA / SH / BBB × 2 / PCC / WNB.
FCR12625 Mono S4SA / SH / BNB × 2 / PCC / WNB.
Single, 2.9 mm nose with 3/8″ × 26 TPI.
FCR12630 Stereo S4SD / BBB / PCC / WNB.
FCR12635 Mono S4SD / BNB / PCC / WNB.
Dual, 2.9 mm nose with 3/8″ × 26 TPI, stacked high (with a spacer between the jacks).
