Professional Jack Sockets
2.5 mm and 3.5 mm Jack Sockets
The Cliff™ range of 2.5 mm and 3.5 mm jack sockets are available with unswitched, switched or make contacts. They come in a choice of solder tag or PCB mounting versions.
2.5 mm Jack Sockets
JYO-25 Mono switched 2.5 mm with M4, threaded, metal nose.
Panel mounting with solder tags.
Supplied with metal, ring nut.
- FC6810.
JYO-29 Mono 2.5 mm.
Right angle PCB mounting.
- FC68102.
JYO-26 Mono switched 2.5 mm with M4, threaded, metal nose.
Right angle PCB mounting.
Supplied with metal, ring nut.
- FC6811.
3.5 mm Jack Sockets

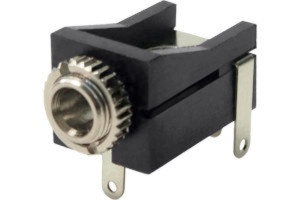

Mono switched 3.5 mm with M6, threaded, metal nose.
Right angle PCB mounting.
Supplied with metal, ring nut.
- FC68118.
JYO-35 Mono switched 3.5 mm with M6, threaded, metal nose.
Panel mounting with solder tags.
Supplied with metal, ring nut.
- FC6812.
JYO-39-3P Stereo unswitched 3.5 mm.
Right angle PCB mounting. Tin / nickel plated.
- FC68131.
-

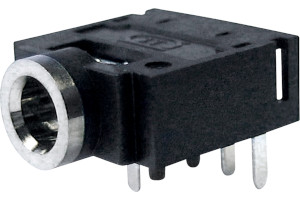

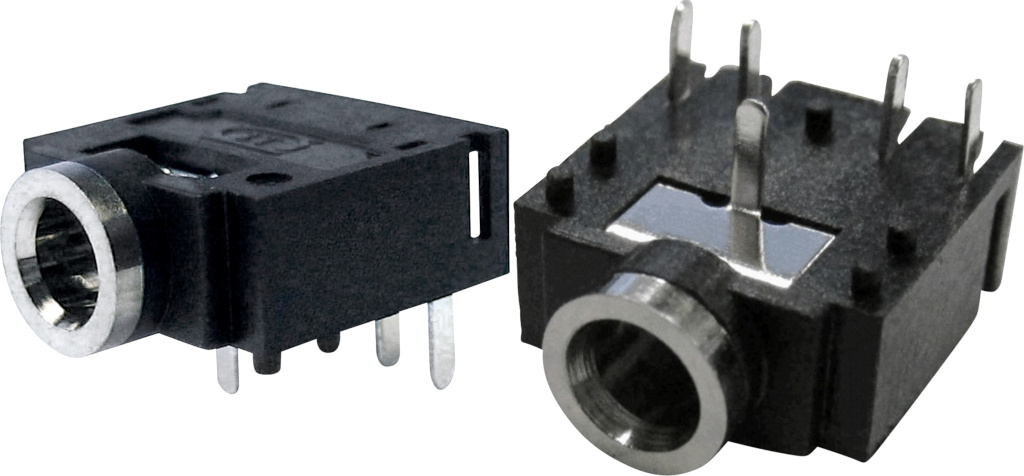

JYO-39-5P Stereo switched 3.5 mm. Right angle PCB mounting.
- FC68133 Tin / nickel plated.
- FC68133G Gold plated.
Stereo switched 3.5 mm.
Vertical panel mounting with solder tags.
Supplied with M8, metal, slotted, ring nut.
- FC681374V.
Stereo switched 3.5 mm.
Vertical PCB mounting.
Supplied with M8, metal, slotted, ring nut.
- FC681375V.
Stereo switched 3.5 mm.
Vertical PCB mounting.
Supplied with M8, metal, hexagonal nut.
- FC681375VH.
JYS-35 Stereo switched 3.5 mm with M6, threaded, metal nose.
Right angle PCB mounting.
Supplied with metal, ring nut.
- FT6320.
S6/SS Mono unswitched 3.5 mm.
Panel mounting with solder tags.
M8, metal, hexagonal nut.
- CL1362.
S6/BB Mono switched 3.5 mm.
Panel mounting with solder tags.
Supplied with M8, nickel-plated, brass, hexagonal nut, unassembled.
- CL1382 Black.
S6/BB Mono switched 3.5 mm.
Right angle PCB mounting.
Supplied with M8, nickel-plated, brass, hexagonal nut, unassembled.
- CL1384 Black.
S6/BB PC Mono switched 3.5 mm.
Right angle PCB mounting with a 5.5 mm height off the board.
No nut.
- CL13843.
S6G/BB PC Mono switched 3.5 mm.
Right angle PCB mounting with a 5.5 mm height off the board. Gold plated.
No nut.
- CL13843G.
S6/BB PC Mono switched 3.5 mm.
Right angle PCB mounting with a 5.5 mm height off the board.
Supplied with metal, hexagonal nut.
- CL13845.
S6G/BB PC Mono switched 3.5 mm.
Right angle PCB mounting with a 5.5 mm height off the board. Gold plated.
Supplied with metal, hexagonal nut.
- CL13845G.
S6C-A/BB Mono 3.5 mm.
Right angle PCB mounting with a 6 mm height off the board.
Supplied with metal, hexagonal nut.
- FCR1281.
S9/BBB Stereo 3.5 mm mini.
Right angle PCB mounting with a 6 mm height off the board.
- FCR1295.
S9/BBB Stereo 3.5 mm mini.
Right angle PCB mounting with a 6 mm height off the board. Gold plated.
- FCR1295G.
Professional Jack Sockets - general information
Please contact Cliff™ sales for more information.
