Test Lead Sets

Multifunction Two and Three Wire Test Lead Sets

Cliff test leads are semi custom made to order. We can combine any of our components to produce leads to suit most applications. Our lead sets are usually supplied packed in a plastic wallet. All 4mm plugs are shrouded and touchproof. All components conform to IEC 61010.



We have three kinds of standard, double-insulated cable, rated 1KV (PVC), 5KV and 12KV (silicone). Available in black, red, green, blue, brown and yellow.

See the PDF data sheet: Three-Lead and Two-Lead Test Sets portable document format (opens in a new window).

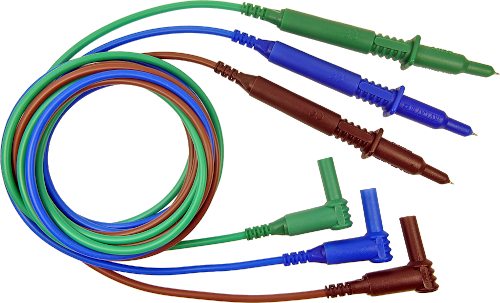

CIH29910 Lead Set (unfused)



CIH29910 Three Lead Set: unfused probes to 90° 4mm plugs including CAT III probe adapters.



1.5m silicone cable.

Blue / Green / Brown .

TPR1C unfused probe.

Probe adapter: 1KV CAT III.

4mm 90-degree plug.



Lead Rating:



Kit comprises:

See the PDF data sheet: Three-Lead and Two-Lead Test Sets portable document format and CIH29910 lead set drawing portable document format (these open in a new window).

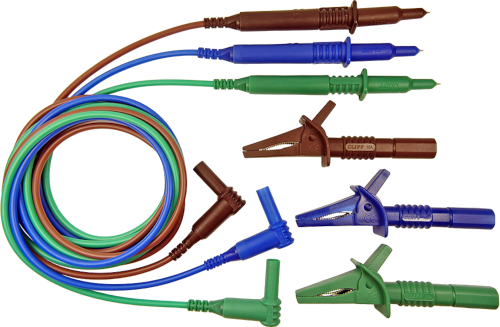

CIH29915 Lead Set (unfused)



CIH29915 Three Lead Set: unfused probes to 90° 4mm plugs including CAT III probe adapters and push-fit crocodile clips.



1.5m silicone cable.

Blue / Green / Brown .

TPR1C unfused probe.

Probe adapter: 1KV CAT III.

4mm 90-degree plug.

Extended push-fit crocodile clip: 10A 1000V CAT II, 600V CAT III.



Lead Rating:



Kit comprises:

See the PDF data sheet: Three-Lead and Two-Lead Test Sets portable document format and CIH29915 lead set drawing portable document format (these open in a new window).

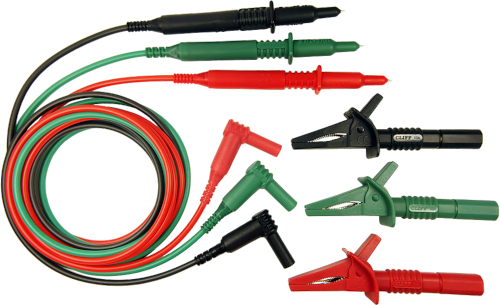

CIH29916 Lead Set (unfused)



CIH29916 Three Lead Set: unfused probes to 90° 4mm plugs including CAT III probe adapters and push-fit crocodile clips.



1.5m silicone cable.

Red / Black / Green .

TPR1C unfused probe.

Probe adapter: 1KV CAT III.

4mm 90-degree plug.

Extended push-fit crocodile clip: 10A 1000V CAT II, 600V CAT III.



Lead Rating:



Kit comprises:

See the PDF data sheet: Three-Lead and Two-Lead Test Sets portable document format and CIH29916 lead set drawing portable document format (these open in a new window).

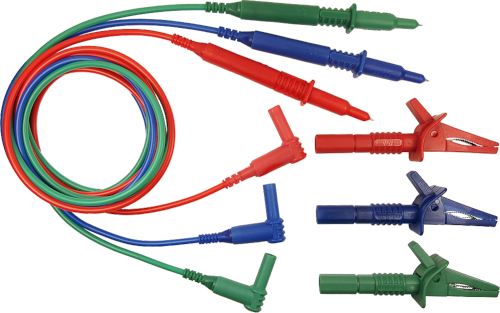

CIH29917 Lead Set (unfused)



CIH29917 Three Lead Set: unfused probes to 90° 4mm plugs including CAT III probe adapters and push-fit crocodile clips.



1.5m silicone cable.

Blue / Green / Red .

TPR1C unfused probe.

Probe adapter: 1KV CAT III.

4mm 90-degree plug.

Extended push-fit crocodile clip: 10A 1000V CAT II, 600V CAT III.



Lead Rating:



Kit comprises:

See the PDF data sheet: Three-Lead and Two-Lead Test Sets portable document format and CIH29917 lead set drawing portable document format (these open in a new window).



CIH3021 Lead Set (fused)



CIH3021 Three Lead Set: fused probes to 90° 4mm plugs including screw-fit crocodile clips.



1.25m silicone cable.

Red / Black / Green .

1kV CAT III probe, 600V CAT III clip.

Fused: 10A F, 600V HBC 50kA, inline.

4mm 90-degree plug.

Screw-fit crocodile clip: 10A 1000V CAT II, 600V CAT III.



Lead Rating:



Kit comprises:

See the PDF data sheet: Three-Lead and Two-Lead Test Sets portable document format and CIH3021 lead set drawing portable document format (these open in a new window).



CIH3022 Lead Set (fused)



CIH3022 Three Lead Set: fused probes to 90° 4mm plugs including screw-fit crocodile clips.



1.25m silicone cable.

Red / Blue / Green .

1kV CAT III probe, 600V CAT III clip.

Fused: 10A F, 600V HBC 50kA, inline.

4mm 90-degree plug.

Screw-fit crocodile clip: 10A 1000V CAT II, 600V CAT III.



Lead Rating:



Kit comprises:

See the PDF data sheet: Three-Lead and Two-Lead Test Sets portable document format and CIH3022 lead set drawing portable document format (these open in a new window).

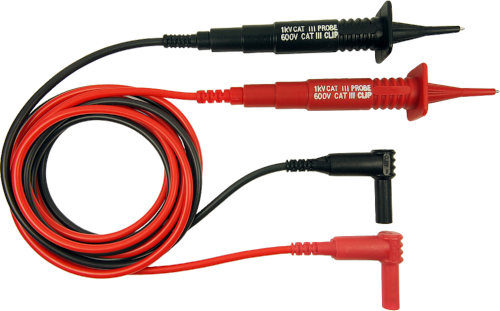

CIH3006 Lead Set (fused)



CIH3006 Two Lead Set: fused probes to 90° 4mm plugs.



1.5m silicone cable.

Red / Black .

1kV CAT III probe, 600V CAT III clip.

Fused: 500mA FF, 1kV HBC 50kA.

4mm 90-degree plug.



Kit comprises:

See the PDF data sheet: Three-Lead and Two-Lead Test Sets portable document format and CIH3006 lead set drawing portable document format (these open in a new window).

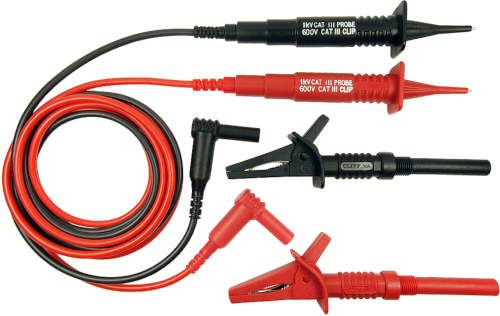

CIH3007 Lead Set (fused)



CIH3007 Two Lead Set: fused probes to 90° 4mm plugs including screw-fit crocodile clips.



1.5m silicone cable.

Red / Black .

1kV CAT III probe, 600V CAT III clip.

Fused: 500mA FF, 1kV HBC 50kA.

4mm 90-degree plug.

Screw-fit crocodile clip: 10A 1000V CAT II, 600V CAT III.



Kit comprises:

See the PDF data sheet: Three-Lead and Two-Lead Test Sets portable document format and CIH3007 lead set drawing portable document format (these open in a new window).

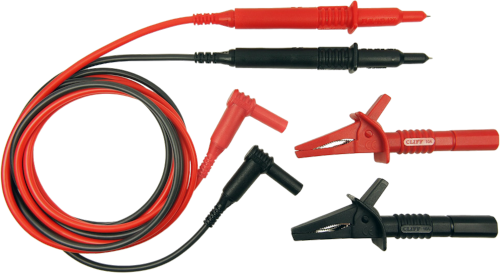

CIH29890 Lead Set (unfused)



CIH29890 Two Lead Set: unfused probes to 90° 4mm plugs including CAT III probe adapters and push-fit crocodile clips. 1.5m silicone cable.



CIH29892 As above but with a 1.2m cable.



Red / Black .

TPR1C unfused probe.

Probe adapter: 1KV CAT III.

4mm 90-degree plug.

Extended push-fit crocodile clip: 10A 1000V CAT II, 600V CAT III.



Lead Rating:



Kit comprises:

See the PDF data sheet: Three-Lead and Two-Lead Test Sets portable document format, CIH29890 lead set drawing portable document format and CIH29892 lead set drawing portable document format (these open in a new window).





Test Lead Sets



Please contact Cliff sales for more information.
