CliffCon® Touchproof Plug and Socket Connectors
CliffCon® S Audio 4 and 8 Pole Connectors
The Cliffcon® S range is designed for audio applications. Also available are 4 and 8 pole standard Cliffcon® designed for power applications.
Plug Specification
- Maximum Current: 20 A.
- Withstanding Voltage: ≥ 1400 V.
- Insulation Resistance: ≥ 1 GΩ.
- Contact Resistance: ≤ 3 mΩ.
- Solderability: ≤ 3 seconds.
- Insertion Force: 10 to 80 N.
- Minimum Life: ≥ 2000.
See the PDF data sheet: Cliffcon S Audio 4 and 8 Pole Connectors (opens in a new window).
-

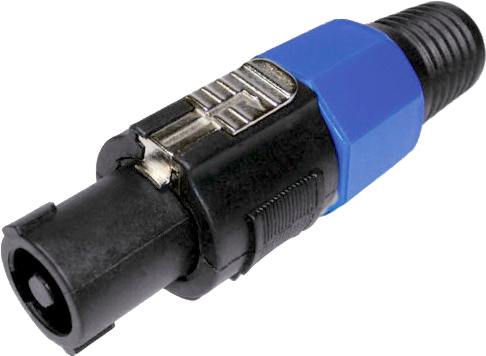

FM1245 4 pole plug with PVC cable grommet.
With a blue nut as standard, other colour color options are available to order.
Dimensions: 29 × 28 × 93 mm.
-

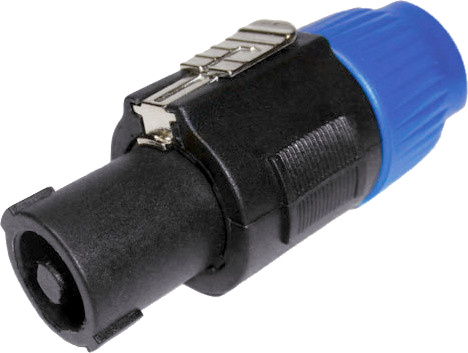

FM1250 4 pole plug without PVC cable grommet.
With a blue nut as standard, other colour color options are available to order.
Dimensions: 29 × 28 × 68 mm.
-

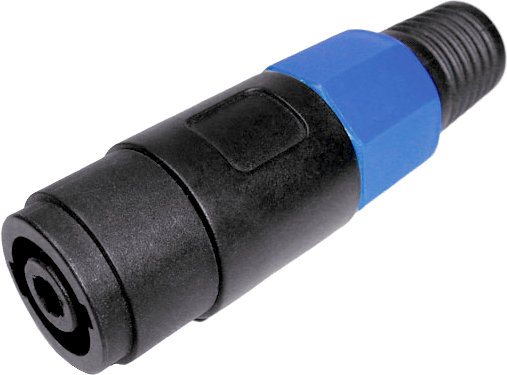

FM1255 4 pole cable socket with PVC cable grommet.
With a blue nut as standard, other colour color options are available to order.
Dimensions: 29 × 28 × 93 mm.
-

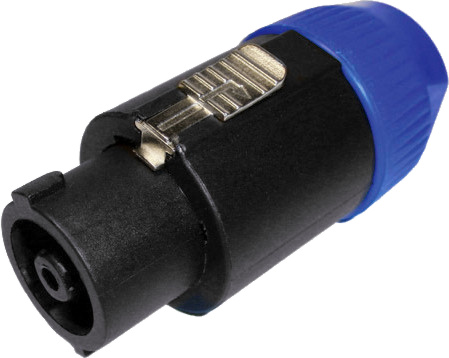

FM1260 8 pole cable socket without PVC cable grommet.
With a blue nut as standard, other colour color options are available to order.
Dimensions: 35 × 35 × 85 mm.
-

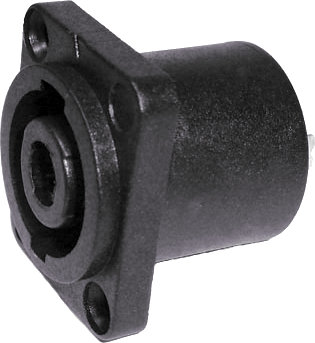

FM1270 4 pole chassis socket compatible with all CliffCon® S 4 pole plugs.
Dimensions: 24 × 24 × 33 mm.
With 3.5 mm diameter countersunk mounting holes.
FM1270X With 2.2 mm diameter plain mounting holes.
-

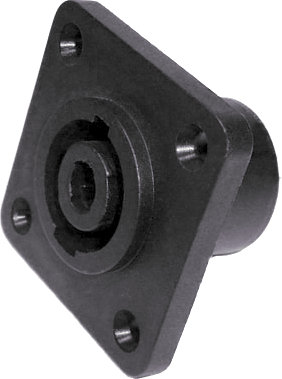

FM1275 4 pole chassis socket, (large square type), compatible with all CliffCon® S 4 pole plugs.
Dimensions: 40 × 40 × 33 mm.
-

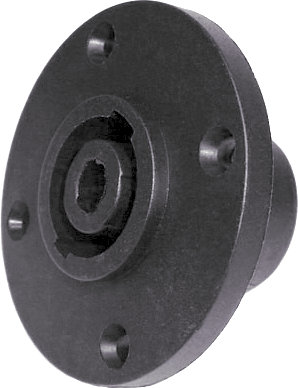

FM1280 4 pole chassis socket, (round type), compatible with all CliffCon® S 4 pole plugs.
Dimensions: 50 × 50 × 33 mm.
-

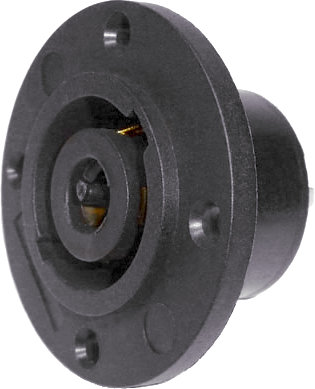

FM1285 8 pole chassis socket, (round type), compatible with CliffCon® S FM1260 8 pole plugs.
Dimensions: 51 × 51 × 34 mm.
CliffCon® Touchproof Plug and Socket Connectors - general information
Please contact Cliff™ sales for more information.
