Introduction

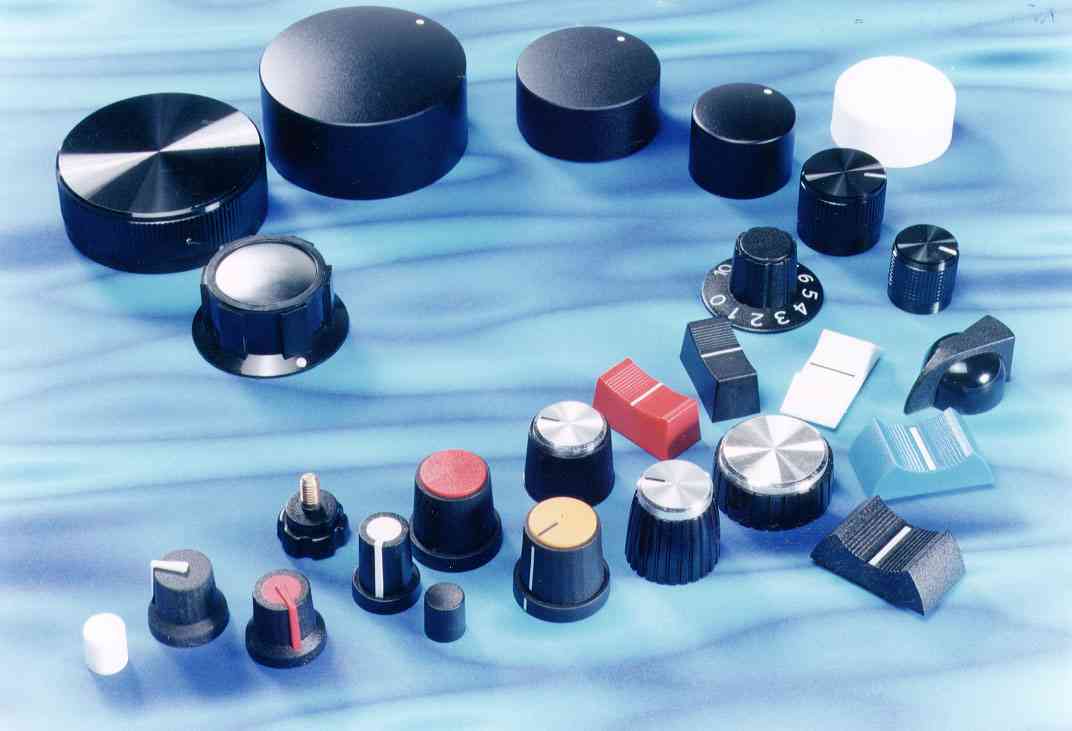

We produce a versatile range of knobs designed to enhance the appearance and functionality of any equipment to which they are fitted. Our control knobs are made to high standards of finish in order to satisfy our customers most exacting requirements.

All models are moulded molded in black nylon, ABS or PP. Some models can be supplied in white or grey colours.gray colors. Other custom made colourscolors can be produced, subject to a reasonable order quantity as setup charges may be required. Some models can accept optional diamond spun or coloured colored caps. Marker dots are standard on models as indicated. The standard dot or line position is opposite the set screw or 'D' flat.

Other variants are possible subject to agreement. Please refer to the shaft size table for details.

Collet fitting using our low cost plastic collet system is available for our K9 to K12 series.

Two colour, color, moulded molded models K85M, K87MA, K87MB are suitable for mixing consoles. They combine good looks and ultimate low cost. Some models are available with a rubber soft-touch finish.

Applications requiring similar style knobs of various sizes are well catered for in our range of models.

When ordering, please specify quantity, model, colour, color, fixing, lines or dots and shaft size. If in doubt, please refer to our sales office. For example : K6C / black / SF / Marker dot / ¼" or K9 / black / marker line / 6mm splined shaft.

For further technical specifications please see the PDF data sheet Control knobs for rotary and slider potentiometers (opens in a new window). All dimensions are approximate and in millimetres.

Rotary Control Knobs

For dimensions and technical drawings please see the PDF data sheet Rotary knob dimensions and technical drawings (opens in a new window)

Jump down to K1C, K3, K4C, K5, K6C, K6C/SKT, K7C, K85, K85M, K86R, K86AR, K87MA, K87MB, K88, K9, K10, K11, K12, K13, K14, K15, K16, K17, K18, C18, C18/SKT, KM12B, KM20B, KMR12, KMK10, KMK25, KMK10E, Shaft Sizes and ColoursColors.

• K1C Practical low cost knob, often used in outdoors equipment. Chrome, satin or coloured colored discs available. Marker dot on the skirt as standard.
  Packed 200 per bag.
  25.4mm base diameter (skirt), 15.1mm height, 12mm shaft depth.



• K3 Pointer knob with a matt textured finish. A marker line version is available.
  Packed 500 per bag.
  27mm length, 12.7 height, 11.4mm shaft depth.



• K4C Pointer knob with a matt textured finish. A marker line version is available.
  Packed 500 per bag.
  19mm base diameter (circular part), 31.7mm length, 13.7mm height, 11.4mm shaft depth.
  K4C (FC1658)



• K5 Marker line on top is optional.
  Packed 100 per box.
  19.5mm base diameter, 19.2mm height, 16mm shaft depth.



• K6C Screw fix only. Dot on top is optional.
  Packed 200 per box.
  25.4mm base diameter, 12mm height. 12mm shaft depth.



• K6C/SKT Standard skirts are plain, 0-5-0 or 0-10.
  Packed 200 per carton.
  41mm base diameter (skirt), 14mm height, 10mm shaft depth.



• K7C Marker line on top is optional. Coloured Colored plastic top available, (mininum 1000).
  19.1mm base diameter, 16mm height, 14mm shaft depth.



• K8 Marker dot on skirt is standard. Coloured Colored plastic top available, (mininum 1000).
  25.1mm base diameter, 16.7mm height, 12mm shaft depth.



• K85 Available for push fitting only. Eight colours colors of cap available. Caps push into the top of the knob, and can locate in any position. Skirt, cap or both may have a marker line. Transparent model for encoder also available. Supplied unassembled. Not available in a rubber finish.
  Knobs packed 250 knobs per bag. Caps packed 100 or 1000 per bag.
  14mm base diameter (skirt), 18mm height, 11.5mm shaft depth.



• K85M and K85MS
  K85M is available for push fit only. Two colour, color, moulded. molded. Body and line / cap can be eight contrasting colours. colors. Suitable for applications where quantities used demand very low cost. Not available with a rubber finish.
  14mm base diameter (skirt), 17.8mm height 12.5mm shaft depth.
  K85MS is under development. Similar to K85M, but without a skirt. A rubber finish is available.
  Packed 250 or 1000 per bag.



• K86R Two colour, color, moulded. molded. Six standard colours. colors. Soft touch finish.
  16mm base diameter (skirt), 15.1mm height, 12mm shaft depth.



• K86AR Two colour, color, moulded. molded. Six standard colours. colors. Soft touch finish.
  11.5mm base diameter, 14.8mm height, 10mm shaft depth.



• K87MA and K87MAR Standard top / line colours: colors: black, white, grey, gray, blue, green, red, orange, yellow. These are two colour, color, moulded. molded. We have eight standard colours colors and make custom versions subject to acceptable quantities. Knobs are low cost due to volume production. The (not removeable) coloured colored top helps identify colour color coded grouped functions in equipment with many knobs.
  Packed 250 or 1000 per bag.
  16.8mm base diameter (skirt), 14.5mm height, 12.8mm shaft depth, (11.8mm for 6mm splined shaft).
  K87MA is a hard finish version available for push fitting only.
  K87MAR has a soft-touch, rubber finish.



• K87MB and K87MBR Standard line colours: colors: black, white, grey, gray, blue, green, red, orange, yellow. These knobs are similar to K87MA and K87MAR but without a coloured colored top. They can be used where a more subtle colour color coding is required. Push fitting only.
  Packed 250 or 1000 per bag.
  16.8mm base diameter (skirt), 14.5mm height, 12.8mm shaft depth, (11.8mm for 6mm splined shaft).
  K87MB has a hard finish.
  K87MBR has a soft-touch, rubber finish.



• K88 Available in a variety of different colours colors with a choice of caps. Shaft fittings are splined, (¼" or 6mm), or D, (¼", 4mm or 6mm).
  Please add a colour color suffix to the end of the part number: 1=opaque, 2=black, 3=white, 4=grey, =gray, 5=green, 6=yellow, 7=red, 8=blue, 9=brown.
  12mm base diameter, 18mm height, 11.5mm shaft depth.
  CL17881 6mm spline shaft
  CL17882 ¼" D shaft
  CL17883 ¼" spline shaft
  CL17884 4mm D shaft
  CL17886 6mm D shaft

  Caps are sold separately, with or without a marker line, in black, white, red, grey, gray, yellow, blue or green.
  CL177901A Black cap with white marker line
  CL177902A Black cap without marker line
  CL177903A White cap with black marker line
  CL177904A White cap without marker line
  CL177905A Red cap with white marker line
  CL177906A Red cap without marker line
  CL177909A Grey Gray cap with white marker line
  CL177910A Grey Gray cap without marker line
  CL177911A Yellow cap with black marker line
  CL177912A Yellow cap without marker line
  CL177913A Blue cap with white marker line
  CL177914A Blue cap without marker line
  CL177915A Green cap with white marker line
  CL177916A Green cap without marker line
  For further technical specifications please see the PDF data sheet K88 rotary knobs (opens in a new window)



• K9 This model has a separate push in cap which comes in eight colours. colors. The knob and cap can be plain or with a line.
  Knobs packed 250 per bag. Caps packed 100 or 1000 per bag.
  19.2mm base diameter (skirt), 19mm height, 13.8mm shaft depth.



• K10 This model has a separate push in cap which comes in eight colours. colors. The knob and cap can be plain or with a line.
  Knobs packed 250 per bag. Caps packed 100 or 1000 per bag.
  17mm base diameter, 18.5mm height, 13mm shaft depth.



• K11 This model has a separate push in cap which comes in eight colours. colors. The knob and cap can be plain or with a line.
  Knobs packed 200 per bag. Caps packed 100 or 1000 per bag.
  19.5mm base diameter, 19mm height, 13.3mm shaft depth, 7.2mm collet type.



• K12 This model has a separate push in cap which comes in eight colours. colors. The knob and cap can be plain or with a line. K6C skirts can be glued on.
  Knobs packed 200 per bag. Caps packed 100 or 1000 per bag.
  25.3mm base diameter, 19.2mm height, 13.3mm shaft depth, 7.2mm collet type.



• K13 Engineering Knobs This range of knobs incorporate metal threads or threaded studs. The smallest versions with M4 studs have moulded-in, molded-in, brass studs. Larger versions are made using ISO M4, M5, M6 or M8 steel nuts and bolts as the threaded element. Knobs can be supplied unassembled if required. Custom versions are easily made. Due to the large number of possible variations, these knobs are made to order only. Standard colours are grey, black or red.



• K14, K15 and K16 Aluminium Aluminum clad plastic knobs with a diamond turned finish. The finish is protected from tarnishing and corrosion by a special treatment. Standard finish is bright aluminium. aluminum. The marker line is optional.
  K14 - 15mm diameter, 12.5mm height, 10mm shaft depth. Packed 250 per carton.
  K15 - 20mm diameter, 13.0mm height, 12mm shaft depth. Packed 250 per carton.
  K16 - 30mm diameter, 13.0mm height, 12mm shaft depth. Packed 100 per carton.



• K15P and K16P Plastic versions of K15 and K16. Both have a matt textured top.
  K15P - 18.8mm diameter, 11.2mm height, 10mm shaft depth. Packed 250 per carton.
  K16P - 29.0mm diameter, 12.7mm height, 10mm shaft depth. Packed 100 per carton.



• K17 Initially designed for electronic cosmetic equipment. The knob has a fine, serrated edge, a matt, non- reflective finish and a prominent marker line.
  Packed 250 per bag.
  29mm diameter, 12.9mm height, 10mm shaft depth.



• K18 This versatile knob is designed for use on encoders. Available as light weight, medium weight 35g, and heavy weight 50g. There are push fix and screw fix versions. The top surface has dual finger locations for fast or slow spin. The three different weights give three kinds of inertia when spinning the encoder. The heavier weight versions give the feel of the more expensive solid metal knobs, whilst our internal construction options allow for various shaft fittings.
  39.6mm diameter, 13.5mm height, 13.5mm shaft depth.
  CL71670 - Light weight 6mm splined
  CL71671 - Light weight 6mm screw fix
  CL71660 - Medium weight 35g, 6mm splined
  CL71661 - Medium weight 35g, 6mm screw fix
  CL71650 - Heavy weight 50g, 6mm splined
  CL71651 - Heavy weight 50g, 6mm screw fix
  Please add a colour color suffix to the end of the part number: B=black, A=grey, A=gray, L=blue, R=red, W=white
  For further technical specifications please see the PDF data sheet K18 rotary knobs (opens in a new window)



• C18 A low cost nylon knob produced in an all-black or coloured colored cap version. Caps are supplied pre-fitted and cannot be removed. The marker line has four possible locations. Available in push fix only. Cap colours colors are black, white, grey, gray, green, blue, yellow or red.
  Packed 500 or 1000 per bag.
  19.3mm base diameter (skirt), 16.3mm height, 15mm shaft depth.



• C18/SKT This model has a knob and skirt in one piece. The skirt can have a marker line or printed numbers 0-10. Available in push fix only. Coloured Colored caps are not available.
  Packed 250 or 500 per bag.
  27.8mm base diameter (skirt), 15mm height, 13mm shaft depth.



• KM12B and KM15B Knurled aluminium aluminum shell on plastic inner. Standard finish is black anodised anodized to a very high standard. This can have a printed marker dot or diamond cut marker line. Custom versions are possible subject to quantity.
  Packed in moulded molded trays.
  KM12B 12mm diameter, 12mm height, 10mm shaft depth.
  KM15B 15mm diameter, 15mm height, 14mm shaft depth.



• KM20B to KM50B Knurled aluminium aluminum shell on plastic inner. A high quality, black anodised anodized finish is is relieved by bright diamond cut features with a knurled finish on the edge. This can have a printed marker dot or diamond cut marker line. Custom versions, (coloured, colored, for example), are possible subject to quantity. Standard models are for 18T 6mm splined shaft. Push fit only. Various sizes from 20mm to 50mm in diameter.
  Packed in moulded molded trays.
  KM20B - 20mm diameter, 17mm height, 15mm shaft depth.
  KM40B - 40mm diameter, 17mm height, 15mm shaft depth.
  KM50B - 50mm diameter, 17mm height, 15mm shaft depth.



• KMR12 to KMR50 Matt black, aluminium aluminum clad, plastic knob with a domed top. Marker dot or line. Smooth powder coated finish. Standard colours black or silver. Other colours are subject to viable quantities. Various sizes from 12mm to 50mm diameter. Push fix only. For 18T 6mm splined shaft.
  Supplied in plastic molded trays.
  KMR12 - 12mm diameter, 13mm height, 11mm shaft depth.
  KMR15 - 15mm diameter, 16mm height, 14mm shaft depth.
  KMR20 - 22mm diameter, 21mm height, 19mm shaft depth.
  KMR25 - 25mm diameter, 18mm height, 16mm shaft depth.
  KMR30 - 30mm diameter, 16mm height, 14mm shaft depth.
  KMR35 - 35mm diameter, 19mm height, 17mm shaft depth.
  KMR40D - 39mm diameter, 19mm height, 17mm shaft depth. ¼" D shaft is standard with a finger dimple.
  KMR40 - 40mm diameter, 19mm height, 17mm shaft depth.
  KMR50 - 50mm diameter, 31mm height, 29mm shaft depth.



• KMK10 Knobs for professional equipment comprising of a machined aluminium aluminum shell on a moulded plastic inner. Push on fixing. Other anodised anodized colours colors available.
  10mm base diameter, 15mm height, 11mm shaft depth.
  FC7248 Anodised Anodized Silver, 6mm splined shaft.
  FC7249 Anodised Anodized Black, 6mm USA ‘D’ shaft.
  FC7250 Anodised Anodized Silver, 6mm splined shaft.
  FC7251 Anodised Anodized Black, 6mm USA ‘D’ shaft.



• KMK25 Knobs for professional equipment comprising of a machined aluminium aluminum shell on a moulded plastic inner. Push on fixing. Other anodised anodized colours colors available.
  25mm base diameter, 15mm height, 11mm shaft depth.
  FC7252 Anodised Anodized Silver, 6mm splined shaft.
  FC7253 Anodised Anodized Black, 6mm splined shaft.
  FC7254 Anodised Anodized Silver, 6mm USA ‘D’ shaft.
  FC7255 Anodised Anodized Black, 6mm USA ‘D’ shaft.



• KMK10E Knobs for professional equipment comprising of a machined aluminium aluminum shell on a moulded plastic inner. Push on fixing. Other anodised anodized colours colors available.
  10.7mm base diameter, 19mm height, 11mm shaft depth.
  FC7256 Anodised Anodized Silver, 6mm splined shaft.
  FC7257 Anodised Anodized Black, 6mm splined shaft.
  FC7258 Anodised Anodized Silver, 6mm USA ‘D’ shaft.
  FC7259 Anodised Anodized Black, 6mm USA ‘D’ shaft.



  For technical specifications please see the PDF data sheet KMK knurled aluminium aluminum shell rotary knobs (opens in a new window)



Slider Control Knobs - CS Series

All knobs have a matt, non-reflective finish to match our K9 to K12 series and the C18. The standard colour color is black.

Jump down to CS1, CS2, CS7, CS8, CS9, CS10, CS11, CS12, shaft details.

• CS1 Length 23mm. Width 11mm. Height 11mm.
  CS1 for 6/8mm shaft.
  CS1A for 4mm shaft.
  CS1B for 4mm shaft.



• CS2 Length 20mm. Width 14mm. Height 13mm.
  CS2 for 6/8mm shaft.
  CS2A for 4mm shaft.
  CS2B for 4mm shaft.



• CS3 Length 29mm. Width 13mm. Height 7mm. 6/8mm shaft.



• CS7 Length 12mm. Width 9mm. Height 9mm.
  CS7A (non-black) for 4mm shaft.
  CS7C (black) for 4mm shaft.



• CS8 Length 17mm. Width 10mm. Height 8mm. 6/8mm shaft.



• CS9 Length 27mm. Width 16mm. Height 7mm.
  CS9 for 6/8mm shaft.
  CS9A for 4mm shaft.



• CS10 Length 27mm. Width 13mm. Height 8mm. 6/8mm shaft.



• CS10R Soft touch version. Available in black / white. Length 26mm. Width 10.8mm. Height 10mm. 4mm shaft.



• CS11 Diameter 8mm. Height 8mm. Designed to fit a square shaft of push-button switches and 4mm or 6mm slider shafts.



• CS12 Length 12mm. Width 12mm. Height 10mm. Designed to fit a 3.3mm shaft of push-button switches.



Typical Shaft Details

Custom Control Knobs

Where our standard designs do not suit your requirements we can produce knobs to your own designs. Sometimes we are able to modify existing tooling and avoid the need to make new full moulds. molds.

Our two colour color moulds molds can be adapted for custom designs without the need to make a full mould, within certain size constraints. Custom designs can be achieved at moderate tooling cost; usually about 50% of the cost of a full mould. mold. An eight-impression, complete, two colour color knob mould mold will cost at least £20,000. By incorporating new designs into the existing moulds, molds, the tooling cost can be reduced to between £7,000 and £10,000. Tooling of new models can be amortized quickly or may justify making new designs for smaller production runs. Actual tooling costs will depend on the complexity of the parts.

We have a number of semi custom parts which are available for use by our customers. Generally, full custom models are only available to the original user. Semi custom parts are usually produced by incorporating one or more mould mold cavities into the moulds molds used for standard products. Tooling costs for semi custom parts can be quite low; £50 to £350 for a custom shaft fitting; £750 to £3000 for a new cavity design. Actual costs will depend on the mould mold being adapted.

Injection moulding molding of two or more different kinds of plastic can give elegant solutions to many engineering design problems. In particular, the combination of hard plastic with rubber-like materials is used more often nowadays. Also the combination of opaque and clear materials is frequently used.

Knobs and buttons can be produced in almost any colour, color, from ABS, nylon, Polypropylene, Acetal etc. They can be made to fit any size of shaft. New models are produced using our ISO9001/2 approved design and production facility.

Initial information needed for a custom design is as follows: design and dimensions, material, colour, color, annual quantity, delivery date required. Please feel free to discuss these items with our sales department.

Potentiometers

We have an extensive range of rotary and slide potentiometers, with both plastic and metal shafts. These are drop-in compatible with other manufacturers products such as Alps, Nobel and Alpha. Data sheets open in a pop-up window.

Potentiometers Introduction

Rotary Potentiometers - PCB mounting

• 16K single unit series
• 16T dual unit series
• R-09 K single unit series
• R-11K, R-14T single and dual series
• R-11K, R-11T and R-14T single and dual series
• R-11K, R-14T single and dual series shaft styles
• R-121K single unit series
• R-121K single unit series specifications
• R-161K, R-161T single and dual series
• R-162, R163T and R-164T dual series
• R-161, 162, 163, 164 K series shaft dimensions and specifications
• R-161, 162, 163, 164 K series shaft dimensions

Slide Potentiometers - PCB mounting

• Standard series slide potentiometers
• Normal series slide potentiometers
• Low Profile master slide potentiometers

We have a catalogue catalog and samples available.
