TOSLINK™ Optical Audio Data Cables

TOSLINK connectors

TOSLINK, (Toshiba Link), is a standard, optical fibre, fiber, digital, audio interface. It is widely used in consumer audio equipment like DVD players, CD players, television set-top boxes, games consoles, computers and audio-visual receivers.



Using a light transmitter, the optical cord works as a carrier to deliver digital audio signals, (left and right channel or multichannel).



Lead terminals conform to the EIAJ/JEITA rectangular standard CP-1201 and also RC-5720 and JIS C5974-1993 F05 standards for digital audio interfaces including fibre-optical fiber-optical interconnections.



For technical specifications please see the PDF data sheet TOSLINK Optical Audio Data Cables portable document format (opens in a new window).



Please also see our optical transmitter and receiver jacks.







TOSLINK to TOSLINK lead sets

TOSLINK JIS F05 (JEITA RC-5720C, CP-1201) rectangular optical connector plugs.

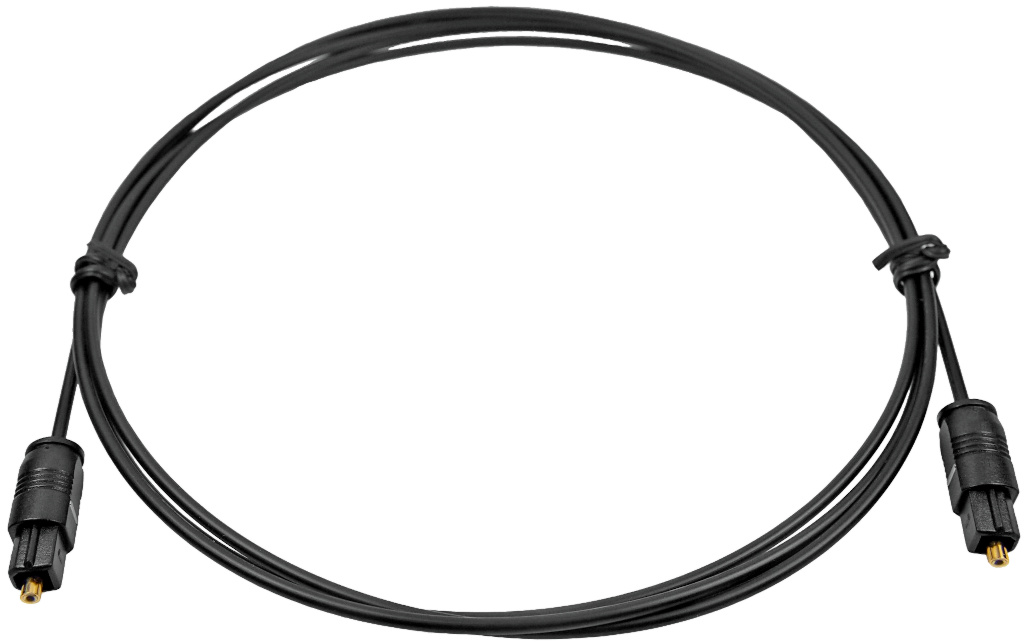

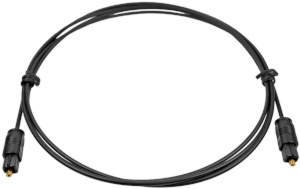

FM65115 TOSLINK to TOSLINK 1.5m cable with gold tips



Our TOSLINK cables use a plastic optical fibre fiber (POF) audio jumper.

The core is PMMA with a common standard diameter of 1.0 mm.

The numerical aperture (NA) is 0.5.

The jacket is flame-retardant PVC with an outside diameter of 2.2 mm, 4.0 mm, 5.0 mm or 6.0 mm.

Total cable length is usually less than 10 metres. meters.



Features

  1. Low insertion loss.
  2. High speed transmission of data.
  3. Immunity from electromagnetic interference.


Applications

  1. Media audio device.
  2. Data player, DVD, CD player.
  3. Data / LCD TV.
  4. PC laptop.
  5. Sound card.

Specification

  1. Insertion loss: ≤ 2.0 dB.
  2. Numerical aperture (NA): 0.5.
  3. Core diameter: 1 mm.
  4. Cladding diameter: 2.2 mm to 8.0 mm.
  5. Core material: PMMA.





TOSLINK to Mini-TOSLINK lead sets

TOSLINK JIS F05 (JEITA RC-5720C, CP-1201) rectangular optical connector plug to mini-TOSLINK 3.5 mm optical jack plug.

FM65220 TOSLINK to mini-TOSLINK 2m cable



Used for connection of audio components which are equipped with TOSLINK digital optical input / output jacks.

Supplied with gold terminal tips.



Specification

  1. Core diameter: 1 mm.
  2. Cladding diameter: 2.2 mm.
  3. Core material: PMMA.
  4. Application lightwave: 650 nm.
  5. Attenuation: ≤ 0.18 dB/m.
  6. Bend radius: 5 × core diameter.
  7. Connection loss: ≤ 0.5 dB.
  8. Operating temperature: −15 to +80 °C.






TOSLINK to Mini-TOSLINK adapter

TOSLINK JIS F05 (JEITA RC-5720C, CP-1201) rectangular optical connector plug to mini-TOSLINK 3.5 mm optical jack plug.

FM65010 3.5 mm optical jack adapter



FM65010 3.5 mm optical jack adapter.





TOSLINK is a registered trademark of Toshiba Corporation.





Please contact Cliff sales for more information.
