Test Lead Sets

RCD and Loop Mains Plug Test Lead Sets

Cliff test leads are semi custom made to order. We can combine any of our components to produce leads to suit most applications. Our lead sets are usually supplied packed in a plastic wallet. All 4mm plugs are shrouded and touchproof. All components conform to IEC 61010.



We have three kinds of standard, double-insulated cable, rated 1KV (PVC), 5KV and 12KV (silicone). Available in black, red, green, blue, brown and yellow.

See the PDF data sheet: Mains Plug Test Lead Sets portable document format (opens in a new window).





CIH29930 UK Mains Plug Lead Set (plain)



CIH29930 Mains Plug Lead Set: UK plug to 3 x 4mm plugs.



1.4m cable.

Blue / Green / Brown , (all black cables).

UK mains plug (BS1363A) with 10A fuse.

4mm straight plug.



Lead Rating:



Plug Wiring:

See the PDF data sheet: Mains Plug Test Lead Sets portable document format and CIH29930 lead set drawing portable document format (these open in a new window).



CIH29940 UK Mains Plug Lead Set (plain)



CIH29940 Mains Plug Lead Set: UK plug to 3 x 4mm plugs with black flying leads. Packed in a plastic wallet. 1.4m cable.

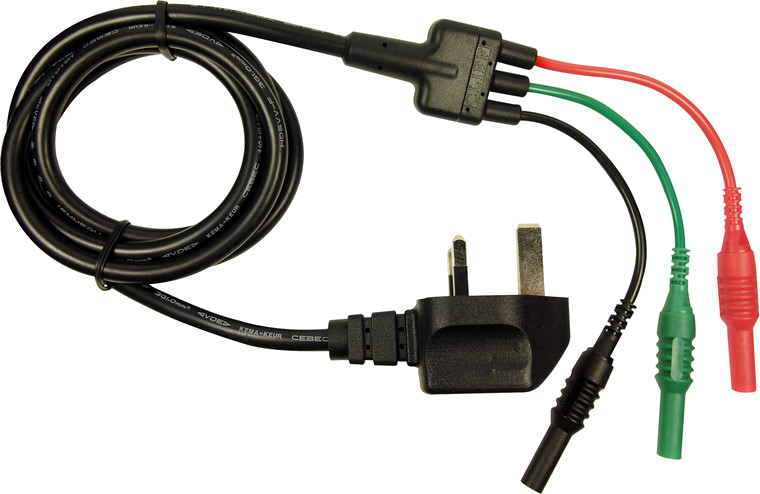

FCR29940 Mains Plug Lead Set: UK plug to 3 x 4mm plugs with coloured colored flying leads. Packed in a poly bag. 1.5m cable.



Black / Green / Red .

UK mains plug (BS1363A) with 10A fuse.

4mm straight plug.



Lead Rating:



Plug Wiring:

See the PDF data sheet: Mains Plug Test Lead Sets portable document format and CIH29940 lead set drawing portable document format (these open in a new window).



CIH29920 IEC Mains Plug Lead Set (plain)



CIH29920 Mains Plug Lead Set: IEC plug to 3 x 4mm plugs.



1.5m cable.

Blue / Green / Brown , (all black cables).

IEC mains plug.

4mm straight plug.



Lead Rating:



Plug Wiring:

See the PDF data sheet: Mains Plug Test Lead Sets portable document format and CIH29920 lead set drawing portable document format (these open in a new window).



CIH29922 IEC Mains Plug Lead Set (unfused)



CIH29922 Mains Plug Lead Set: IEC plug to 3 x 4mm plugs including unfused push-fit probes and push-fit crocodile clips.



1.5m cable.

Blue / Green / Brown , (all black cables).

IEC mains plug.

4mm straight plug.

TPR7 unfused push-fit probe: 10A.

Push-fit crocodile clip: 10A 1000V CAT II, 600V CAT III.



Lead Rating:



Plug Wiring:



Kit comprises:

See the PDF data sheet: Mains Plug Test Lead Sets portable document format and CIH29922 lead set drawing portable document format (these open in a new window).



CIH29925 IEC Mains Plug Lead Set (fused)



CIH29925 Mains Plug Lead Set: IEC plug to 3 x 4mm plugs including fused probes and screw-fit crocodile clips.



1.5m cable.

Blue / Green / Brown , (all black cables).

IEC mains plug.

4mm straight plug.

1kV CAT III probe, 600V CAT III clip.

Fused: 10A F, 600V HBC 50kA.

Screw-fit fused crocodile clip: 10A 1000V CAT II, 600V CAT III.



Lead Rating:



Plug Wiring:



Kit comprises:

See the PDF data sheet: Mains Plug Test Lead Sets portable document format and CIH29925 lead set drawing portable document format (these open in a new window).



CIH29921 Hot Condition IEC Mains Plug Lead Set (plain)



CIH29921 Mains Plug Lead Set: Hot Condition IEC plug to 3 x 4mm plugs.



Rubber cable with 0.925m long fly leads and a total length of 1.575m.

Blue / Green / Brown , (all black cables).

Hot Condition IEC mains plug.

4mm straight plug.



Lead Rating:



Plug Wiring:

See the PDF data sheet: Mains Plug Test Lead Sets portable document format and CIH29921 lead set drawing portable document format (these open in a new window).



CIH29923 Hot Condition IEC Mains Plug Lead Set (unfused)



CIH29923 Mains Plug Lead Set: Hot Condition IEC plug to 3 x 4mm plugs including unfused probes and push-fit crocodile clips.



Rubber cable with 0.925m long fly leads and a total length of 1.575m.

Blue / Green / Brown , (all black cables).

Hot Condition IEC mains plug.

4mm straight plug.

TPR7 unfused probe: 10A.

Push-fit crocodile clip: 10A 1000V CAT II, 600V CAT III.



Lead Rating:



Plug Wiring:



Kit comprises:

See the PDF data sheet: Mains Plug Test Lead Sets portable document format and CIH29923 lead set drawing portable document format (these open in a new window).



CIH29950 Schuko Mains Plug Lead Set (plain)



CIH29950 Mains Plug Lead Set: Schuko straight plug to 3 x 4mm plugs.



1.5m cable.

Blue / Green / Brown , (all black cables).

Schuko straight mains plug.

4mm straight plug.



Lead Rating:

See the PDF data sheet: Mains Plug Test Lead Sets portable document format and CIH29950 lead set drawing portable document format (these open in a new window).



CIH29880 Three unfused probes and crocodile clips. Blue, Green, Brown.



CIH29880 Set of three unfused probes and crocodile clips.



Blue / Green / Brown .



Other colour color combinations available, subject to viable quantity.



CIH29881 Three unfused probes and crocodile clips. Black, Red, Green.



CIH29881 Set of three unfused probes and crocodile clips.



Red / Black / Green .



Other colour color combinations available, subject to viable quantity.



CIH29885 Three fused probes and crocodile clips. Blue, Green, Brown.



CIH29885 Set of three fused probes and crocodile clips.



Blue / Green / Brown .



Other colour color combinations available, subject to viable quantity.



CIH29886 Three fused probes and crocodile clips. Black, Red, Green.



CIH29886 Set of three fused probes and crocodile clips.



Red / Black / Green .



Other colour color combinations available, subject to viable quantity.





Test Lead Sets



Please contact Cliff sales for more information.
