Single Switches

For dimensions and technical drawings please see the PDF data sheet Single Switches (opens in a new window)

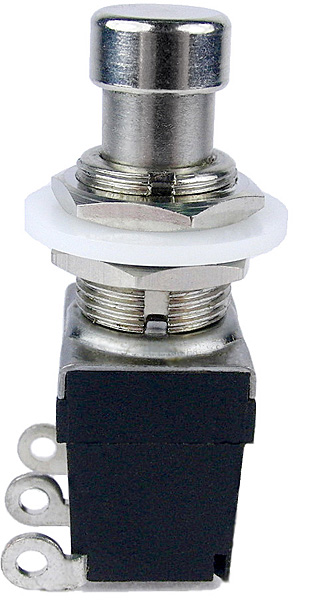

• 4066 Series Single Pole Switch Rated 1A 250V AC.
  FC71025 SPDT on/off. Solder tags.
  FC71035 SPDT on/off. PC tags.

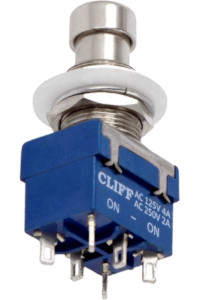

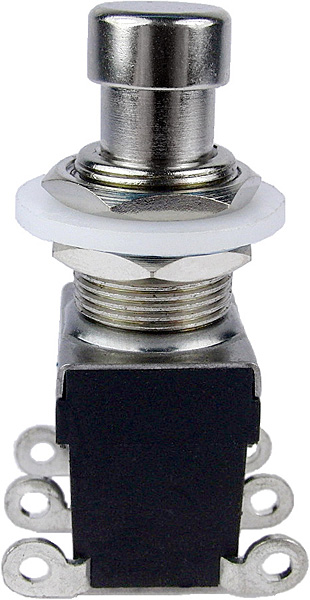

• 4066 Series Double Pole Switch Rated 1A 250V AC.

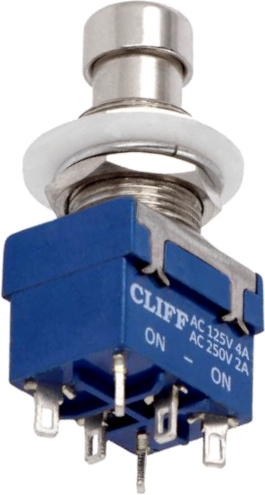

  FC7105 DPDT momentary. Solder tags.
  FC71055 DPDT on/off. Solder tags.

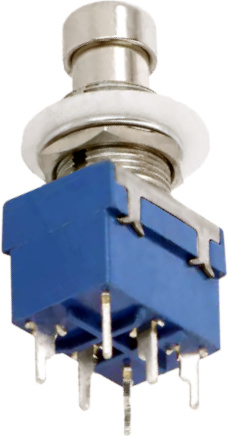

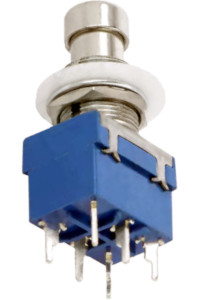

  FC7106 DPDT momentary. PC tags.
  FC71065 DPDT on/off. PC tags.

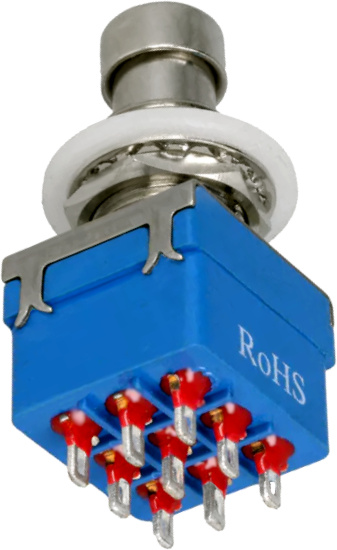

• Three Pole Switch with solder tags Rated 2A 250V AC, 4A 125V AC.
  Contact Resistance: 20mΩ maximum.
  Insulation Resistance: 500V DC 100MΩ minimum.
  Dielectric Strength: 1500V AC 1 minute.
  Operating Temperature: -20°C to +65°C.
  Electrical Life: 20000 make/break cycles at full load.
  FC71101 3PDT solder tags.

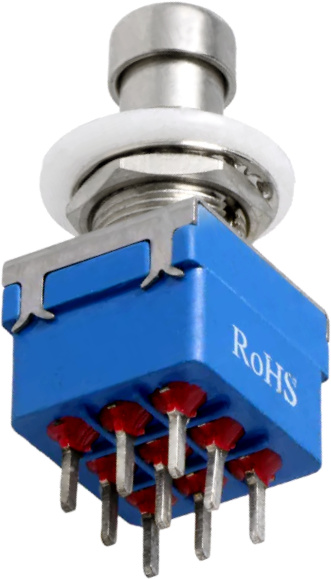

• Three Pole Switch with PCB tags Rated 2A 250V AC, 4A 125V AC.
  Contact Resistance: 20mΩ maximum.
  Insulation Resistance: 500V DC 100MΩ minimum.
  Dielectric Strength: 1500V AC 1 minute.
  Operating Temperature: -20°C to +65°C.
  Electrical Life: 20000 make/break cycles at full load.
  FC71102 3PDT PCB tags.



Keypads

• Membrane-type custom models produced to your drawings and artwork
• Moulded Molded rubber keypads
• Low cost tooling
• Silicone and other types of rubber
• Numerous options of style, features and design - multi colour, color, tactile, hard tops and illuminated

Speak to us at the design stage for cost effective keypads.
