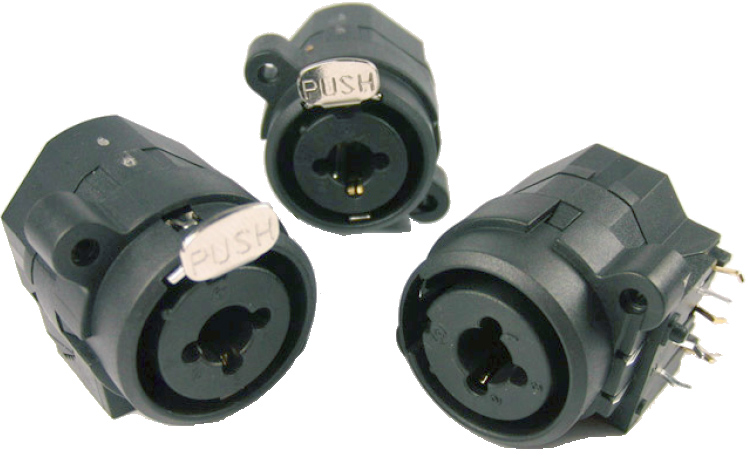

Combi-Jack - Combined jack and XLR in one body
The hybrid audio jack and XLR3 socket offers space saving opportunities in designs where jacks and XLRs may be not used simultaneously or where inadequate space is available to use separate components.
Also see our jack sockets, jack plugs, optical jacks, XLR audio, phono, and DIN connectors.
Features
- Panel mounting by self tap screws.
- Optional push latch for all models.
- Optional grounding switch on XLR.
- Optional mono unswitched jack.
- Optional stereo unswitched jack.
- Optional stereo switched jack.
- Optional horizontal PCB mounting.
- Optional vertical PCB mounting.
- Optional solder tag wiring.
- UL94 approved materials.
XLR Specification
- Insertion force : 0.3 - 4.0 kgf.
- Initial contact resistance: Maximum 30mΩ.
Jack Socket Specification
- ¼″ (6.35 mm) Tip, Ring, Sleeve (TRS).
- Insertion force : 0.3 - 3.0 kgf.
- Initial contact resistance: Maximum 30mΩ.
Variants

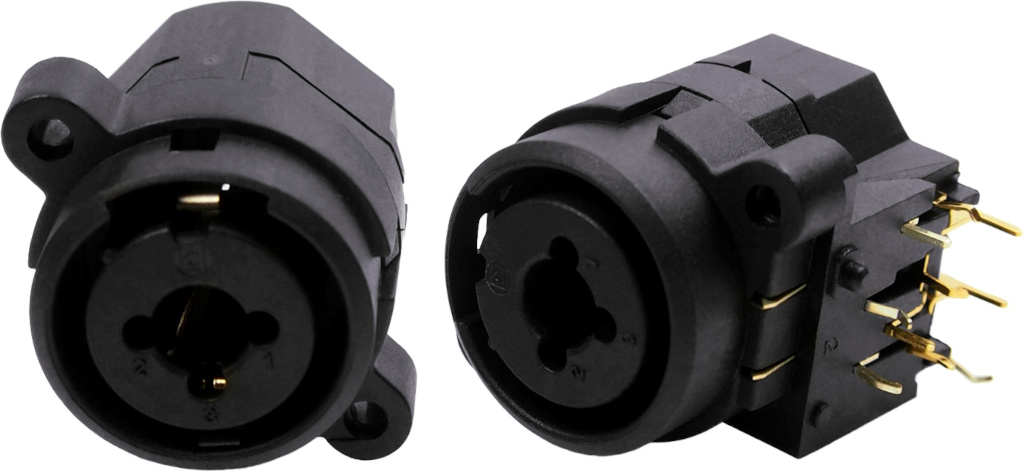

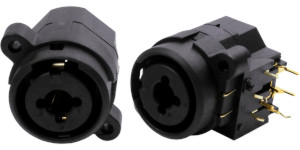

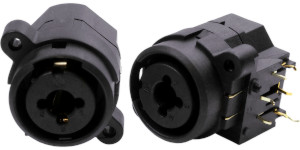

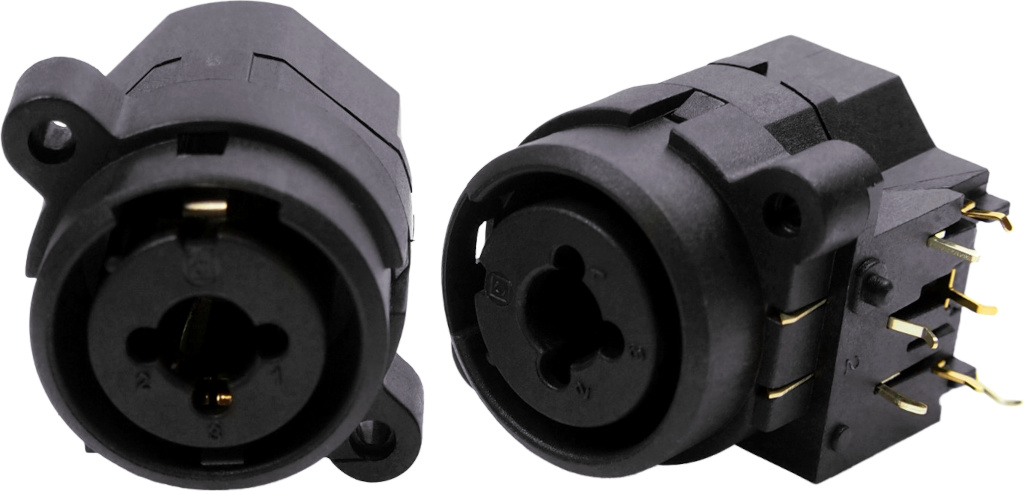

90 ° PCB without XLR ground screen: FC2410 (stereo jack unscreened) and FC2420 (stereo jack screened).

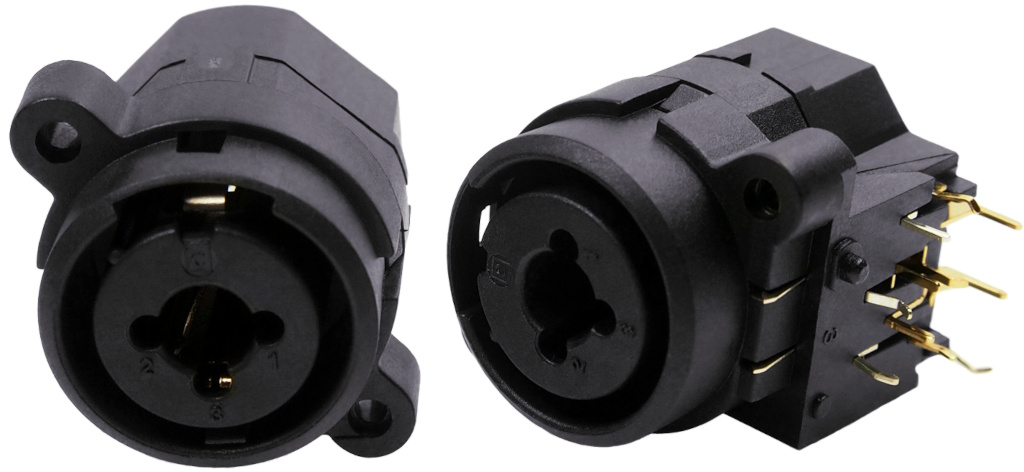

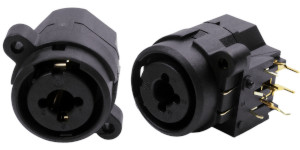

90 ° PCB with XLR ground screen: FC2430 (stereo jack screened).

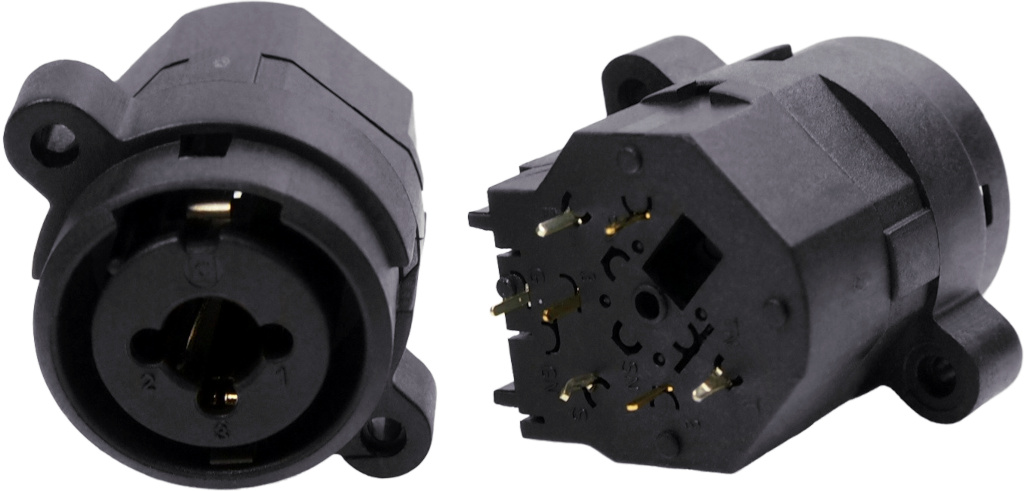

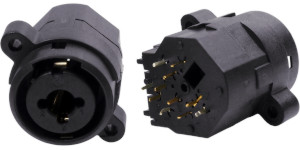

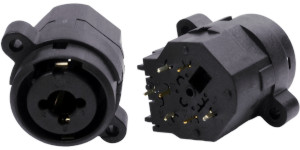

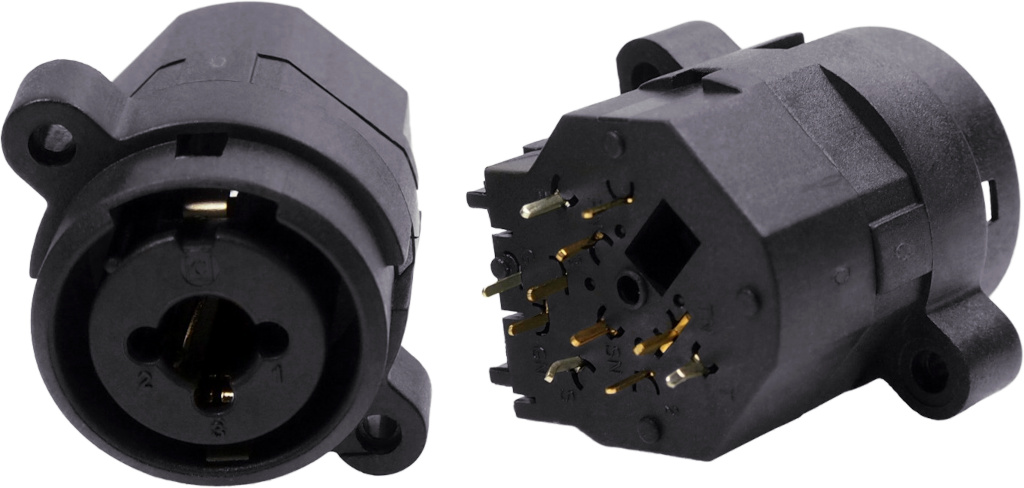

Vertical PCB without XLR ground screen: FC2440 (stereo jack unscreened) and FC2450 (stereo jack screened).

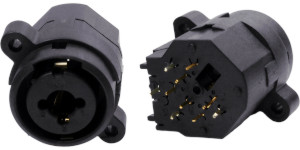

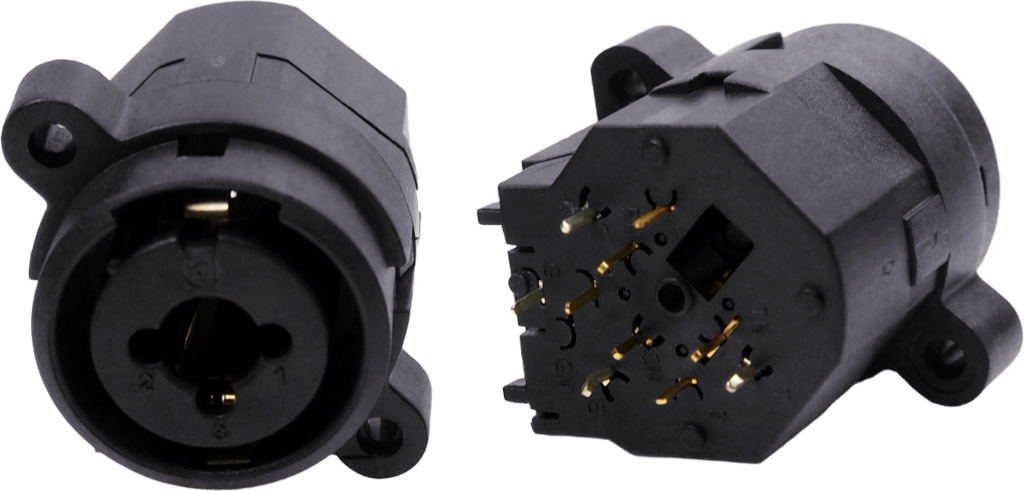

Vertical PCB with XLR ground screen: FC2460 (stereo jack screened).

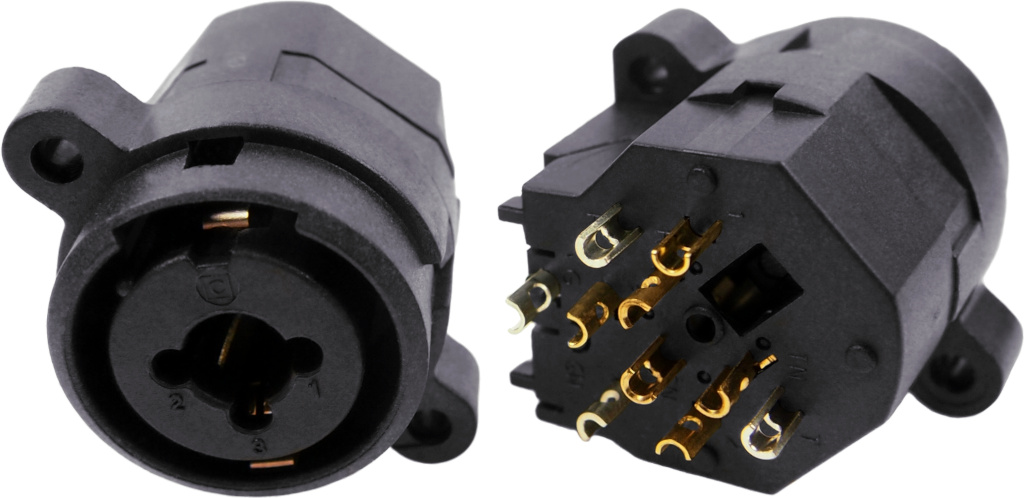

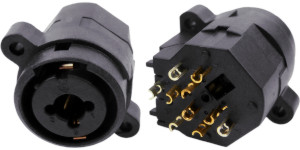

Solder tags without XLR ground screen: FC2480 (stereo jack screened).

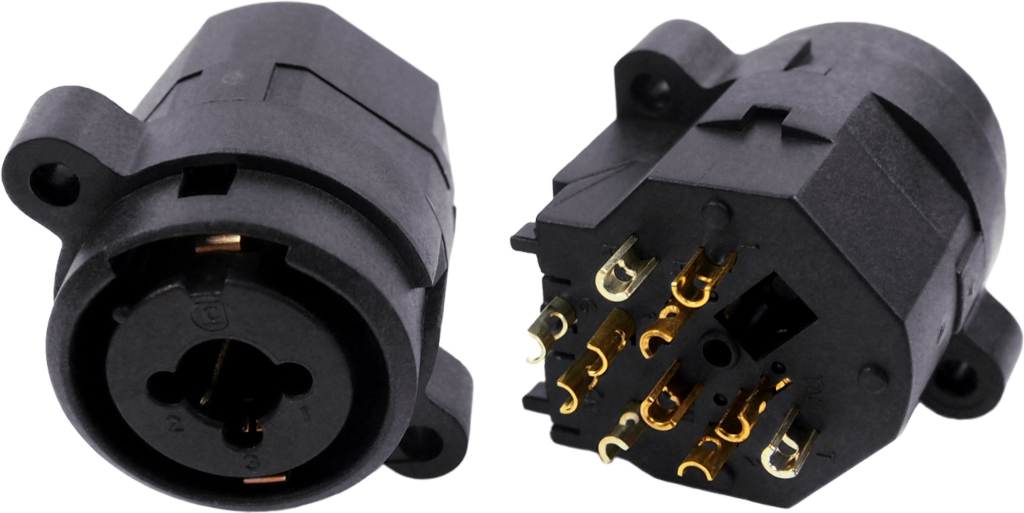

Solder tags with XLR ground screen: FC2490 (stereo jack screened).

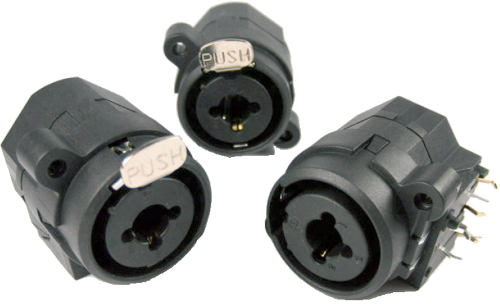

For push latch version add L to end of part code e.g. FC2410L.
For further technical specifications please see the PDF data sheet Combi-Jack - Combined jack and XLR in one body (opens in a new window).
Please contact Cliff™ sales for more information.
