Press Release 19 June 2018

Editorial contact: John Hall +44 (0) 1737 771375





New Cat 6A Feedthrough Connectors

Cliff Electronics adds high speed Cat 6A ethernet connector to its XLR-panel range.





Cliff Electronics has introduced a Cat 6A connector to its popular range of 24mm-diameter, XLR-panel cut-out connectors.



The widely used Cat 6 standard is a long established standardised standardized twisted pair cable and connector configuration for ethernet and other network physical layers. It is backward compatible with the Cat 5/5e and Cat 3 cable standards.

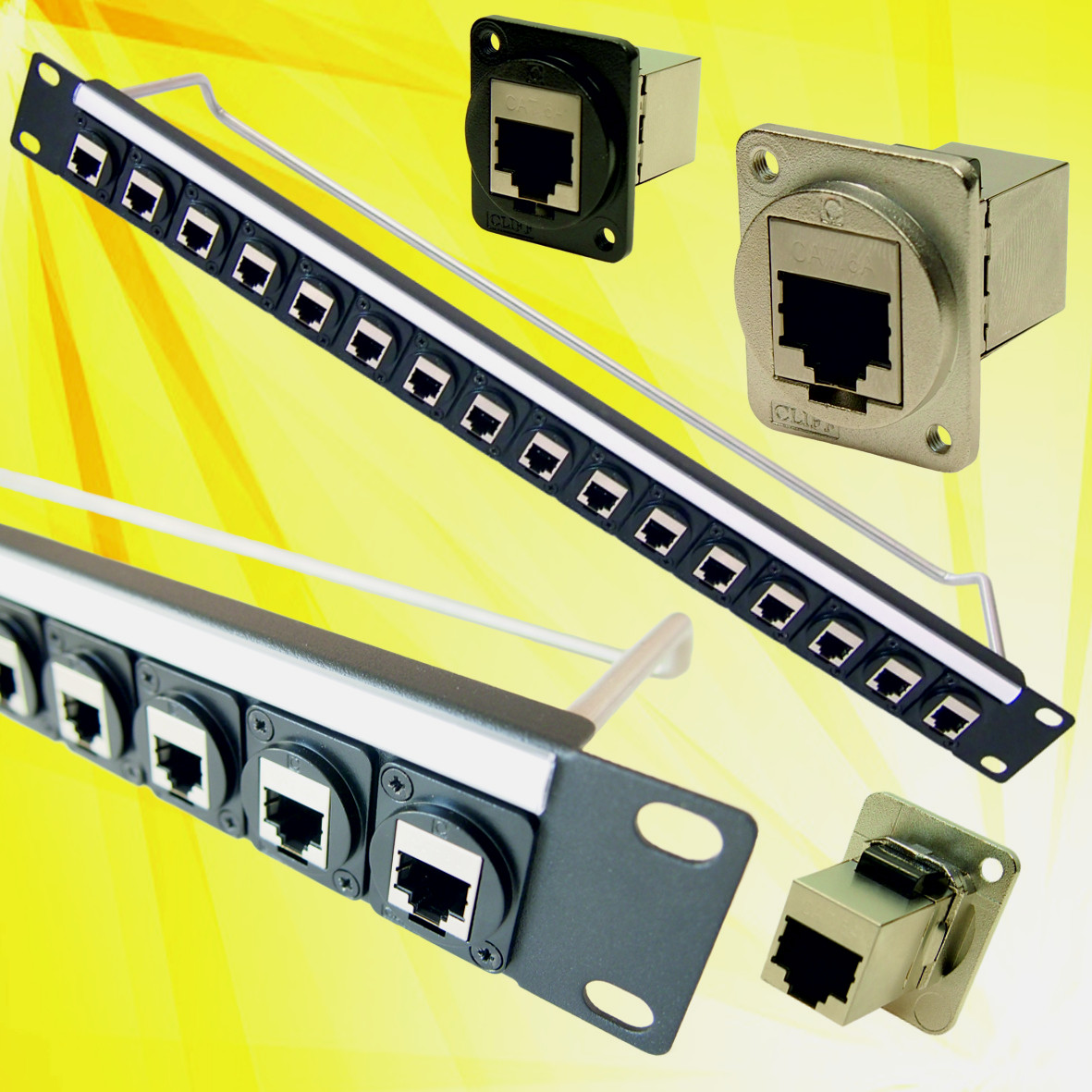

Cliff Cat6A XLR feedthrough connectors and pre-assembled rack.



Cat 6 features more stringent specifications for crosstalk and system noise than earlier Cat 5 and Cat 5e versions. The latest version, Cat 6A (Augmented Category 6) is specified to 500 MHz and has improved crosstalk characteristics allowing 10 Gigabit ethernet (10GBASE-T) to be run for the same 100m maximum distance as previous ethernet variants.





Cat 6A's improved crosstalk allows 10 Gigabit ethernet over 100m.



The new Cliff Cat 6A XLR-format connector is available with a black plastic flange or a more robust cast aluminium aluminum version. It can be bought as a single connecter or pre-assembled in 1U 19″ rack panels with up to 16 XLR-panel cut-outs offering systems integrators simplified assembly, reduced manufacturing time, component count and cost.



The Cliff range of XLR-format standard and feedthrough connectors allows designers to simply integrate audio, video, digital, optical, networking and data feeds into professional equipment for broadcast, lighting, audio, instrumentation and industrial applications.



Cliff’s XLR-format connectors take advantage of the standard 24mm panel cut-out widely used in audio and broadcast systems. This is increasingly popular in instrumentation, medical and industrial applications due to the format’s flexibility, security and reliability.



By utilisingutilizing the XLR chassis and standard panel cut-out, Cliff’s wide range of standard and feedthrough connectors can all be mounted on control panels with the same hole punched for every connector required. This simplifies panel design and allows connectors to be mixed-and-matched during assembly as per individual system requirements.



Available versions include RJ45, HDMI, BNC and USB3.0 compliant single and dual versions. Analogue, digital and optical feedthrough connectivity is available in formats including Firewire, HDMI A-to-A and 50 ohm BNC versions, USB2 A-to-B and B-to-A changer sockets and USB3 to USB3 in various configurations. Also available are popular data and ethernet connectors including LC and SC fibre,fiber, (Duplex and Simplex), UTP and FTP RJ45s in both Cat6 and Cat5e, (shielded and unshielded), TOSLINK and RCA phono.phono/cinch.



black metal Cat 6A ethernet feedthrough connector



John Hall, Managing Director of Cliff Electronics, comments; “Cat 6A offers network installers the ever-faster data transfer rates required by commercial and industrial systems. Our XLR-format Cat 6A allows system integrators to mix and match connector solutions from our wide range of audio, optical, data and power connectors while only having to use one size of panel cut-out. Our wide range of standard and feedthrough connectors simplifies panel design and improves product aesthetics.esthetics..





Cliff Electronics are market leaders in the design, development and manufacture of connectors, leads, test lead sets and accessories for a wide range of markets. They supply major international manufacturers. As a UK manufacturer, Cliff is able to respond quickly to customer needs for both standard products and custom designs. Cliff manufactures audio, optical and power connectors and accessories, general industrial connectors, foot pedals, lighting connectors, terminal posts and connection blocks, motors, fans and assembly aids. Cliff can also provide a wide range of leads including test and instrumentation, audio, instrument and power.



All versions of Cliff XLR-footprint connectors are in full production and available direct or via major worldwide distributors.





Quality design and engineering.      





Cliff exhibiting

Underwriters Laboratories product safety testing and certification Canadian Standards Association Verband der Elektrotechnik- the German association for Electrical, Electronic and Information Technologies British Electrotechnical Approvals Board Japan Electrical Appliance and Material Safety Law (DENAN) from the Japanese Ministry of Economy, Trade and Industry (METI)



Extensive expertise in mouldingmolding and metalwork.



About Cliff Electronics.

Cliff Electronic Components Limited was founded in 1977 to supply the music industry with connectors. Cliff has subsequently greatly expanded its’ products and services to become a high quality supplier to most professional and industrial markets. As both a manufacturer and a distributor, the expansion of its’ product range has established Cliff as a prime source for components. As a UK manufacturer, Cliff is able to respond quickly to customer’s needs for both standard products and custom designs.



Cliff manufactures audio, optical and power connectors and accessories, general industrial connectors, foot pedals, lighting connectors, terminal posts, connection blocks, motors, fans and assembly aids. It can also provide a wide range of leads including audio, instrument and power.



Cliff has extensive expertise in moulding molding and metalwork. It can provide a design, engineering and manufacturing service for the production of customised customized components and assemblies. Plastics expertise includes injection-moulding,injection-molding, blow-moulding,blow-molding, extrusion, sonic-welding and printing. Metalwork includes stamping, machining, aluminiumaluminum extrusion, finishing and printing.



Cliff has the facility to enable assembly, inspection and testing. Cliff’s UK and Far Eastern production plants are certified to ISO 9001 and employ design, engineering, technical, marketing and sales personnel. Quality has always been of prime importance and the majority of Cliff products are covered by approvals from organisations organizations such as UL and VDE.
